INSTRUCTION MANUAL
Model No:
BR2505B5
UPC CODE:
VERNAY 5 IN 1 CRIB
0-65857-17892-0
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace the
part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANC
1-800-295-1980
Fax #: 514-353-7819
www.bertinibaby.com
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Advertisement
Table of Contents
Related Manuals for Bertini BR2505B5
Summary of Contents for Bertini BR2505B5
- Page 1 INSTRUCTION MANUAL Model No: BR2505B5 UPC CODE: VERNAY 5 IN 1 CRIB 0-65857-17892-0 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Future Use
CUSTOMER SERVICE VERNAY 5 IN 1 CRIB If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. -
Page 3: Care And Cleaning
Replace teething rail if damaged or loose (if teething rail is provided for this model). CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM). Infants can suffocate in gaps between crib sides and a mattress that is too small. -
Page 4: Hardware List

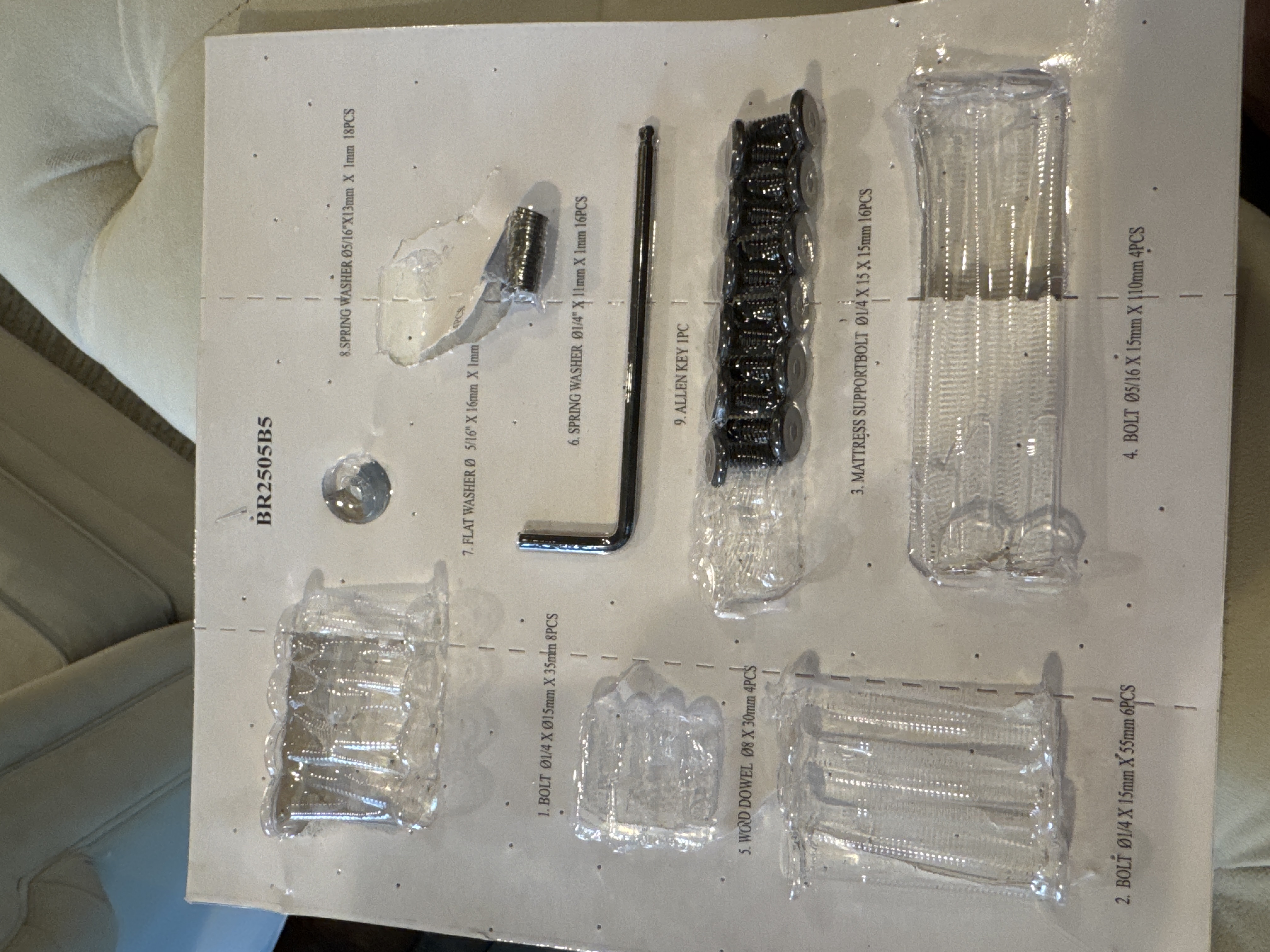

VERNAY 5 IN 1 CRIB BR2505B5 HARDWARE LIST Ø1/4" X 15mm X 35mm Ø1/4" X 15mm X 55mm BOLT BOLT 8 PCS 6 PCS Ø1/4" X 15mm X 15mm Ø5/16" X 15mm X 110mm MATTRESS SUPPORT BOLT BOLT 16 PCS 4 PCS Ø8mm X 30mm... -
Page 5: Parts List
VERNAY 5 IN 1 CRIB BR2505B5 PARTS LIST HEADBOARD RIGHT SIDE PANEL LEFT SIDE PANEL 1 PC 1 PC 1 PC Ø5/16" X 15mm X 110mm FRONT PANEL BOTTOM RAIL MATTRESS SUPPORT 1 PC 1 PC 1 PC BACK BUN FOOT... - Page 6 VERNAY 5 IN 1 CRIB BR2505B5 CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate...
- Page 7 VERNAY 5 IN 1 CRIB BR2505B5 STEP 1 Install back bun feet (G) into the headboard (A) using bolts (4), wood dowels (5), flat washers (7) and spring washers (8). Use Allen key (9) to tighten the bolts. (You may need to use longer side of Allen key to tighten the bolts.)
- Page 8 VERNAY 5 IN 1 CRIB BR2505B5 STEP 2 Attach right side panel (B) and left side panel (C) to the headboard (A) using bolts (2) and spring washers (8). Use Allen key (9) to tighten the bolts.
- Page 9 VERNAY 5 IN 1 CRIB BR2505B5 STEP 3 Attach mattress support (F) to the side panels (B & C) with mattress support bolts (3) and spring washers (6). Use Allen key (9) to tighten the bolts. CORRECT CORRECT Tabs on corners of "THIS SIDE UP"...
- Page 10 VERNAY 5 IN 1 CRIB BR2505B5 STEP 4 Install front bun feet (H) into the front panel (D) using bolts (4), flat washers (7) and spring washers (8). Use Allen key (9) to tighten the bolts. (You may need to use longer side of Allen key to tighten the bolts)
- Page 11 VERNAY 5 IN 1 CRIB BR2505B5 STEP 5 Attach front panel (D) to the side panels (B & C) with bolts (1) and spring washers (8) as shown. Use Allen key (9) to tighten the bolts.
- Page 12 VERNAY 5 IN 1 CRIB BR2505B5 WARNINGS: * ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM). * The toddler bed or day bed is not intended for children under 15 months of age or over 50 lbs (22.7 kgs).
- Page 13 VERNAY 5 IN 1 CRIB BR2505B5 FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD ONLY) NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1 Attach a metal bedframe (not included) to the headboard (A) to convert your crib into a full size bed using the headboard only.
- Page 14 VERNAY 5 IN 1 CRIB BR2505B5 FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD AND FOOTBOARD) NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1 Attach standard size metal bedrails (not included) to headboard (A) and front panel (D) to convert your crib into a full size bed.
- Page 15 VERNAY 5 IN 1 CRIB BR2505B5 Convert your Vernay 5-in-1 Crib into a toddler bed with the Vernay Toddler Bed Conversion Rail ( model number BR2505-5/ ITEM# 541683 ) sold separately. Convert your Vernay 5-in-1 Crib into a full size bed with the Vernay Wooden Bed Rails (model number BR2505-8 / ITEM# 541624 ), sold separately.
- Page 16 VERNAY 5 IN 1 CRIB BR2505B5 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 17 VERNAY 5 IN 1 CRIB Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819 Request Date: Name:...
