Paradox Hellas S.A. Matrix2000 Installation & Operation Manual

Advanced analog fire alarm control panel repeaters 4-24 zones

Advertisement

Quick Links

Matrix2000
Installation & Operation Manual - CPD
Advanced Analog Fire Alarm Control Panel
Repeaters 4 – 24 Zones
Repeaters
Version: 1.0
Revision: 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paradox Hellas S.A. Matrix2000

  • Page 1 Matrix2000 Repeaters Installation & Operation Manual - CPD Advanced Analog Fire Alarm Control Panel Repeaters 4 – 24 Zones Version: 1.0 Revision: 0...
  • Page 2 IMPORTANT INFORMATION Limitation of liability It is mandatory that Matrix2000 repeater be installed in accordance with this manual, applicable codes, and the instructions of the Authority Having Jurisdiction. The manufacturer shall not under any circumstances be liable for any incidental or consequential damages arising from loss of prop- erty or other damages or losses owing to the failure of products beyond the cost of repair or replace- ment of any defective products.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Components Description 1.1 Components identification 2. General Description 3. Installation 3.1 Installation checklist 3.2 Installing the cabinet 4. Keyboard Indications and Controls 4.1 Central Electric Keyswitch 5. Micro switches SW1 6. Communication modules connection 6.1 MRS232/485 communication module 6.1.1 Components Identification 6.1.2 General Description 6.2 MRTCP-IP communication module...
  • Page 5: Components Description

    Secondary power source for repeaters installed far away from the Ma- trix2000 fire alarm panel. 4-wire bus connector to main board: Connects the repeater with the Matrix2000 fire alarm panel. JP7: 3-pin header for selecting power source (via the 28VDC bock connector or via 4-wire Vbus connector).
  • Page 6: General Description

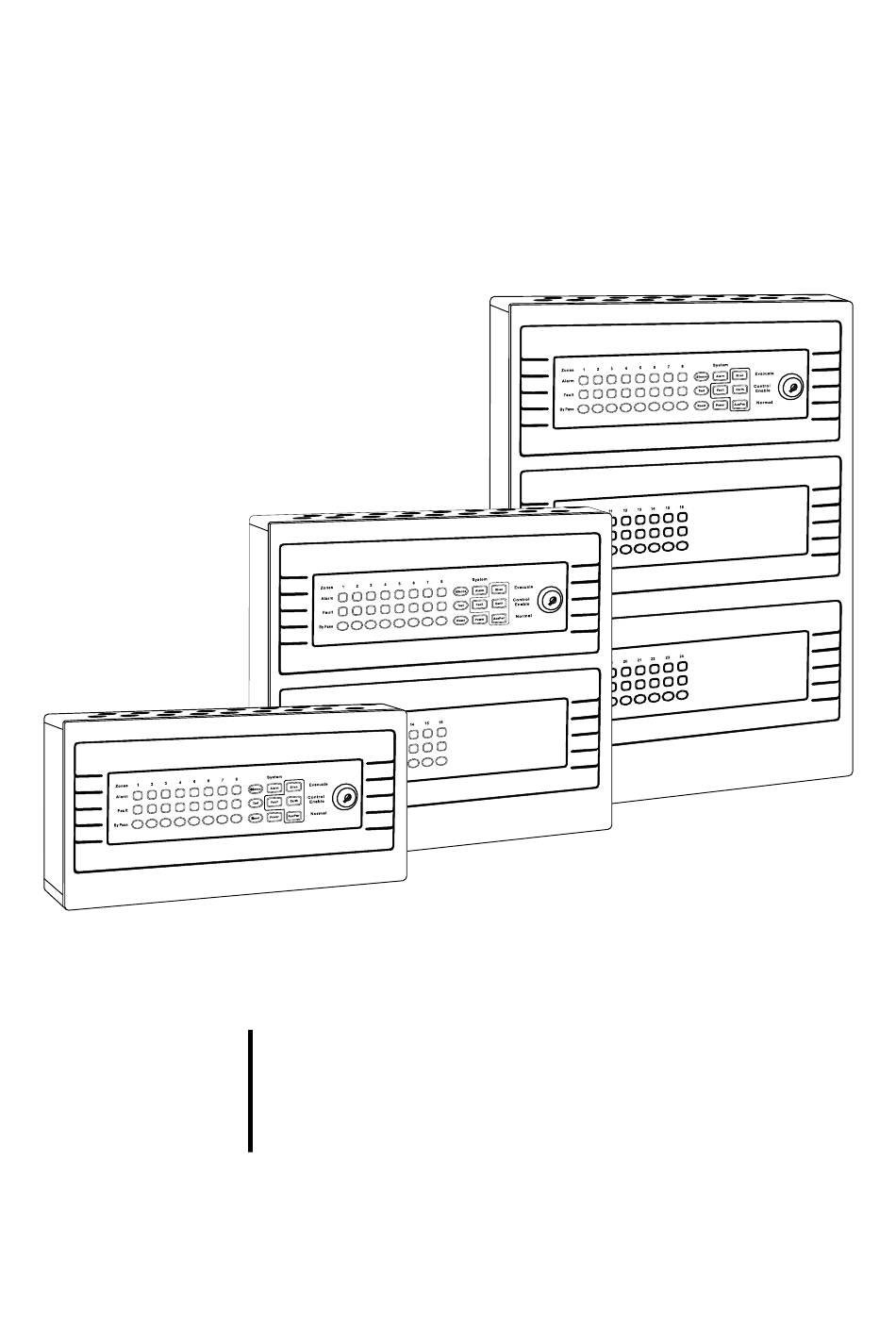

    2. General Description Matrix2000 repeaters have been designed to provide a remote indication and operation of the Matrix2000 fire alarm panels of 4 to 24 zones. There are six (6) basic models for the Matrix2000 repeaters: Model Zones MATRIX RPT 4Z...
  • Page 7: Keyboard Indications And Controls

    Access to level 2 is achieved by the keyswitch on the face of the panel. Operations at access level 2 are performed with the keypad. Access level 3 operations are accomplished with the micro switches on the main circuit board of the Matrix2000 fire alarm panel. Figure 3. Repeater’s keyboard Matrix2000 repeaters...
  • Page 8: Central Electric Keyswitch

    The key from the Keyswitch can be removed only when the keyswitch is in the Normal position. For additional information please refer to Matrix2000 Installation & Operation manu- 5. Micro switches SW1 Up to 7 repeaters may be connected to the Matrix bus. Each connected repeater must have a unique address from 1 to 7.
  • Page 9: Communication Modules Connection

    6.1.1 Components Identification Figure 5. MRS232/485 communication module Connector “FROM MAIN BOARD”: Connects the MRS232/485 module with the Matrix2000 fire alarm panel’s main board via flat cable. JP2: 2-pin header for 485 line termination. 4-wire bus connector to main board: Connects the MRS232/485 module with the Matrix2000 fire alarm panel.
  • Page 10: General Description

    ViewMatrix Figure 6. MRS232/485 module connection diagram This module also provides the Matrix2000 panels the ability to connect to a local PC through it’s serial port. Monitoring and control of the system from a PC can be performed with the aid of specially developed software (ViewMatrix) running under Microsoft’s Win- dows.
  • Page 11: General Description

    6.2.2 General Description The MRTCP-IP module connects directly to the main board of the Matrix2000 panel. Provides full access and control of the panel either locally via RS485 serial connection to repeaters or via internet (TCP/IP) to any PC running the specially designed software ViewMatrix in real time.
  • Page 12: Appendix A: Panel Specifications

    28 VDC Secondary power 28 VDC supply Temperature: -2 to 45 °C (32 to 120 °F) Environmental Humidity: 5 to 95% RH, non condensing Terminal rating All terminals rated for 12 to18 AWG (0.75 to 2.5 sq mm) Matrix2000 repeaters...
  • Page 13 Matrix2000 Fire Alarm Control Panel Operating Instructions RESPONDING TO ALARM SIGNALS Installed by Evacuate the area. Name: Notify the proper authorities immediately Company: and state the nature and location of the emergency. Address: Be prepared to provide directions to fire- fighters when they arrive.
  • Page 14 ZONES DESCRIPTION Zone 1:______________________________________________________________________ Zone 2:______________________________________________________________________ Zone 3:______________________________________________________________________ Zone 4:______________________________________________________________________ Zone 5:______________________________________________________________________ Zone 6:______________________________________________________________________ Zone 7:______________________________________________________________________ Zone 8:______________________________________________________________________ Zone 9:______________________________________________________________________ Zone 10:______________________________________________________________________ Zone 11:______________________________________________________________________ Zone 12:______________________________________________________________________ Zone 13:______________________________________________________________________ Zone 14:______________________________________________________________________ Zone 15:______________________________________________________________________ Zone 16:______________________________________________________________________ Zone 17:______________________________________________________________________ Zone 18:______________________________________________________________________ Zone 19:______________________________________________________________________ Zone 20:______________________________________________________________________ Zone 21:______________________________________________________________________ Zone 22:______________________________________________________________________...
  • Page 16 Document Part Number: MATRIXREP-IEN1, CPD version 1.0, revision 0 - March 2013...
