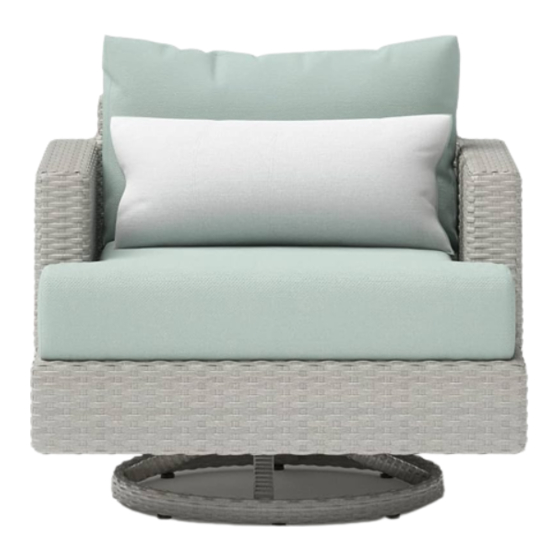

Motion club chair

Advertisement

®
Portofino
Comfort
Motion Club Chair
Model: OP-PECLB2M-PORIII
ASSEMBLY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE.
READ CAREFULLY.
For assistance with assembly or customer service,
call 1-877-924-2090 (English) Monday-Friday, 8 a.m. to 5 p.m. Mountain
Time, North America. Email: customerservice@rstbrands.com or visit
our website at www.rstbrands.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portofino OP-PECLB2M-PORIII and is the answer not in the manual?

Questions and answers

Summary of Contents for RST Portofino OP-PECLB2M-PORIII

  • Page 1 ® Portofino Comfort Motion Club Chair Model: OP-PECLB2M-PORIII ASSEMBLY INSTRUCTIONS IMPORTANT, RETAIN FOR FUTURE REFERENCE. READ CAREFULLY. For assistance with assembly or customer service, call 1-877-924-2090 (English) Monday-Friday, 8 a.m. to 5 p.m. Mountain Time, North America. Email: customerservice@rstbrands.com or visit our website at www.rstbrands.com...
  • Page 2 PARTS LIST PICTURE PART DESCRIPTION QTY. Chair Base Metal plate Bolt (M8 x 45) Washer (016 *08.4*1.6) Lock washer (08.1*2.1*H4.2) (M8) Wrench...
  • Page 3 ATTACH BASE TO CHAIR 1. Place the metal plates (C) on the top of the chair frame (A) and below the support plate on the chair base (B). Step 1. 2. Attach the chair (A) to the base (B) feeding bolts (D) and washers (E) through the top of the chair frame, and securing with washers (E), lock washers (F), and nuts (G) from the bottom of the chair base.
  • Page 4 FABRICS Wipe off spills with a cloth and water. RST Brands uses Sunbrella® fabrics designed to protect and last for several years. Sunbrella fabrics are treated with a proprietary water and stain repellent.
