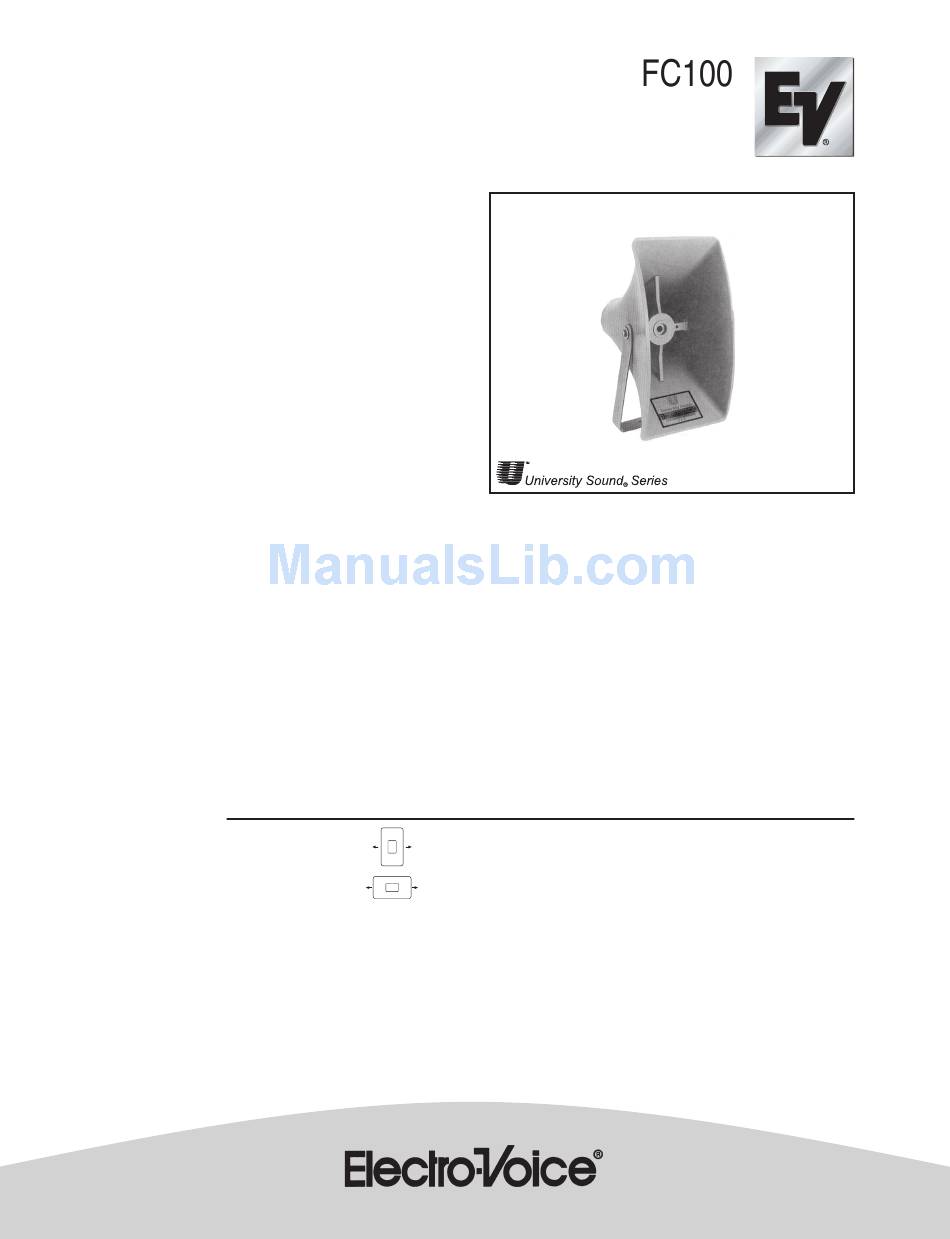

Electro-Voice FC100 Specifications

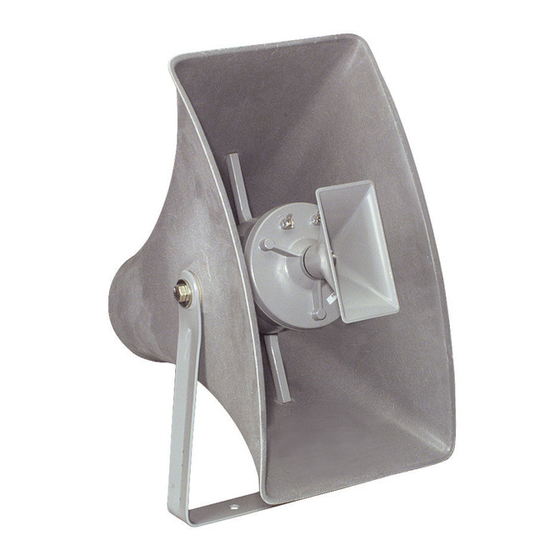

General Product Description
The Electro-Voice FC100 consists of two horn sections for
use with 1828C or 1829 model drivers to form a wide-range,
integrated system.
The folded construction of the rear horn coupled with the
smaller dimensions of the front horn, present a 1,000 Hz
acoustic crossover. This separation of frequencies provides
a more extended frequency response and cleaner sound.
The 150 degree horizontal by 110 degree vertical dispersion
pattern is beneficial in many applications requiring a wide
coverage pattern. Fur thermore, excellent loading is
maintained to a low-frequency cutoff of 260 Hz.
Architects' and Engineers' Specifications
The horn shall be the compound diffraction type with outer
housing of fiberglass, a zinc diecast front horn and phenolic-
constructed inner horns.
The low-frequency horn will be 52.0 cm (20.5 in.) high by
26.5 cm (10.5 in.) wide and 51.0 cm (20.0 in.) deep, not
including a driver. Net weight (less driver) shall not exceed
4.9 kg (10.8 lb).
A separate high-frequency horn shall be provided, capable
of individual rotation. The acoustical crossover shall be 1,000
Hz.
Specifications:
Horizontal Beamwidth:
150° @ 2 kHz (see Figure 2)
Vertical Beamwidth:
110° @ 2 kHz (see Figure 2)
Directivity Factor R θ (Q):
5.2 @ 2 kHz
Usable Low-Frequency Limit:
260 Hz
Construction:
Large fiberglass compression molding with gray finish, front
horn of gray diecast zinc and phenolic compresion-molded
inner horns with steel "U" bracket.
Compound
Diffraction Horn
The loudspeaker shall be capable of satisfactory mechanical
performance in the temperature range from -40°C (-40°F) to
+71 °C (+161 °F) not subject to sunlight embrittlement and
resistant to damage from weather, moisture, and fungus.
A steel swivel bracket capable of either vertical or horizontal
installations and a variety of adjustments is provided. The
Electro-Voice FC100 is specified.
Mechanical Construction of Driver:
Threaded metal throats to accept a screw-in compound driver
with a throat opening of 0.7 inch to 1.0 inch diameter and a
standard 1 3/8-inch thread.
Dimensions:
Height: ........................................................ 52.0 cm (20.5 in.)
Width: ......................................................... 26.5 cm (10.5 in.)
Depth: ......................................................... 50.0 cm (20.0 in.)
Net Weight: ............................................................ 4.9 kg (10.8 lb)
Shipping Weight: ................................................... 5.4 kg (11.8 lb)
Recommended Horns:
1828C 1828T
1829B 1829BT
