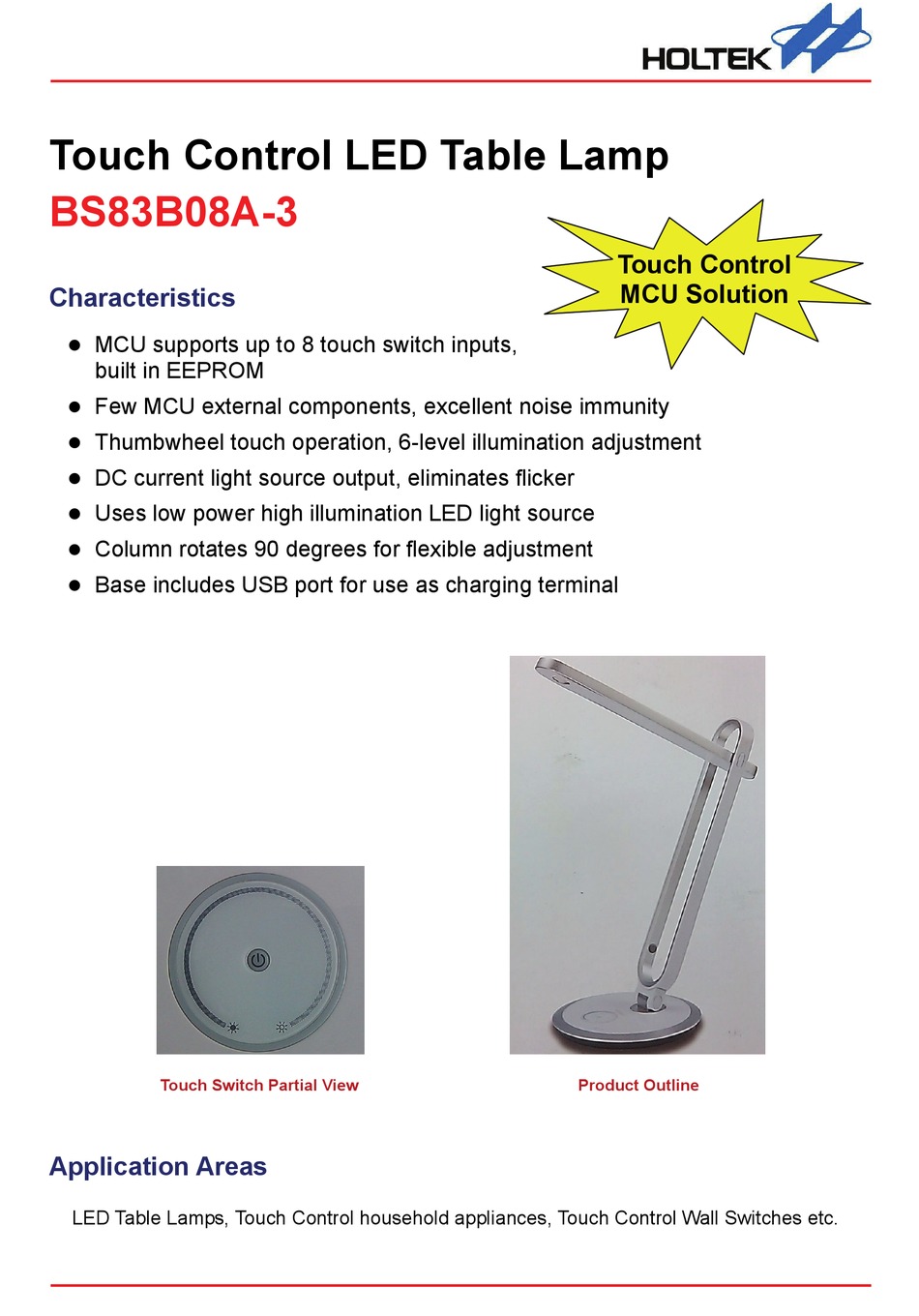

Touch Control LED Table Lamp
BS83B08A-3
Characteristics
MCU supports up to 8 touch switch inputs,
built in EEPROM
Few MCU external components, excellent noise immunity
Thumbwheel touch operation, 6-level illumination adjustment
DC current light source output, eliminates flicker
Uses low power high illumination LED light source
Column rotates 90 degrees for flexible adjustment
Base includes USB port for use as charging terminal
Touch Switch Partial View
Application Areas
LED Table Lamps, Touch Control household appliances, Touch Control Wall Switches etc.
Touch Control
MCU Solution
Product Outline
Advertisement
Table of Contents
Summary of Contents for Holtek BS83B08A-3
- Page 1 Touch Control LED Table Lamp BS83B08A-3 Touch Control MCU Solution Characteristics MCU supports up to 8 touch switch inputs, built in EEPROM Few MCU external components, excellent noise immunity Thumbwheel touch operation, 6-level illumination adjustment DC current light source output, eliminates flicker ...
- Page 2 Application Circuit Power supply Circuit Wheel Touch Key Touch MCU BS83B08A-3 Operation Manual Plug the AC / DC adapter into the power socket Connect the DC plug to the LED table lamp socket Switch on the power, touch the base sense area and the LED table lamp will ...
