Summary of Contents for CRAFTOP GHW2900A

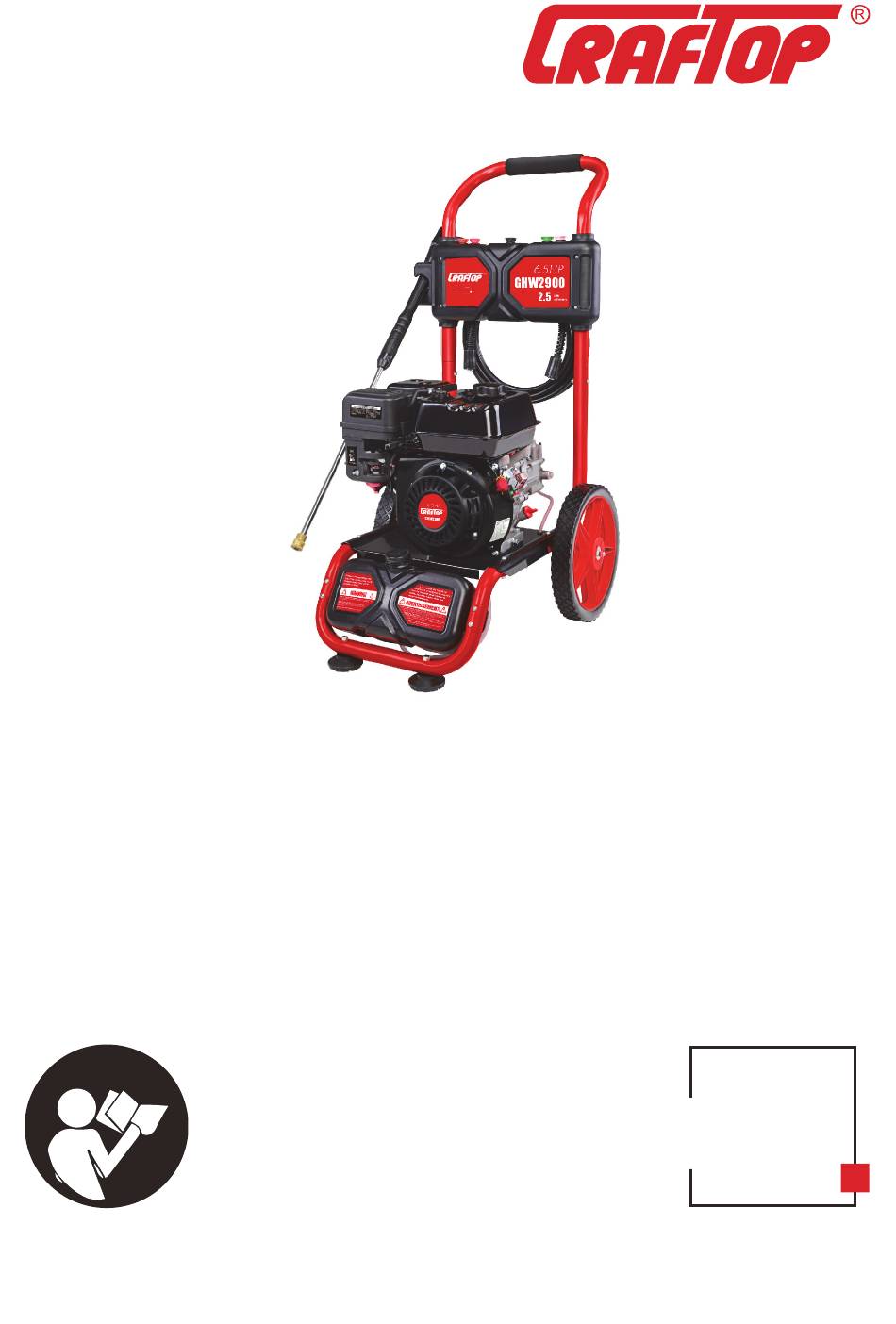

- Page 1 Owner’s Manual High Pressure Washer GHW2900A EXPERTS IN EQUIPMENTS OF GARDENING AND AGRICULTURE ENGLISH VERSION: 01-202106...
- Page 2 We thank you for buying CRAFTOP High Pressure Washer This high pressure washer provides advanced technology in incorporating many convenient features for you to perform your daily cleaning work. Before attempting to use this high pressure washer, please read this manual carefully until you completely understand and can follow all safety rules, precautions, operating and maintenance instructions.
-
Page 3: Table Of Contents
Guide to use this manual information. Waning or Alert! This User’s Manual refers to a CRAFTOP high pressure washer, also called a machine in this User’s Manual. Special safety precautions must be observed when working with this information,... - Page 4 Respiratory protection required. Risk of injections. Wear proper respiratory protection To reduce the risk of injection or protect from chemical injury, never direct a water stream solvents, aerosols, oils, mold, and towards people or pets or place any other more harmful airborne body part in the stream.
-
Page 5: Product Overview
Product overview... - Page 7 Index Part Name Description Handle It is used to maneuver the machine when transporting by hands. Trigger Locking Latch It is used to prevent from accidental operation or spraying accidentally. Spray Trigger Squeeze it to spray pressure water out; and, release it to stop. Spray gun holster Used to place the spray gun on the machine when not in use.
- Page 8 Index Part Name Description Recoil Starter This is used to start the engine. Recoil Starter Rope It is used to pull the starter rope. Handle Fuel Tank 3.8L capacity. Fuel Cap Ensure fuel cap is tightened securely during operation. Regulates the flow of fuel to the engine. Must be fully open before starting Fuel Valve the engine.
-
Page 9: Technical Specification
Technical specification MODEL GHW2900A Item Description Unit Specification Product dimension (L x W x H) in(mm) 30x20x41(760x495x1045) Net weight lbs(kg) 73(33) Overall Maximum water flow rate ︒C Application temperature 5~50 Type 4 stroke gasoline engine Displacement Engine Power (OHV) Starter... -
Page 10: Safety Precautions And Instructions
In the absence of such information, • All electrical conductors and communications wires CRAFTOP does not recommend the use of this can have electricity flow with high voltages. This machine by anyone who has a pacemaker. machine is not insulated against electrical current. - Page 11 and burning sensations, followed by loss of color and Hands protection. numbness in the fingers. The following precautions are Always wear appropriate gloves strongly recommended: when handle chemical • Keep your body warm, especially the head, neck, detergent or operate high pressure hands, wrists, ankles and feet, ,.
- Page 12 Use only a spark plug type which is approved by well-ventilated outdoor area. Never start or run the CRAFTOP and make sure it is in good condition. engine inside a closed room or building. Exhaust fumes contain dangerous carbon monoxide.
- Page 13 When transporting your high pressure washer in a Connect to water supply vehicle, properly secure the machine to avoid turnover, fuel spillage and damage. Do not connect the pressure washer directly to a potable water system. Handle fuel with caution If hooking up the pressure washer to a potable water system, a backflow preventer must be installed You high pressure washer use a unleaded gasoline for...
- Page 14 • to a complete stop before removing obstructions, Check that the spark plug boot is securely mounted clearing debris, or servicing unit. on the spark plug. If a loose boot may cause arcing which could ignite combustible fumes and cause a fire.
- Page 15 • • Do not overreach. Keep proper footing and balance at Work calmly and carefully in daylight conditions and all times. Special care must be taken in slippery only when visibility is good. Stay alert so as not to conditions and when working on slopes or uneven endanger others.
-
Page 16: Assembly
Assembly Your pressure washer requires some assembly. This machine ships from our factory without engine oil. It must be properly serviced with fuel and oil before operation. If you have any questions regarding the assembly of your pressure washer, please contact local authorized dealer or service center. - Page 17 Unpack pressure washer 1. Set the shipping carton on a solid, flat surface. 2. Remove bubble wrap other packaging materials. 3. Remove all parts from the box except the pressure washer. 4. Carefully cut each corner of the box from top to bottom.
-
Page 18: Engine Oil
6. If the oil level is just at MIN marker or below, refill Engine oil SAE 10W-30 oil through the dipstick hole until the oil level is between MIN and MAX marker. NOTICE New pressure washer has no engine oil in crankcase when they are delivered out of factory. -
Page 19: Detergent
• Do not use powdered soaps which clog the injection Take care when handling gasoline. Avoid direct system. contact with the skin and avoid inhaling fuel vapor. Fueling NOTICE Working with a detergent ensures quick soaking of the 1. Before fueling, clean the filler cap and the area dirt, and allows the high-pressure water to penetrate around it to ensure that no dirt falls into the fuel and remove the dirt more effectively. -
Page 20: Preparation
Cleaning with detergents 9. Check there is no leakage of oil, fuel, or water. 10. Double-check and observe all safety precautions • When using detergent, always use the black and instructions in this manual prior to starting the detergent nozzle. machine. -
Page 21: Start And Stop The Engine
Connect the garden hose to pump 1. Align one end threaded fitting on the hose with the inlet on pump. Assume another end threaded fitting on the hose has already been connected with the source of water supply, cold water only. 2. -
Page 22: Operation
Do not pull out the starter rope all the way, otherwise it Never start or stop the pressure washer unless the might break. water supply is turned on. Do not let the starter rope snap back by itself. Guide it WARNING slowly back into the housing, so that the starter rope can rewind properly. -
Page 23: Working Techniques
information When moving the engine throttle to the minimum (rightmost), the output power of engine is low. Please don’t operate the machine, if not, the machine will be flameout stop due to low engine output power. Working techniques This section describes basic working technique with safety rules for using a high pressure washer to perform your cleaning work. -
Page 24: Maintenance And Care
Maintenance and care Maintenance schedule IMPORTANT! Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. System / Component Maintenance Procedure Visual inspection √ (Condition, leak) Complete machine √ √ Clean Engine switch, Throttle lever, √... - Page 25 WARNING Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all moving attachments. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit.
- Page 26 Change engine oil NOTICE Change engine oil when the engine is warm. 1. Place the pressure washer on a flat level surface. 2. Turn off the engine 3. Place an oil pan under the drain oil port. 4. Clean the oil gauge dipstick/cap and the area around it to ensure that no dirt falls into the crankcase.
-
Page 27: Repair
Repair Users of this machine should only carry out the maintenance and service work described in this user’s manual. CRAFTOP recommends that other repair work be performed by authorized dealer and service center using genuine CRAFTOP replacement parts. Storage 7. -
Page 28: Disposal
Observe all country-specific and local waste disposal 4. Reposition the carburetor drain hex screw once the rules and regulations. fuel is completely drained. CRAFTOP products must not be thrown in the garbage bin. Take the machine, accessories and packaging to -26-... - Page 29 an approved disposal site for environment friendly recycling. Dispose of all packing material in an environmentally responsible manner. Contact your local recycling center or factory to dispose used engine oil in a proper way. DANGER Plastic bags can be a danger to young children, dispose of immediately! Contact your local authorized dealer or service center for the latest information on waste disposal.
-
Page 30: Troubleshooting Guide
Troubleshooting guide DANGER Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result. Problem Cause Solution 1. Low-oil shutdown 1. Fill engine with SAE 10W-30 engine oil Engine will not start (or 2. - Page 31 WWW.CRAFTOP.COM...
