Electro-Voice Variplex II Installation Instructions

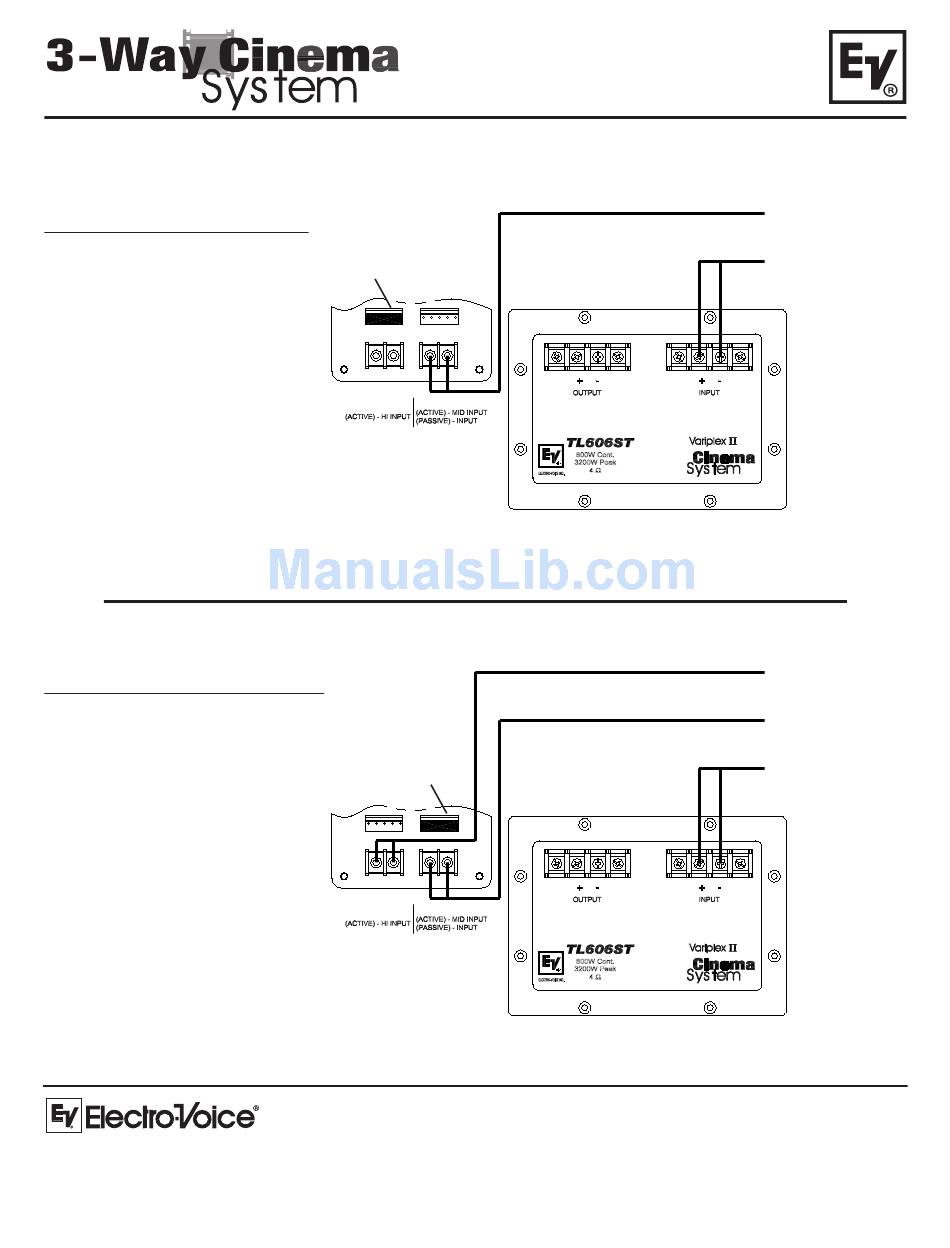

Biamp: Two Amp Channel System
Step 1 - Place jumper in "Passive Mode" on
Variplex horn input panel
Step 2 - Connect LF amp channel to "Input" on
TL606ST input panel
Step 3 - Connect Mid/Hi amp channel to "Passive
Mode" on Variplex horn
Triamp: Three Amp Channel System
Step 1 - Place jumper in "Active Mode" on
Variplex horn input panel
Step 2 - Connect LF amp channel to "Input" on
TL606ST input panel
Step 3 - Connect Mid amp channel to "Active Mid
Input" on Variplex horn
Step 4 - Connect High amp channel to "Active HF
Input" on Variplex horn
12000 Portland Avenue South, Burnsville, MN 55337
Phone:952/884-4051, Fax:952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 1/2004
Part Number 38110-336 Rev A
Jumper in Passive Mode
Jumper in Active Mode
U.S.A. and Canada only. For customer orders, contact Customer Service at:
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
Other International locations. For customer orders, contact Customer Service at:
For warranty repair or service information, contact the Service Repair department at:
Variplex II
Crossover Installation
Instructions
800/392-3497 Fax: 800/955-6831
+ 49 9421-706 0 Fax: + 49 9421-706 265
+ 1 952 884-4051 Fax: + 1 952 736-4212
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
TM
To Amp (500 Hz - 20 kHz)
Mid/HF
To Amp (20 Hz - 500 Hz)
LF
To Amp (1.25 kHz - 20 kHz)
HF
To Amp (500 Hz - 1.25 kHz)
Mid
To Amp (20 Hz - 500 Hz)
LF
