M00432 - SEGMENTED
ASSEMBLY
OPERATION
MAINTENANCE
REPLACEMENT PARTS
QUALITY STANDARD FEATURES MAKE THE DIFFERENCE
• Bottom Center Honey Drain
• 16 Gauge 304 Stainless Steel Tank
• Electronic Automatic Advancing
Speed Control
• All Welded Tank Construction
The Dadant Radials are constructed of food-ap-
proved, gleaming stainless steel. These automati-
cally advancing extractors come equipped with
a newly designed speed control unit which can
be set to automatically increase extracting speed
over a fixed period of time or can be operated
manually. If the honey is fresh, light, and warm,
it requires less time to extract and a faster cycle

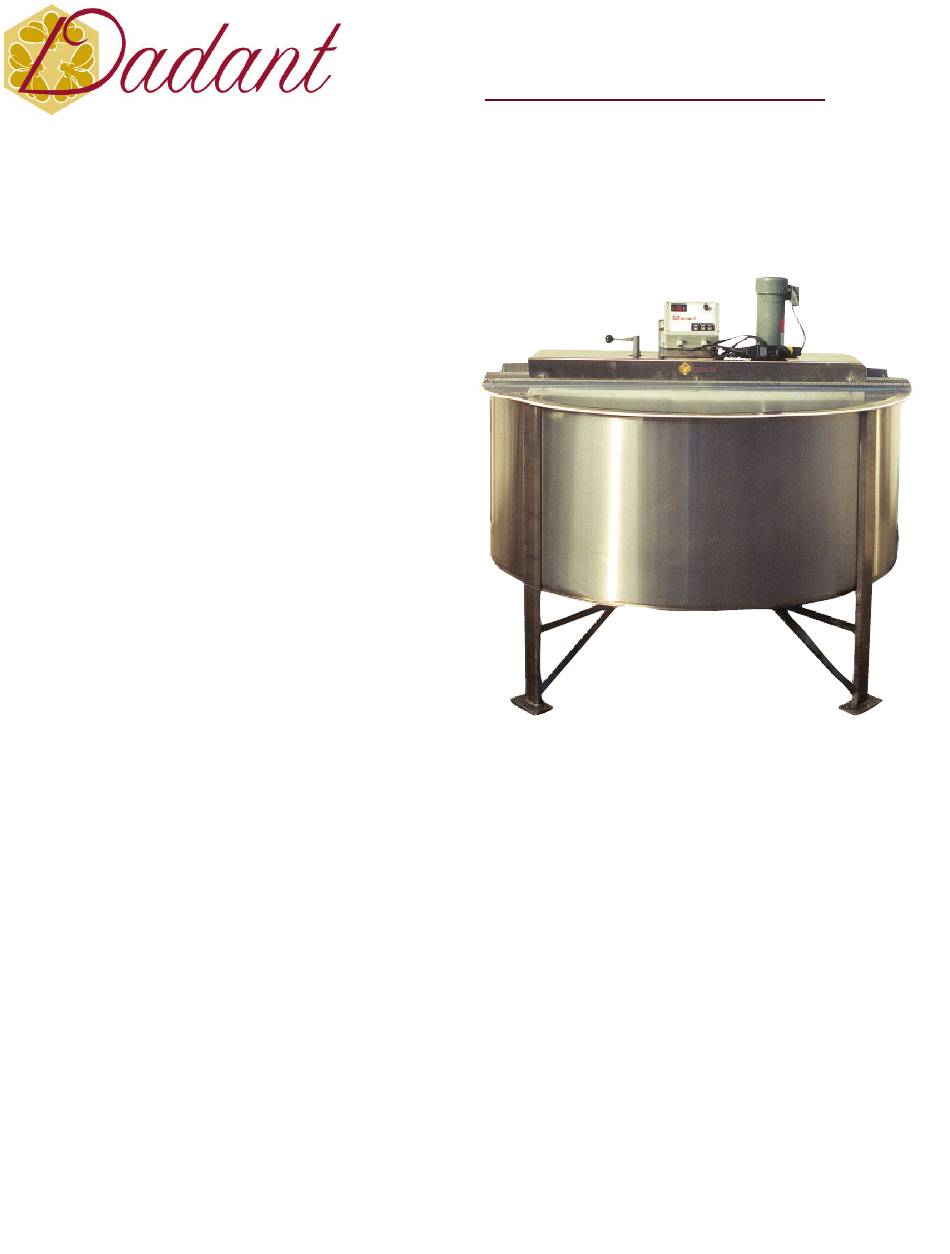

84-FRAME EXTRACTOR
CORPORATE OFFICE
51 S. 2nd Street, Hamilton, IL 62341
Ph. 217-847-3324 Toll Free 1-888-922-1293
M00452 - SMOOTH
• Durable Reinforced Leg Structure
• 3/4 HP DC Motor
• Heavy Duty Stainless Steel Fabricated
Reel
time can be set. If the honey is cold and heavy,
the speed control is easily adjusted for a longer
cycle of extracting time. Stop switch allows the
machine to be stopped at will. All moving parts
are enclosed for safety. Top channel and cover
system designed to keep dirt and water out of the
extractor. Extremely quiet, easy-to-run with the
built-in brain. Ready to plug in and extract.
Advertisement
Related Manuals for Dadant M00432
Summary of Contents for Dadant M00432
- Page 1 Speed Control Reel • All Welded Tank Construction The Dadant Radials are constructed of food-ap- time can be set. If the honey is cold and heavy, proved, gleaming stainless steel. These automati- the speed control is easily adjusted for a longer cally advancing extractors come equipped with cycle of extracting time.
- Page 2 M00432 84-Frame Extractor, Segmented Reel M00452 84-Frame Extractor, Smooth Reel Fully Automatic Speed Superior Quality Tank Manual Hand Brake Control And DC Motor •62’’ tank diameter with Hand brake provides a positive •Two modes of operation reinforced tank top. means of slowing and stop- (manual and automatic).
-
Page 3: Installation
Dadant is pleased to provide you with the latest in electronic speed controls. The control on your extractor is the product of over three years of development and testing and is designed for only one purpose—controlling honey extractors. Please read all remaining instructions carefully before using the control. - Page 4 However, for your right for your extracting conditions. For assistance, call your particular extracting job, a different operation characteristic local Dadant Branch Manager. may be desired. For “average” operation, the selector switch is set on “B” for To select a different operating characteristic, remove the six a 30-frame, on “E”...
- Page 5 60-FRAME RADIAL EXTRACTOR Example 1 —A Honey Master being used to extract colder heavier honey might be “throwing” some combs on a “D” setting. Since slower acceleration is indicated “6” would be a proper selection. An “A” could also be a good choice in order to slow both acceleration and top speed.
-
Page 6: Specifications
Replacement Parts 60 Frame Radial Extractors M00430 60-Frame Radial Extractor M00450 60-Frame Radial Extractor Part Number Description 04-42001 1/2 HP Motor Assembly 04-42002 Brake Cover Washer 04-42003 Motor Cover Washer 04-42004 Belt Guard 04-42006 Motor Mount 04-42010 Brake Post 04-42019 Brake Band w/pin 04-43027 Smooth Replacement Reel, Smooth...
