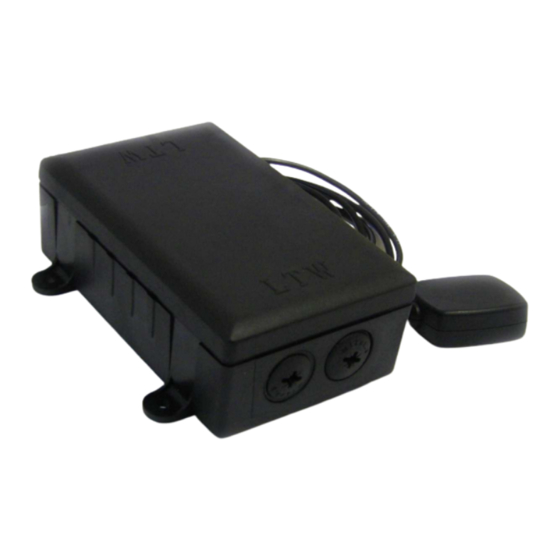

Antrax CarBeacon Manual
  1. Manuals
  2. Brands
  3. Antrax Manuals
  4. Recording Equipment
  5. CarBeacon
  6. Manual

Antrax CarBeacon Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
antrax Datentechnik GmbH
info@antrax.de - www.antrax.de
Manual
25.07.2008
Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CarBeacon and is the answer not in the manual?

Questions and answers

Related Manuals for Antrax CarBeacon

Summary of Contents for Antrax CarBeacon

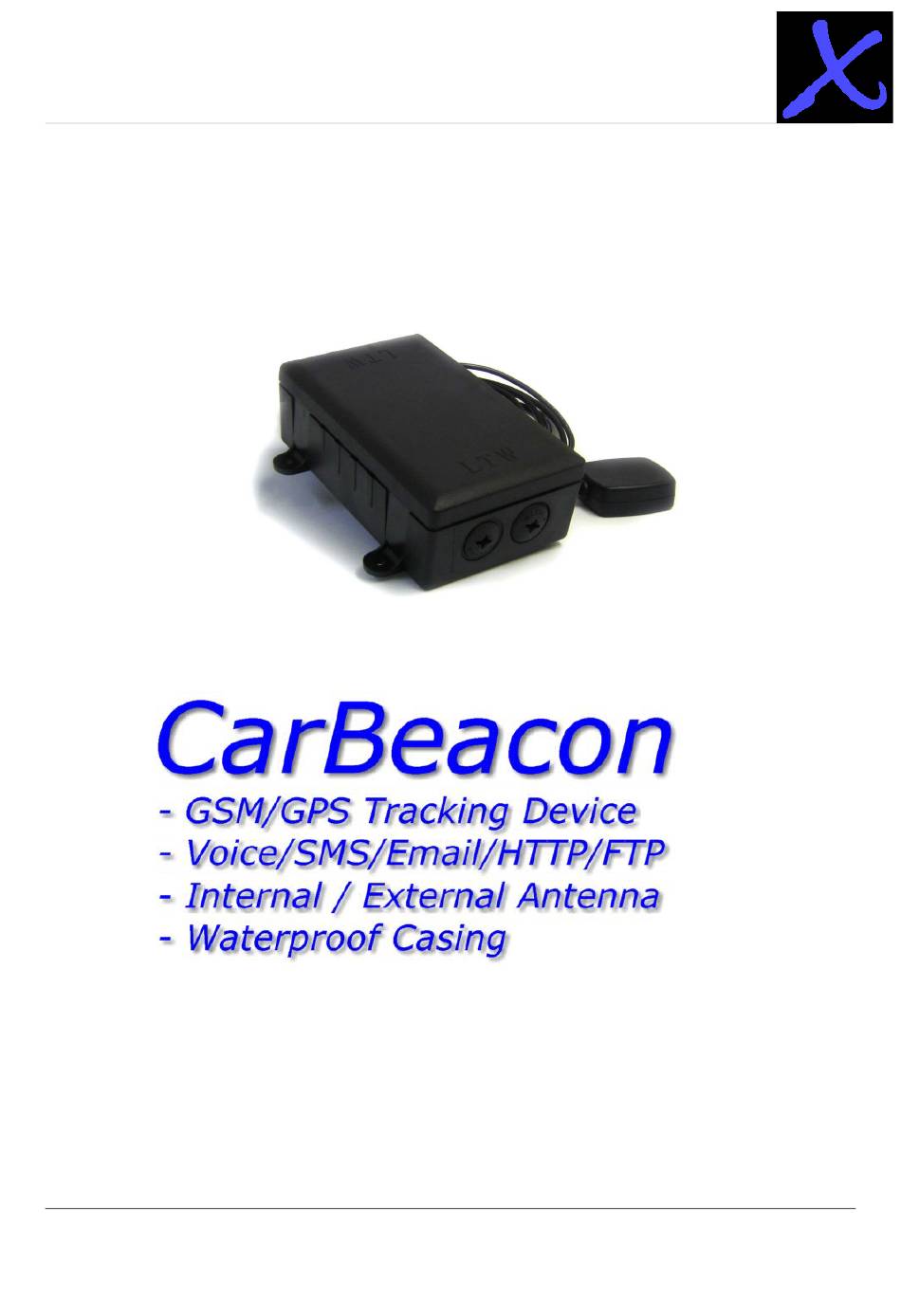

  • Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de Manual 25.07.2008 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 2: Table Of Contents

    ➢ ➢ Send a Parameter-SMS to the CarBeacon ➢ Set a Parameter per SMS ➢ Set a Parameter per HTTP-GET ➢ Send a Command SMS to the CarBeacon ➢ Receive a Parameter-SMS from the CarBeacon ➢ Activation ➢ GPRS-Connection ➢...

  • Page 3: General

    Google Earth) the Terms of Use of the Provider of said material must be adhered to. The use of Links provided with CarBeacon to third party providers or suppliers is the sole responsibility of the user. The following applies to Trade Names and Trademarks used in the text: Windows is a Registered Trademark of the Microsoft Corporation.

  • Page 4: Safety Precautions

    Therefore in principle all safety precautions and measures applicable to mobile telephones apply, especially the following: Do not use the CarBeacon in the vicinity of medical appliances such as Hearing  Aids or Heart Pacemakers. The function of these appliances could be impaired.

  • Page 5: Package Contents

     external Combi-antenna  external Sensors Software Software to control the CarBeacon is not required. Depending upon the chosen  Tracking-Mode though route- and / or analysis software may possibly be required (for instance Google Earth, Google Maps, MS-Autoroute etc.)

  • Page 6: Technical Characteristics

    Datentechnik GmbH info@antrax.de - www.antrax.de Technical Characteristics General Waterproof Casing, Measuring approx. 12 x 7 x 4 cm  No external markings, therefore completely inconspicuous  Usable with internal or external antenna (Mobile Telephony/GPS)  Inputs for additional information such as „Ignition“, „Door Closed“, Movement ...

  • Page 7: Pin Assignment

    Datentechnik GmbH info@antrax.de - www.antrax.de Pin Assignment In the standard configuration the CarBeacon has available a 2 core connecting cable with which the sub-assembly is connected to the power supply. The following allocations apply: white Power Supply (8V...28V) brown...
  • Page 8 Datentechnik GmbH info@antrax.de - www.antrax.de Schematic Structure GSM-Antenna GPS-Antenna SIRFstar III) GSM / GPRS Module DC/DC- Converter Protokoll- Memory In-/Output (optional) Micro-Controller COM-Port (optional) - 8 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 9: Tracking-Modi

    Datentechnik GmbH info@antrax.de - www.antrax.de Tracking-Modi The CarBeacon can function in various configurations. The following configurations are possible: Tracking Name Description GPRS -Modus required TM 1 Standard GPS-Position in clear text send per SMS – (Latitude and Longitude) Send GPS-Position as an SMS for –...
  • Page 10 Datentechnik GmbH info@antrax.de - www.antrax.de The activated Modi will be executed successively, not in parallel, this requires a suitable time-plan to be taken into account. The duration for the dispatch of E-mails depends on the system, for example relatively long (TM10).

  • Page 11: Tracking-Mode "Standard

    Longitude information can be entered directly into and used with Google Earth, Google Maps or other route software. The request for CarBeacon, to send the actual GPS-Position can be via a telephone call (= Voice-Call) or through a command SMS with the content ”GPSsend” .
  • Page 12 Tracking Mode “Standard” ( TM1 ) (GPRS not required) Sequence: User CarBeacon ----------> 1.) Call (Voice-Call from Mobile-phone) at the CarBeacon 2.) SMS-Command to the CarBeacon <---------- 1.) The CarBeacon rejects the call after the second ring 2.) The CarBeacon receives...
  • Page 13 Datentechnik GmbH info@antrax.de - www.antrax.de The Position-SMS sent by CarBeacon contains the following information: CarBeacon ---GPS--- 52 06.4376N Latitude of the actual position 008 39.8609E Longitude of the actual position Speed: 67 km/h Actual speed 03.06.2008 Date of the actual position...
  • Page 14 Datentechnik GmbH info@antrax.de - www.antrax.de Tracking Modue “Standard” ( TM1 ) (GPRS not required) The information for Latitude and Longitude can be entered directly into “Google Earth” or “Google Maps”without conversion. An example for entering the co-ordinates “52 06.4379N, 00839.8609E”...
  • Page 15 “Caller”per SMS . The SMS will be so formatted, that it can be displayed within the program Navigon. (http://www.navigon.de) The demand on CarBeacon, to send the actual GPS-Position can be made per Voice-Call or via a command SMS with the content ”NGsend”. Associated Parameters:...
  • Page 16 - www.antrax.de Tracking-Modus “Standard” ( TM1 ) Sequence: User CarBeacon ----------> 1.) Call (Voice-Call from Mobile-phone) to the CarBeacon 2.) SMS-Command to the CarBeacon <---------- 1.) The CarBeacon rejects the call after the second ring 2.) The CarBeacon receives...

  • Page 17: Tracking-Mode "Trackingphone

    CarBeacon the CarBeacon ascertains the actual GPS-Position <---------- the CarBeacon sends a SMS in the requested Format with the actual location information - 17 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 18: Tracking-Mode "Email-Text

    – 13:00 ...) every 60 Minutes (12:00, 13:00, – 14:00 ...) EMAILTEXTse The CarBeacon sends the actual GPS- Position (once only) per Email. Tracking-Mode 10 must be activated to use this function: TM10 : 1 - 18 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 19 Datentechnik GmbH info@antrax.de - www.antrax.de Necessary for Email-transmission: Parameter Area / Description Example SMTPServer SMTP-Server SMTPServer: post.strato.de SMTPPort SMTP-Serverport [SMTPPort:25] SMTPTo Receiver of the GPS-Position-Email SMTPTo:carb@abc. SMTPFrom Sender of the GPS-Position-Email (with certain providers this must SMTPFrom:yxc@ab agree with the User Name of the c.de...
  • Page 20 Datentechnik GmbH info@antrax.de - www.antrax.de Tracking-Mode “Email-Text” ( TM10 ) (GPRS required) Parameter Area / Description Example SMTPUser User Name for SMTP-Server SMTPUser:yxc@abc SMTPPwd Password for SMTP-Server SMTPPwd:alpha - 20 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 21 Email-Server ----------> CarBeacon sends an Email with the GPS-Position Format of the GPS-Position-Email: Reference: Positiondata from your CarBeacon (358281000035794) From: <yxc@abc.de> Date: Tue, 8 May 2007 13:05:45 +0200 (MEST) To: <carb@abc.de> Actual Position on 08.05.2007 at 11:06:01: 52 06.4434N 00839.8694E GoogleMaps: http://maps.google.de/maps?

  • Page 22: Tracking-Mode "Email-Kml

    The GPS-Positions are in a KML-File which Google Earth can execute. The CarBeacon saves a maximum of the last ten positions with a separation time of one minute in the KML-File. After each transmission of the KML-File the recording starts afresh.
  • Page 23 Requirement for Email transmission: as in Tracking-Mode “Email-Text” (TM10) Sequence: CarBeacon Email-Server ----------> CarBeacon sends an Email with the GPS-Position as KML-File in an attachment - 23 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 24: Tracking-Mode "Track4Free

    In the Tracking-Mode “Track4Free” (TM 20:1) the GPS-Position will be sent per HTTP-GET to the Locating-Portal “www.Track4Free.com”. After login with the IMEI this Portal can track the CarBeacon free of charge. Caution: A connection to the Server will only then be made, when the GPS-Position is valid.
  • Page 25 Datentechnik GmbH info@antrax.de - www.antrax.de Before this Tracking-Mode can be used, a login with the Locating- Portal must be made. Use is free of charge for up to two CarBeacons. - 25 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 26 Datentechnik GmbH info@antrax.de - www.antrax.de Tracking-Modus “HTTPGET” ( TM21 ) (GPRS required ) Send GPS-Position as HTTP-GET In the Tracking-Mode “HTTPGET” (TM 21:1) the GPS-Position will be sent per HTTP- GET to a chosen Tracking-Portal or Internet-Server. This Tracking-Mode is comparable to Mode TM:20 (“Track4Free”), in this Mode the address of the Internet...

  • Page 27: Tracking-Mode "Httpget

    HTTPGETport Port to use [HTTPGETpor (Range 0 ... 65535) t:80] HTTPGETsend The CarBeacon sends the actual GPS-Position (once) to the selected Server. To use this function Tracking-Mode 21 must be activated: TM21 : 1 Tracking-Mode “HTTPGET” ( TM21 ) (GPRS required)
  • Page 28 Datentechnik GmbH info@antrax.de - www.antrax.de GET /gps.php PHP-Program to be executed IMEI of the CarBeacon data=3582810000357 100507 UTC Date (ddmmyy) 130035 UTC Time (hhmmss) 5206.4236N Latitude of the actual position 00839.8753E Longitude of the actual position 169.31 Cog (Course over Ground) 0.10...

  • Page 29: Send A Parameter-Sms To The Carbeacon

    Configure Parameters per SMS CAUTION: When using a SMS for this purpose, please be aware that it can take up to 24 hours until the SMS reaches the CarBeacon. The transmission time can vary considerably from Provider to Provider. Frequent use of cross network SMS (i.e. from Orange to Vodafone) require longer transmission times than network internal SMS.
  • Page 30 Upper and lower case text will not be differentiated. Spaces will be ignored. The SMS may contain a maximum of160 digits (The CarBeacon does not support the the reception of over-length mails) All configurations remain extant until they are explicitly replaced.

  • Page 31: Set A Parameter Per Http-Get

    Send a Parameter-SMS to the CarBeacon Set Parameter per HTTP-GET In Tracking-Modi 20 and 21, delivery of parameters to a CarBeacon is in principle also possible via the data-transmission of a reply from a webserver. The exact method can be derived from the additional documentation.
  • Page 32 Text in the Description Parameter? Request the current value of the parameter The CarBeacon sends the information in (many chain) SMS back to the caller GPSsend The CarBeacon sends the current GPS-position (once only) as a SMS to the caller.
  • Page 33 Datentechnik GmbH info@antrax.de - www.antrax.de TM21 : 1 CBreset The CarBeacon executes a reboot ParaReset Reset all changeable parameters to the standard values - 33 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 34: Send A Command Sms To The Carbeacon

    Send a Command-SMS to the CarBeacon CAUTION: When using a SMS for this purpose, please be aware that it can take up to 24 hours until the SMS reaches the CarBeacon. The transmission time can vary considerably from Provider to Provider.

  • Page 35: Receive A Parameter-Sms From The Carbeacon

    Datentechnik GmbH info@antrax.de - www.antrax.de Receive a Parameter-SMS from CarBeacon The CarBeacon sends a Parameter-SMS, when it is requested to do so via a SMS with "Parameter?" this Parameter-SMS contains all currently configured parameters in the unit: Example of a Parameter - SMS:...
  • Page 36 Datentechnik GmbH info@antrax.de - www.antrax.de PROVser:- PROVPwd:- PROVSMS2Email:- MoveAlarm:0 - 36 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 37 Receive a Parameter-SMS from CarBeacon Meaning of Parameters: Text in the SMS Meaning CarBeacon Dispatcher-Logo FW:20080624 Firmware-Version IMEI:358281000035794 IMEI of the CarBeacon (International Mobile Equipment Identity) IMSI:26203244016236 IMSI of the SIM-Card (International Mobile Subscriber Identity) Master:+49 170 Master-Subscriber Number 9437197 GPS:1...
  • Page 38 Datentechnik GmbH info@antrax.de - www.antrax.de HTTPGETURL:gps.php URL, that will be called when HTTP-GET is initiated HTTPGEPort:80 Port to use at the HTTP-Server TM40:0 Tracking-Mode 40 UseOwnProv:0 Define own APN PROVAPN:- APN of the SIM-Card Provider Only present when the provider „T-Mobile“, „Vodafone“, „E-Plus“...

  • Page 39: Activation

    CAUTION: The rubber seal must be correctly seated in the appropriate recess. A SIM card chosen for use in the CarBeacon can be prepared in any mobile telephone or PC card-reader. During this process the PIN on the SIM card must be set to ”1357”.
  • Page 40 Standard PIN as detailed below is entered into the SIM card prior to initial use. The PIN is the access code to the SIM card. The CarBeacon expects PIN code 1357 on the PIN card in use. This PIN can be entered onto the SIM card with the help of a mobile telephone or a PC SIM card reader.
  • Page 41 - www.antrax.de Access Code vs. PIN The access code for entering the CarBeacon via voice call is "1357". This means that as long as this access code is not expressly changed (via the telephone book entry “PWD” on the SIM card) the standard PIN will be used.
  • Page 42 - www.antrax.de Prepaid - SIM-Cards When using Prepaid-SIM-cards the CarBeacon regularly ascertains the credit remaining on the card. After a “Voice Call” and entry of a valid access code, the user will hear an alarm tone for the first 5 seconds of the call when a credit of less than 1 Euro remains on the card.

  • Page 43: Gprs-Connection

    Vodafone and E-plus (depending on the contract). If a SIM-card does not support a ”GPRS” connection, this cannot normally be detected by the CarBeacon. This error is has exactly the same effect on the unit as for instance when temporarily no wireless reception is possible (area of poor reception, screening etc.) or false...
  • Page 44 This is however accomplished via an automatically redirected CSD connection. CSD re-direction is not supported by CarBeacon. - 44 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

  • Page 45: Flashing Codes

    - www.antrax.de Flashing Codes The CarBeacon signals its current condition via the two colour LED's (green/red) with various flashing codes. When one of the flashing codes is displayed for a longer period, there is a high probability that one of several errors has occured.
  • Page 46 Telephone Book (= parameters read required for use) are missing 6 x red No credit left on the SIM-card Flashing CarBeacon is logged on and ready for use, a GPS- green Position is being received (1 second intervals) red flashes...

  • Page 47: Quickstart

    Call the CarBeacon The CarBeacon will signal an engaged tone after two rings with a mobile – in this way the caller knows that a CarBeacon has been telephone called. Please use only a SMS compatible telephone as the CarBeacon sends a SMS back to the caller.
  • Page 48 Datentechnik GmbH info@antrax.de - www.antrax.de Send the current GPS position of the CarBeacon every 10 Minutes Activity Description Prepare the SIM-Card The „Standard“ PIN must be entered onto the SIM Card (i.e. Using a mobile telephone) Insert the SIM-Card...

  • Page 49: Troubleshooting

    Datentechnik GmbH info@antrax.de - www.antrax.de Troubleshooting PIN in use After switching on, the CarBeacon tries to activate the SIM Card with the Standard-PIN ”1357”. If (Error code or after three consecutive attempts this fails, because flashing code 2) for instance the PIN has not been set on the SIM Card, the SIM card will normally be locked.
  • Page 50 - www.antrax.de 2.)In both instances (CarBeacon and User- Mobile-Phone) only one provider should be used. Tracking Modi CarBeacon can sometimes not log-into the GPRS 10, 11, 20 and network, possibly poor reception or no GPRS cover in the area. always...
  • Page 51 Datentechnik GmbH info@antrax.de - www.antrax.de Expressions Used in the Text - 51 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 52 Datentechnik GmbH info@antrax.de - www.antrax.de e-Certificate - 52 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 53 Datentechnik GmbH info@antrax.de - www.antrax.de - 53 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 54 Datentechnik GmbH info@antrax.de - www.antrax.de - 54 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 55 Datentechnik GmbH info@antrax.de - www.antrax.de - 55 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
  • Page 56 Datentechnik GmbH info@antrax.de - www.antrax.de - 56 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
