Summary of Contents for Converters.TV 633
- Page 1 PC/HDTV Pattern Generator ID# 633 Operation Manual...

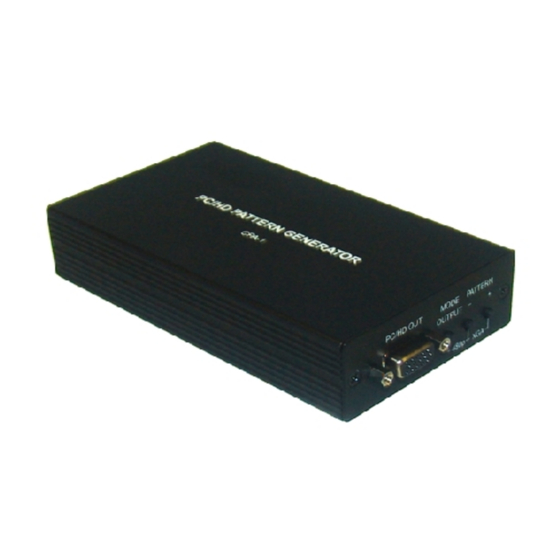

- Page 2 Introduction A Video Pattern Generator with a wide variety of PC/HDTV pattern options which provide stable test signals. It provides over 27 different test patterns that can be used as an industrial- standard signal source for testing, broadcasting and troubleshooting. Output format is analog RGBHV/YPbPr via HD-15 VGA connector.
- Page 3 Operation Controls and Functions Mode: Select the output resolution. + or - : Select the test pattern signal such as color bar, staiscase, multiburst. Press " mode, - " : Reset the output resolution to 480p / color bar. Press " - , + " : Reset the output to XGA / color bar. Output pattern...
- Page 4 Specifications Specifications: - Output Format: RGBHV, YPbPr - Output Connector: HD 15 Female - Output Signal: RGB @ 0.7Vp-p, H&V Sync @ 3Vp-p, Y @ 1Vp-p, Pb,Pr @ 0.7Vp- p 75 ohm - Weight (g): 400 - Dimensions (mm): 77 (W) x 30 (D) x 146 (H) - Power Source: 5VDC @ 2A Output Signal Specifications...
