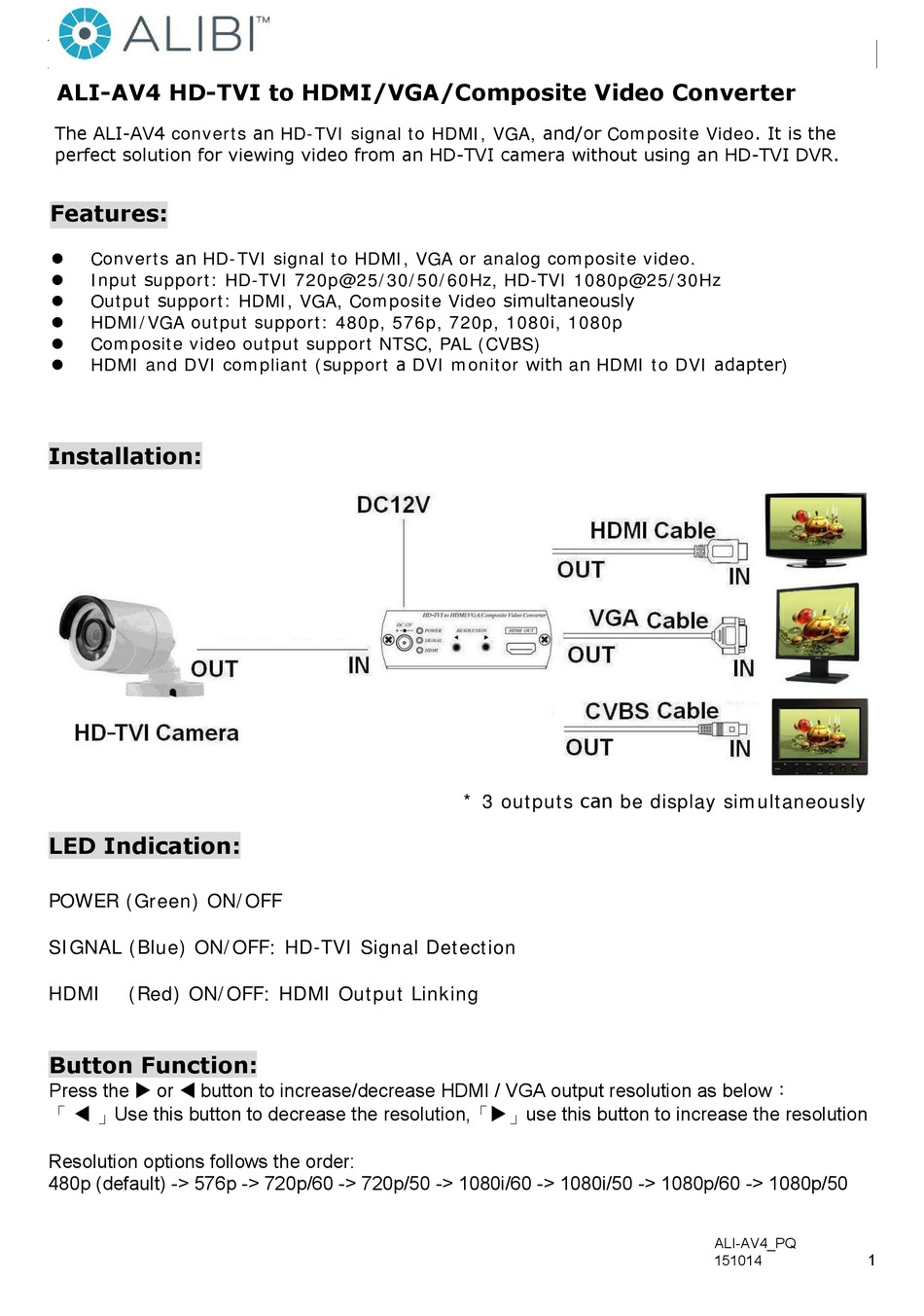

ALIBI ALI-AV4 Quick Start Manual

ALI-AV4 HD-TVI to HDMI/VGA/Composite Video Converter
The ALI-AV4 converts an HD-TVI signal to HDMI, VGA, and/or Composite Video. It is the
perfect solution for viewing video from an HD-TVI camera without using an HD-TVI DVR.

Features:

Converts an HD-TVI signal to HDMI, VGA or analog composite video.

Input support: HD-TVI 720p@25/30/50/60Hz, HD-TVI 1080p@25/30Hz

Output support: HDMI, VGA, Composite Video simultaneously

HDMI/VGA output support: 480p, 576p, 720p, 1080i, 1080p

Composite Video Output support NTSC, PAL (CVBS)

HDMI and DVI compliant (support a DVI monitor with an HDMI to DVI adapter)


Installation:

LED Indication:

POWER (Green) ON/OFF
SIGNAL (Blue) ON/OFF: HD-TVI Signal Detection
HDMI (Red) ON/OFF: HDMI Output Linking

Button Function:

Press the  or  button to increase/decrease HDMI / VGA output resolution as below：
「  」Use this button to decrease the resolution,「」use this button to increase the resolution
Resolution options follows the order:
480p (default) -> 576p -> 720p/60 -> 720p/50 -> 1080i/60 -> 1080i/50 -> 1080p/60 -> 1080p/50
* 3 outputs can be display simultaneously
ALI-AV4_PQ
1
151014
