- Page 1 CABO 10,000 With SP-20 Pearson Pump Technology Installation and Operating Manual Spectra Watermakers Katadyn Desalination LLC. 2220 S. McDowell Blvd. Petaluma, CA 94954 Phone: 415-526-2780 Fax: 415-526-2787 techsupport@spectrawatermakers.com www.spectrawatermakers.com Updated March 2019...
-
Page 3: Table Of Contents
Table of Contents Installation Instructions Page Getting Started Introduction Installation and Setup Plumbing and Controls Plumbing Schematic Operation Initial Start-up Normal Operation Monitoring the System Care and Maintenance Maintenance Long Term Storage Winterizing Membranes Clean-in-Place Procedures Troubleshooting Reference Wiring Diagram Specifications Pump Breakdown... -
Page 5: Getting Started
Getting Started Thank you for trusting Spectra Watermakers for your water purification needs. The Spectra Cabo-10,000 comes equipped with the revolutionary Spectra Pearson Pump, a unique high pressure pump with integrated energy recovery that allows users to purify up to 420 gallons of seawater per hour on as little as 3 Kilowatts. If properly installed and cared for, your system will provide you with years of high quality, potable, fresh water. -
Page 6: Introduction

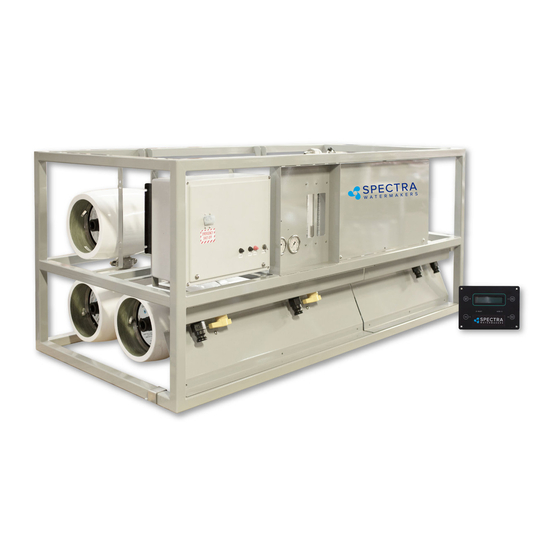

Cabo 10,000 frame is constructed of powder coated 304 stainless steel and must be positively fixed in place. includes the Spectra Pearson Pump, Motor and Belt drive system coupled to three 8”... -
Page 7: Plumbing And Controls
Introduction to your System, cont…. The basic system layout and controls are shown in the picture below Control Box The molded FRP watertight box contains the speed control and the safety control circuits. This module should be kept away from any water source or where it could get sprayed or wet. -
Page 8: Installation And Setup
Installation and Setup Mounting and Service access: Your Cabo system is designed to be mounted on a level surface and properly fixed in place. There are cleats supplied with the system for mounting or holes can be drilled through the frame to bolt it into place. Be sure to allow for service access to the unit, we recommend: A minimum of 40”... - Page 9 INSTALLATION - Control System Manual systems have simple controls, momentary buttons for priming the filters, start and stop. The Prime button is a momentary switch for the feed pump (run variable speed setting). The Start button does just that. You need to hold the button down until the Pearson Pump comes up to full speed.
-
Page 10: Plumbing Schematic
Simplified Plumbing Layout Pearson Energy Feed Filter Flush Recovery Pump Water Array Valve Flow Gauge Boost Optional Pump Media filter Feed Water Inlet High Pressure to High Pressure Membranes Return Pressurized Fresh water from tank Product water to tank Membrane Array Charcoal filter Fresh water tank... -
Page 11: Initial Start-Up
New System Startup and Testing (Purging storage chemicals) Use this procedure when starting a new system for the first time, when the last known state of the system is unknown, or whenever the system contains Preservative or cleaning chemicals. Warning! Damage will occur if the purge sequence is bypassed and the membrane is pressurized with storage chemical in it. - Page 12 New System Startup and Testing, cont... 4. Check again that air is purged from filters (buttons on top of filter housings). 5. Confirm there is water flowing from the brine discharge and Carefully inspect for leaks over the entire system! Shut down the system and repair any leaks you find.
-
Page 13: Normal Operation
Normal Operation If the system is not running and you do not know how it was shut down it is best to assume it needs to be purged. Running the system on feed water with the pressure relief valve for 20-30 minutes will clear the system of anything that would harm the membranes. -
Page 14: Maintenance
Maintenance General Periodically inspect the entire system for leaks and chafe on the tubing and hoses. Repair any leaks as soon as possible. Check for corrosion around the fittings. If any rust appears, remove, clean, and reassemble the fitting. Rust is a sign of crevice corrosion inside the fitting and must be dealt with promptly. -
Page 15: Long Term Storage
If the machine will not be used for more than seven days it should be placed in Auto store mode or treated with preservative. Spectra Watermakers SC-1 powdered preservative may be used if there is no danger of freezing. Do not use other brands... -
Page 16: Winterizing
Storing with Antifreeze (Winterizing) You will need approximately 8 US gal (30L) of Propylene Glycol potable water antifreeze*. The system must have been fresh water flushed thoroughly. Open the Pressure Relief Knob on the Pearson Pump. Attach the service hoses, place the open ends of the hoses in the bucket and turn both the service valves to SERVICE (valves in picture shown in run position) -
Page 17: Monitoring The System
If the membrane fails to respond to both cleanings, this is an indication of another problem with the system, or that it is time to replace the membrane. Contact Spectra Watermakers before removing a membrane. Membrane Cleaning For normal cleaning, the SC-3 Acid Cleaning Compound is used first, then the SC-2 Alkaline Cleaning Compound, if necessary. -
Page 18: Clean-In-Place Procedures
The feed water supply must be shut off. Mix the bag of Spectra Watermakers cleaning chemical into a bucket of the unchlorinated water, stir until well dissolved. Attach the service hoses, place the open ends of... -
Page 19: Troubleshooting
TROUBLESHOOTING Symptom Cause Resolution Pump Knocks Loudly Incorrect Boost Pressure Increase or Decrease boost pressure as appropriate Check Pre-filtration for blockages Inadequate Feed Water Check Supply Pump for Supply proper operation and adequate flow through pre- filtration system Suction on brine discharge A vacuum break (air gap) or a small restriction on the brine discharge (2-5 psi) - Page 20 TROUBLESHOOTING Symptom Cause Resolution High Power Consumption High Membrane Check membrane pressure against nominal system (Decreased Energy Efficiency) Pressure parameters Check Supply Pump for proper Low Boost Pressure operation and adequate flow through pre-filtration system Test motor, replace if necessary Motor Problems Change oil Water in crankcase...
- Page 22 Connector Pin Locations and speed control settings...
- Page 23 Boost Pump Speed control...
-
Page 24: Specifications
Specifications Electrical Input 240 volt systems: 208-240 volts single or three phase 50/60 Hz 19.5 amps max** ** includes boost pump Power consumption will vary depending on feed water conditions and motor RPM. Do Not Exceed Factory Recommended Max/Min values.** Feed Water Supply Minimum Pressure after filters: 10 psi, .7 bar Maximum Pressure after filters*: 20 psi, 1.4 bar...
