Introduction

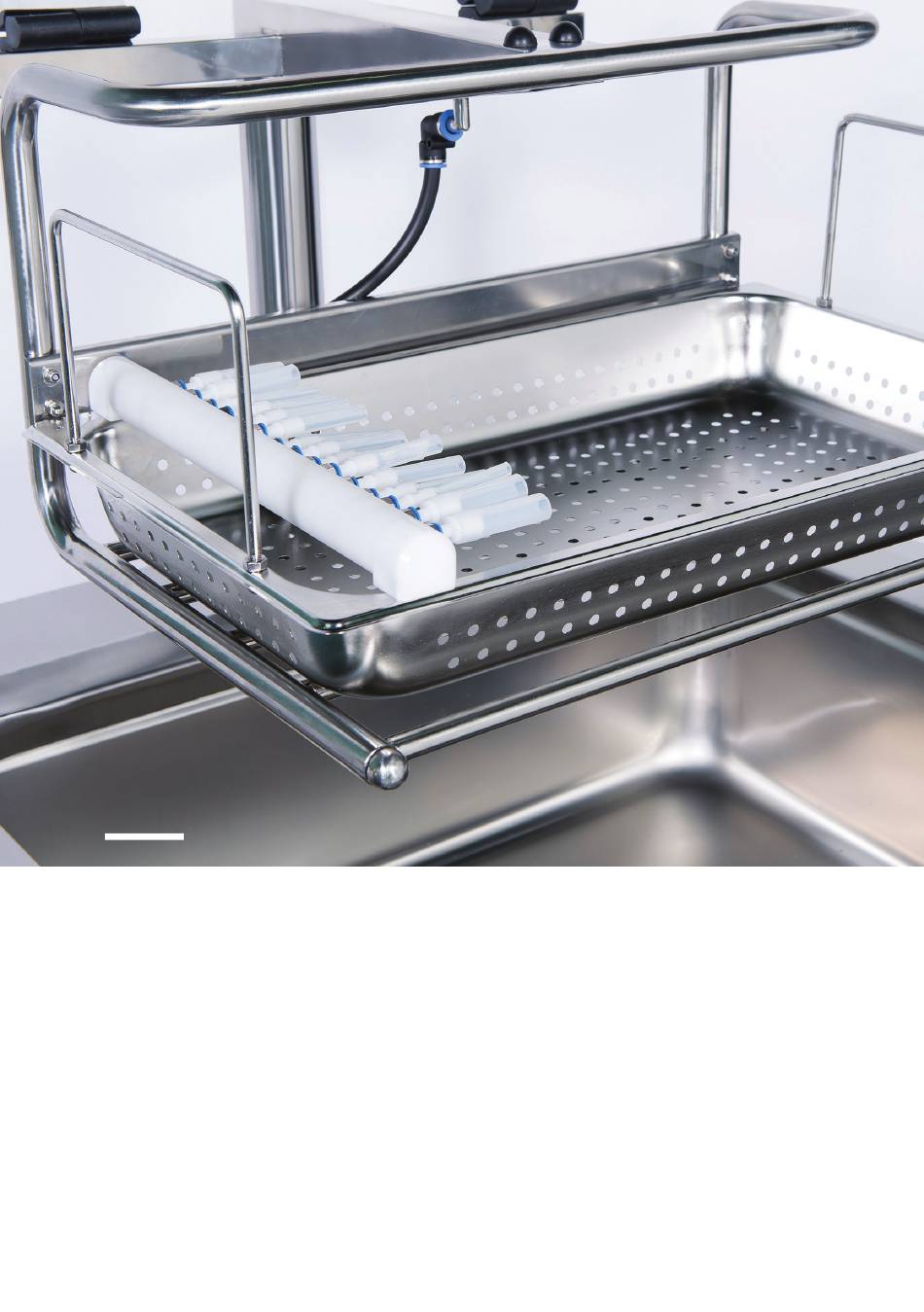

Thank you for purchasing a Soniclean Ultrasonic Washer. Soniclean washers are
designed to improve the quality and consistency of cleaning instruments using
ultrasonics and clean water rinsing. It is intended that the instruments shall be
gross-cleaned prior to loading into the Washer, and be sterilised in the usual
manner after ultrasonic cleaning.
This manual will guide you through the safe and effective operation of your
device. Please also ensure you have familiarised yourself with specific instructions
for installation and first use to avoid damage to the device and/or instuments or
harm to operators.
soniclean.com.au
USRMAN-UW-180201-V3.0.1
sales@soniclean.com.au
+61 8 8234 8398
Advertisement
Table of Contents
Related Manuals for Soniclean UW-3000
Summary of Contents for Soniclean UW-3000
- Page 1 Introduction Thank you for purchasing a Soniclean Ultrasonic Washer. Soniclean washers are designed to improve the quality and consistency of cleaning instruments using ultrasonics and clean water rinsing. It is intended that the instruments shall be gross-cleaned prior to loading into the Washer, and be sterilised in the usual manner after ultrasonic cleaning.
-
Page 2: Table Of Contents
9.3 Drain Blocked: (drnb) 9.4 Overflow Detection: (OFLO) 9.5 Ultrasonics Overheating: (HOT) 9.6 Real-Time Clock: (rtc) 9.7 Power-up warning: (P-UP) 9.8 Water leak: (H2OL) 9.9 Setting default IP values. (IP-?) 9.10 Slid—lid lifted during operation A Operating Instructions Summary (Washer) B Specification C Warranty soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 3: Requirements
Note: The customer shall ensure the following requirements are met prior to installation. This is essential for the machine to perform at optimum level and to fulfil Australian Standards. If the customer fails to provide this information, Soniclean will provide the information for a fee. 1.1 Environmental i. -
Page 4: Printer (Optional)
When bottle is empty replace with the same brand of detergent. It is important that identical detergent is used, as this is critical to the total cleaning process. If other detergent is used the machine shall require re-programming. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au... -
Page 5: Installation
Caution: Only use designated cables for accessing data from the Washer. The cable marked ‘PC’ should be used for direct connection to computers ethernet port . The cable marked ‘LAN’ should be used for connection to a LAN wall outlet. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au... -
Page 6: Printer (Optional)
Open door on front of wash unit. ii. Place filtered end of detergent hose into container. iii. Place detergent container into compartment. iv. Ensure there is sufficient detergent in container at all times. v. Check level of detergent regularly. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 7: Operation
The machine is ready to be loaded ---- with instruments. vi. It is recommended that you perform a foil test daily to check the performance of your Washer. (Refer Section 4, Foil Test.) soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... - Page 8 Clean No. C-01 Current clean cycle no. Ultrasonics P-03 Displays poer level. **Time remaining to Time Remaining 03.48 5 minutes complete current clean. *As set by the manufacturer. **Displayed in minutes and seconds (mm:ss). soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398...
- Page 9 Press the “SHIFT” key and “REFILL” key together and hold for three (3) seconds. ii. The machine will emit a beep. iii. Release the keys and the machine will drain and then refill with water and detergent and perform de-gas cycle. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398...
- Page 10 Press “SHIFT” and “DRAIN” together, and hold for 3 seconds. ii. The machine will drain. iii. The machine will display “OFF”. iv. Turn off the power at the power point. v. Wipe down surfaces of machine with detergent or disinfectant. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398...
-
Page 11: Foil Test
N.B. As per AS/NZ 2773.1-1998, it is acceptable to use alternative methods of testing the performance of your ultrasonic machine. Examples such as aluminium disc and pencil test, Soniclean Ultrasonic Performance Meter (UPM) must be used as per manufacturer’s instructions. -
Page 12: Keypad Description
Removes gas from solution. Press again to cease degassing. 9. Clean ( The solution is degassing. (This takes approximately 10 minutes.) Reset (secondary) Immediately aborts current operation (press while holding shift). Initiates “program” mode, enables user to change operation parameters. Program soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 13: Programmable Features
6 Programmable Features When you receive your Soniclean Washer it will be set to function automatically. The parameters are set in the factory. The features described below may be altered as you require. The list includes the display you will see on the machine when you are programming. -
Page 14: Program Mode
The machine will display “- - . - -”. ii. Hold the “Program” key for three (3) seconds. iii. Ct, PO & rt parameters may be reset. iv. Values will be held until changed or until machine is restarted. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... - Page 15 Press the arrow “UP” key to increase the parameter and the arrow “DOWN” key to decrease the parameter. iii. To accept a value press “ENTER”. The display will scroll through the parameters. iv. Refer the table on the next page for parameters and default values. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398...
- Page 16 50% duty cycle full power 75% duty cycle iii. Fill Temperature This parameter determines the temperature of the wash water; the table below shows the temperature for each setting. Parameter Temperature cold warm very warm soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398...
-
Page 17: Display Messages
Indicates a water leak in the system or circuit/wiring failure. IP-? Indicates the configuration of the machine is not known. (MRS function only.) SLid Lid has been opened during operation. N.B. Displayed when cleaning. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 18: Error Diagnosis
This error will not be detected while the wash lid is up as the operator may cause wave action in the wash tank causing a false indication. Corrective Action i. Turn off at power point. ii. Contact service agent. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 19: Drain Blocked: (Drnb)
This message occurs if the Real Time Clock (rtc) date/time in the system is considered invalid. ii. This may be caused by the machine not being used for a long period of time. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 20: Power-Up Warning: (P-Up)
Only for MRS models and IT staff use. Corrective Action i. Contact the facilities IT department. ii. Refer to the Machine Reporting Manual. iii. Contact a service agent. 9.10 Slid—lid lifted during operation Corrective Action i. Restart unit. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 21: A Operating Instructions Summary (Washer)
Press and hold Shift and Refill to continue cleaning or; iii. Turn off at power point. Manual Shutdown i. Press Shift and Drain. ii. When machine has drained display will show Off. iii. Turn off at power point. soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... -
Page 22: B Specification
Specification Soniclean Ultrasonic Washer UW-3000LI Item Function Model UW-3000 Tank Size 620mm (W) x 500mm (D) x 300mm (H) Tank Capacity Ultrasonic Power 600W (typical) Overall Size 760mm (W) x 760mm (D) x 1000mm (H) Weight ~55KG Benchtop Footprint 760mm (W) x 700mm (D) -
Page 23: C Warranty
Warranty This warranty applies to Soniclean Irrigated Ultrasonic Cleaner (Washer) UW-3000/LI, UW-3800/LI, and Soniclean Rinser model R-3000/LI and R-3800/LI. Your Rinser/Washer is guaranteed for 12 months from date of purchase. We undertake to repair free of charge or exchange (at our discretion) any part found to be defective due to a manufacturing fault. -
Page 24: Soniclean.com.au Usrman-Uw-180201-V3.0.1
This form, photocopy or facsimile must be returned within 1 month from date of commissioning the machine. Retailer/Place of Purchase Model Serial No. Date of Purchase Date of Commisioning Commisioned By Position Details (plumbing license, etc. Hospital Staff in Attendance Customer Representative Position Soniclean Representative Position soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398... - Page 25 Notes soniclean.com.au USRMAN-UW-180201-V3.0.1 sales@soniclean.com.au +61 8 8234 8398...
