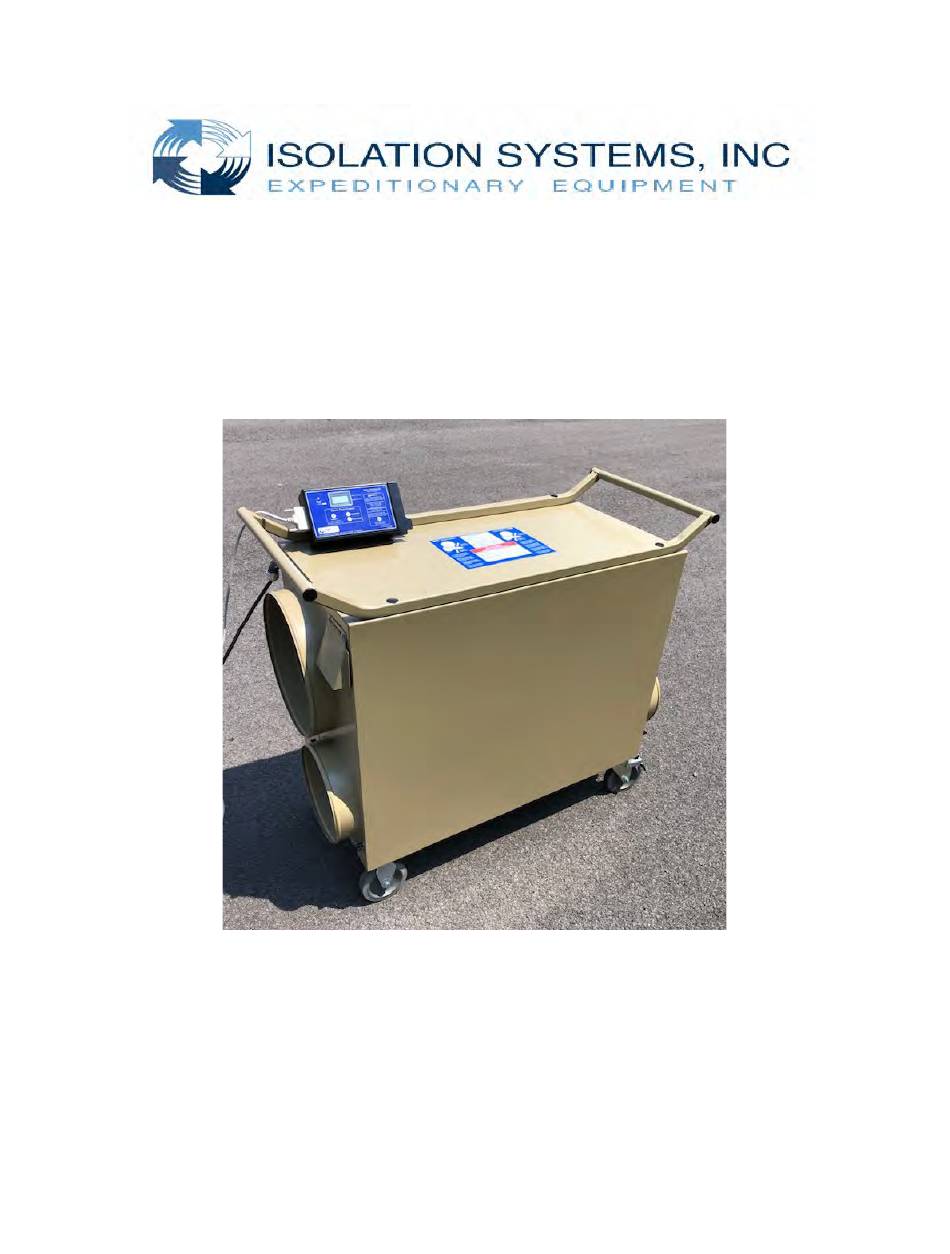

Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 PASS-1600ISO Air Filtration System Operation and Maintenance Manual Isolation Systems Inc. 889 ERIE AVENUE, NORTH TONAWANDA NY 14120 (716) 694-6390 Fax (716) 694-3026 Email: SALES@ISOSYSINC.COM website: www.ISOSYSINC.COM Revised: 2 October, 2020...
Page 2
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Do Not Use for Flammable Gas or Vapors. This unit can ONLY be safely used after the room is ventilated to remove flammable gases or vapors and certified by authorities to be below the lower explosion limit or flash point.
The Isolations Systems Inc. Portable Air Safety Systems (PASS) 1600ISO unit provides portable air filtration for standalone use in any area requiring enhanced air quality. The PASS-1600ISO is capable of providing the proper interior environmental air quality as outlined by AIA, ANSI/ASHRAE Standard 62.1-2019, Ventilation for Acceptable Indoor Air Quality and the Centers for Disease Control (CDC) guidance for air changes per hour (ACH).
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 2.0 Installation and Operation Upon powering the unit, the blower and UV lamps will be automatically activated. NO NOT power the unit (plug the unit into 110VAC) until the unit air ducts have been connected and enclosure panels are closed to eliminate potential of Ultraviolet Light exposure.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Air Duct Installation 2.3. Controls and Displays 2.3.1. Controller & Accessory Case Located in a foam lined case shown below, the PASS Controller includes a multifunction digital display, red fault alarm lamp, audio alarm and silence button. The controller case also includes the controller cord, air pressure line and T-handle wrench.
Page 8
2 October, 2020 2.2.3 Airflow Configuration and Controls The PASS-1600ISO has two ports on each of the intake and exhaust ends of the unit. This allows a number of configurations for the removal and replacement of room air. • The smaller ports create the negative or positive pressure differential in the treated room.
Page 9
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 2.2.3.2 Set the two (2) airflow dampers. The dampers are secured in position by three (3) wing nuts. Loosen the wing nuts to allow the damper to rotate. Re-tighten the wing nuts after repositioning the dampers.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 2.4 Adjusting for Differential Pressure 2.4.1 For a neutral pressure application (recirculation only), the dampers on both the exhaust and intake sides should be lowered to fully cover the smaller ports. The larger ports will be fully uncovered to provide circulation at neutral pressure.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 2.5 Example Configurations The PASS-1600ISO Negative Pressure Shelter Example The unit is placed outside the Isolation shelter, the large air "intake" duct is connected to the shelter duct port. A...
Page 12
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Unit Outside Shelter Negative Pressure with Ante-room Set-up Room Large Intake: Ducted to Patient Room Small Intake: Ducted to Ante-room Large Exhaust: Ducted to Patient Room Small Exhaust: No Duct...
Page 13
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Unit Inside Shelter Positive Pressure Set-up Exhaust Room Large Intake: Patient Room, No Duct Small Intake: Ducted to Ante-room Large Exhaust: Patient Room, No Duct Small Exhaust: Ducted outside...
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Before any maintenance procedure, disconnect all power from the unit. Power to the unit will result in dangerous electrical contact and exposure to dangerous UV radiation. For any service requiring power to the UV lamps, you must use safety glasses rated for UV protection and ensure that no one without UV rated safety glasses can be exposed to the radiation.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 4.1. Access to the Pre-filters, HEPA Filter, and UV lamps 4.1.1 Unlock the filter section by rotating the nine (9) fasteners with a standard screwdriver one-quarter turn counterclockwise as shown in paragraph 2.1.4...
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 4.2.1 To remove the UV bracket, locate the electrical connection near the top of the bracket, squeeze the two tabs on the long sides of the connector and pull the plastic halves of the connector apart.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 4.4 Replacement of the Rear UV lamps 4.4.1 The rear UV lamp bracket holds five (5) lamps. These lamps are replaced without removing the bracket. 4.4.2 Lamps are removed by applying pressure in the direction of the spring loaded end bracket until the other end of the lamp releases.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 4.5.3 Insert the prefilter/pressure plate in front of the UV lamp bracket so that the lip is toward you and overlaps the side of the UV lamp bracket. Ensure that the plate does not pinch the electrical wire coming from the top corner of the lamp bracket.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 5.0 Troubleshooting Symptom Indicates Cause or Solution Red indicator light Indicates a pressure fault. Read display for causes blinks Auditory alarm sounds Indicates obstructed airflow Read display for causes...
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 7.0 Recommended Spare Parts and Consumables PART Number QUANTITY Description 80016 HEPA filter UV Lamps 2107 UV Ballasts 2104 8.0 Abbreviations Air Changes Per Hour American Institute of Architects...
Page 21
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Blower wiring see detail sheet 2 Capacitor Cabinet ground Supply wiring Screw Blower Blower 115 volts AC speed 11.5 amp 60 Hz control Red 18 Ga solid Red 18 Ga solid...
Page 22
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 Detail wiring of Impeller/blower and speed controller Speed controller Isolation Systems Inc 889 Erie Ave, North Tonwanda NY, 14120...
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 10.0 Control Cabinet Components Blower support stand off Blower Impeller Inlet Run Time Meter Blower Run CFM KNOB Capacitor Control Circuits Input Power Isolation Systems Inc 889 Erie Ave, North Tonwanda NY, 14120...
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 10.1 Control Circuit Card Assemblies • The PASS1600ISO contains two circuits cards. The circuit cards cannot be repaired and must be replaced. • As illustrated below, the circuit cards include fuses. When directed by Isolation Systems customer support and with power disconnected these fuses can be replaced as needed.
Isolation Systems Inc Operation and Maintenance Manual PASS-1600ISO 2 October, 2020 12.0 Warranty Isolation Systems Inc. Limited Parts Warranty The manufacturer warrants to the original purchaser / user that the above-described unit shall be operational and free of defects at the time of delivery.
