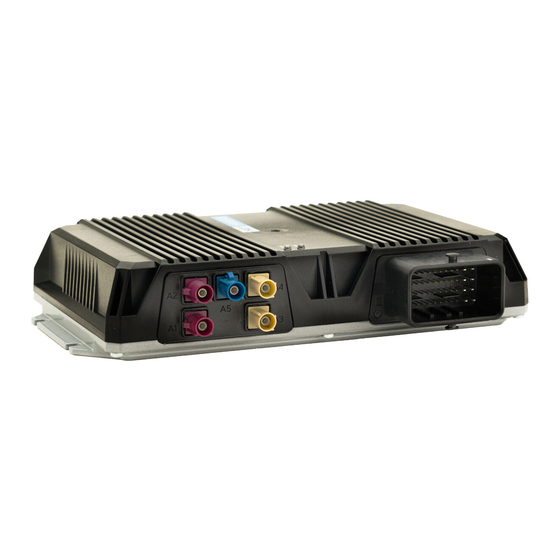

NetModule NG800 Manual

6 5

1. Open Enclosure

1.1 Place the device on a table with the bottom upwards (Figure 1)
1.2 While loosening the 6 screws hold the bottom down to the cover (Figure 1)
1.3 Loosening the screws counter-clockwise | Drive type: Torx T10
D
1.4 Loosening sequence: from screw 1 to 6 (Figure 1)
1.5 Flip the device with the cover upwards (Figure 2)
1.6 Carefully lift off the cover (Figure 2)
3
C
B
Material
Dimension
A
Allgemeintoleranzen
DIN ISO 2768-m
NetModule AG Phone: +41 (0)31 985 25 10
Fax: +41 (0)31 985 25 11
Maulbeerstrasse 10
info@netmodule.ch
CH-3011 Bern www.netmodule.com
6 5
4
1
5
Figure 1
Figure 2
Oberfl chenbeschichtung
Verwendung / Bezeichnung
NG800
SIM Change Instruction for IP55 Housing
4
3
6
Bottom
2
Cover
Cover
Fl che
N/A
Gewicht
N/A
3
2
4
Gezeichnet
rk 10.12.2020
Gepr ft
jla 09.03.2021
Ge ndert
rk 09.03.2021
Massstab A4 Blatt
1:2 1 / 5
Artikelnr / Zeichnungsnr Version
01
2
1
D
C
B
A
1
