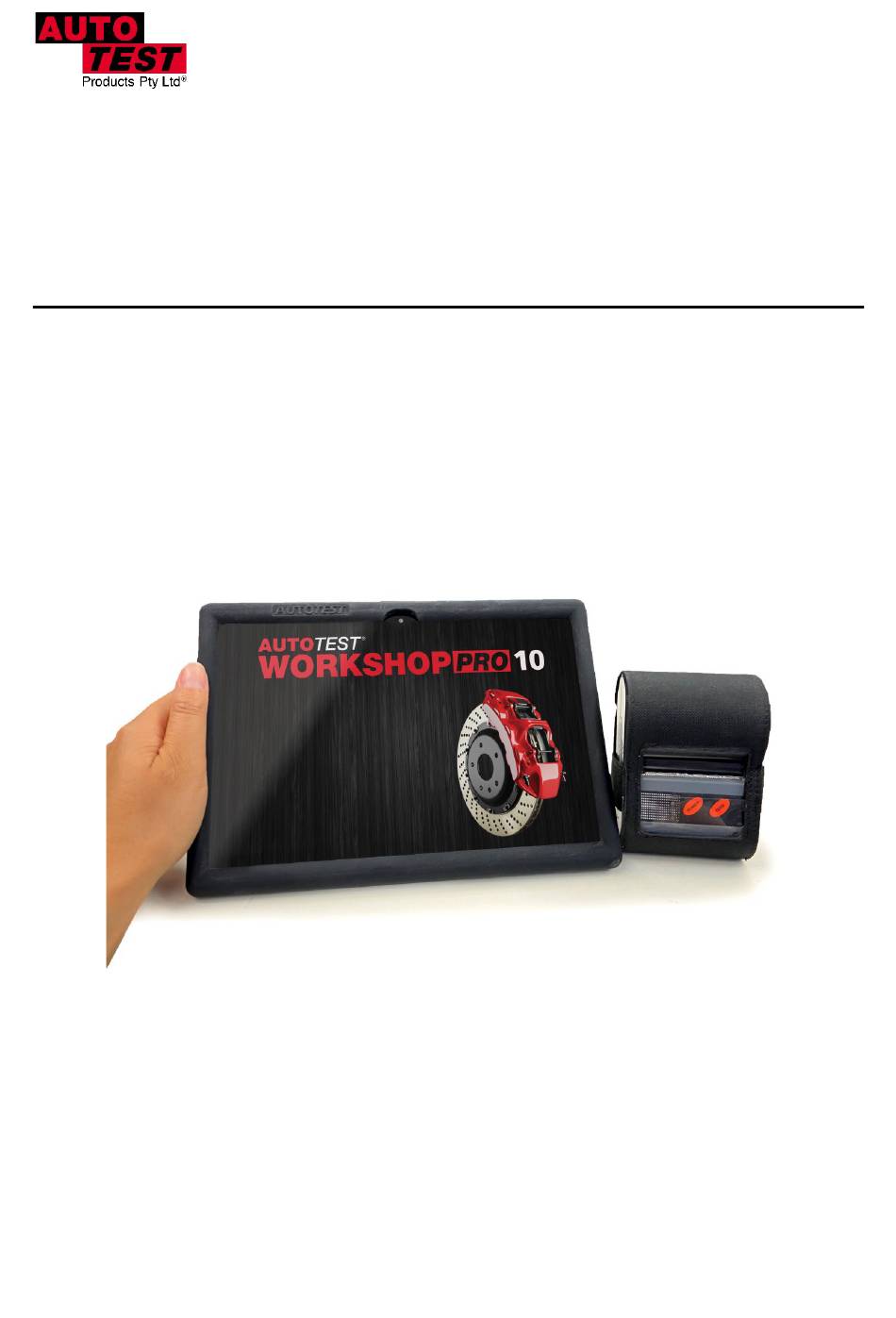

- Page 1 User Manual Version 1.1 Test Auto ® WorkshopPro ® 10″ PREMIUM TABLET BASED DECELEROMETER / BRAKE TESTER AND WORKSHOP TOOL, WITH BLUETOOTH PRINTER...
- Page 2 AutoTest Products reserves the right to revise this document or withdraw it at any time without prior notice.
-
Page 3: Table Of Contents
7.5 Check for Updates ..............................21 8. RETURN OF WORKSHOP PRO ..........................22 8.1 Packaging ................................22 8.2 Shipping .................................. 22 8.3 Documentation ................................ 22 9. MAINTENANCE AND TROUBLESHOOTING ......................22 AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 3... -
Page 4: Preface
1. Preface Thank you for purchasing AutoTest products. Please read this manual completely before installing and operating the product so as to ensure correct operation of the product. Make certain that this manual can be accessed whenever necessary. 2. For Your Safety Read these simple guidelines. -
Page 5: Warranty
Authorised Service Centre warrants this product against defects in material and workmanship for a period of 12 months from the original date of purchase. This warranty applies only to products and components supplied by AutoTest Products which can be identified by the trade name or logo affixed to them or by other documents. -
Page 6: Unpacking And First Time Use
4. UNPACKING AND FIRST TIME USE Congratulations on your choice of an AutoTest Workshop Pro. Please take the time to read this User’s Manual before using the AutoTest Workshop Pro in the field. Incorrect or inappropriate use of this instrument may void the warranty. Retain the packing materials for future shipping and transport of the unit. - Page 7 If you have already connected the Workshop Pro to Wi-Fi then you can wait, otherwise you need to connect to the Wi-Fi. This process needs to be repeated every time the Workshop Pro is activated. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 7...
-
Page 8: Buying A License
Step 1: Select Buy License from the prompt in Figure 7. Step 2: Enter your 5 digit Serial Number on the back of the Workshop Pro 10 and press “Okay” AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 8... - Page 9 Step 5: Once the purchase is successfully processed and accepted a prompt will appear to confirm that your Workshop Pro 10 License is now successfully Activated. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 9...
-
Page 10: Code Received From Autotest
Step 3: You will be prompted with a window (Figure 11) to submit the form after confirming details of the unit. If the activation is successful it will prompt “Brakemeter has been activated”. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 10... -
Page 11: Operation
Workshop Pro must be secure during the entire duration of the test. Any movement can cause incorrect deceleration readings. Secure device in pictured position in the vehicle with the provided Velcro strips. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 11... -
Page 12: Running A Test
‘Decelerate Vehicle’ complete stop Test Report is generated and Vehicle comes to a complete stop Pull over and review test displayed on App screen AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 12... -
Page 13: Reviewing A Test
Workshop Pro with the supplied Thermal Bluetooth Printer, if you haven’t done this yet just continue through the following print Figure 21 procedure and the app will redirect you to the AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 13... -
Page 14: Printing A Test
(Error! Reference source not found.21). 5.5 Printing a test 5.5.1.1 Saving the test to read with NetBrake® ® 5.5.1.2 The Workshop Pro is capable of saving test information in a format that will enable the AutoTest ® ® NetBrake software suite to generate reports for tests. NetBrake is a suite of software that allows a user to database brake tests and report on sites, vehicles, and fleets of vehicles. - Page 15 Now copy the contents of the Folder (or the Folder itself) to a location on your local Computer and note where it is stored. Using the NetBrake software you need to import this new directory (refer to ® NetBrake guide for steps). ® NetBrake ® AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 15...
-
Page 16: Database
Delete Test you’re after. View Info This will bring up the test option prompt ( Figure ) where you can choose the option you desire. Figure 26 AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 16... -
Page 17: Settings
For instructions refer to of the manual. This button is only active if the Workshop Pro is not activated. Once activated pressing the Activation button will not do anything. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 17... -
Page 18: Calibration
Calibration button NB. If a tracible calibration is required, this can be obtained by sending your devices to the nearest Authorised Service Centre. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 18... -
Page 19: Bluetooth
1. Swipe down from the top of the screen to show a quick view of settings. 2. Hold down a finger on the Bluetooth icon as shown below for a long press (approx. 2 seconds). This will open the Bluetooth settings. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 19... - Page 20 5. Press a device to pair with it (and enter a code if required: check with the device manual for the specific code). Figure 30 Figure 31 AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 20...
-
Page 21: Device Activation
Workshop Pro will prompt you for any available software updates. We strongly recommend you leave this enabled as it will help you keep the Workshop Pro up to date with the most recent features and fixes. AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1 Page 21... -
Page 22: Return Of Workshop Pro
Burson Auto Parts Store or find your nearest international distributor: http://www.autotest.net.au/distributors/. Should you have any further problems, you may contact the AutoTest Service Department by Phone: (+61 3)88403016 AutoTest WorkshopPro10 User Manual - User Manual User Manual v1.1... - Page 23 NOTES: Test Auto Products Pty Ltd 61-63 Parsons St Kensington VIC 3031 Australia Phone: (+61 3) 8840 3000 Sales:(+61 3) 8840 3017 sales@autotest.net.au Service: (+61 3) 8840 3016 service@autotest.net.au www.autotest.net.au...
