Congratulations and thank you for choosing this BT058 Bluetooth wireless speaker which enables to
listen music from A2DP Bluetooth source device such as MP3 player, computer, mobile phone,
smartphone or tablet PC. You can also connect this wireless speaker to notebook computer or
desktop computer via 3.5 mm Jack stereo audio wire (not included).
The speaker support APTX technology enabling to have digital loss less high definition sound from
Bluetooth source.
Switching between music and phone calls, speaker also allows you to answer or make calls
with the Bluetooth-enabled smartphone while you are listening to music.
After you ended the call, the music will follow to be streamed in few seconds.
This device is intended to be used for domestic household.
Technical specification
Bluetooth wireless speaker
•
Output power: 3W RMS
•
Compatible with iPhone/iPad/Windows 8/Android
•
Compatible with Bluetooth 2.1+EDR,A2DP 1.2,AVRCP 1.0
•
Frequency response: 90 Hz – 20000 Hz
•
Sensitivity: 80 dB+/-2 dB
•
SNR (signal to noise radio) > 76 dB
•
Powered by Lithium battery rechargeable by USB in 2 hours
•
•
Buttons: Play/Pause/Volume-/Volume+/Previous file/Next file/Handsfree,Power ON/OFF
Jack stereo plug for connection to audio device
•
Working range up to 10 meters/32 feet in open space
•
Plug type: micro USB, 3.5 mm stereo Jack
•
Dimensions in mm: 61 x 61 x 71 (HxWxD)
•

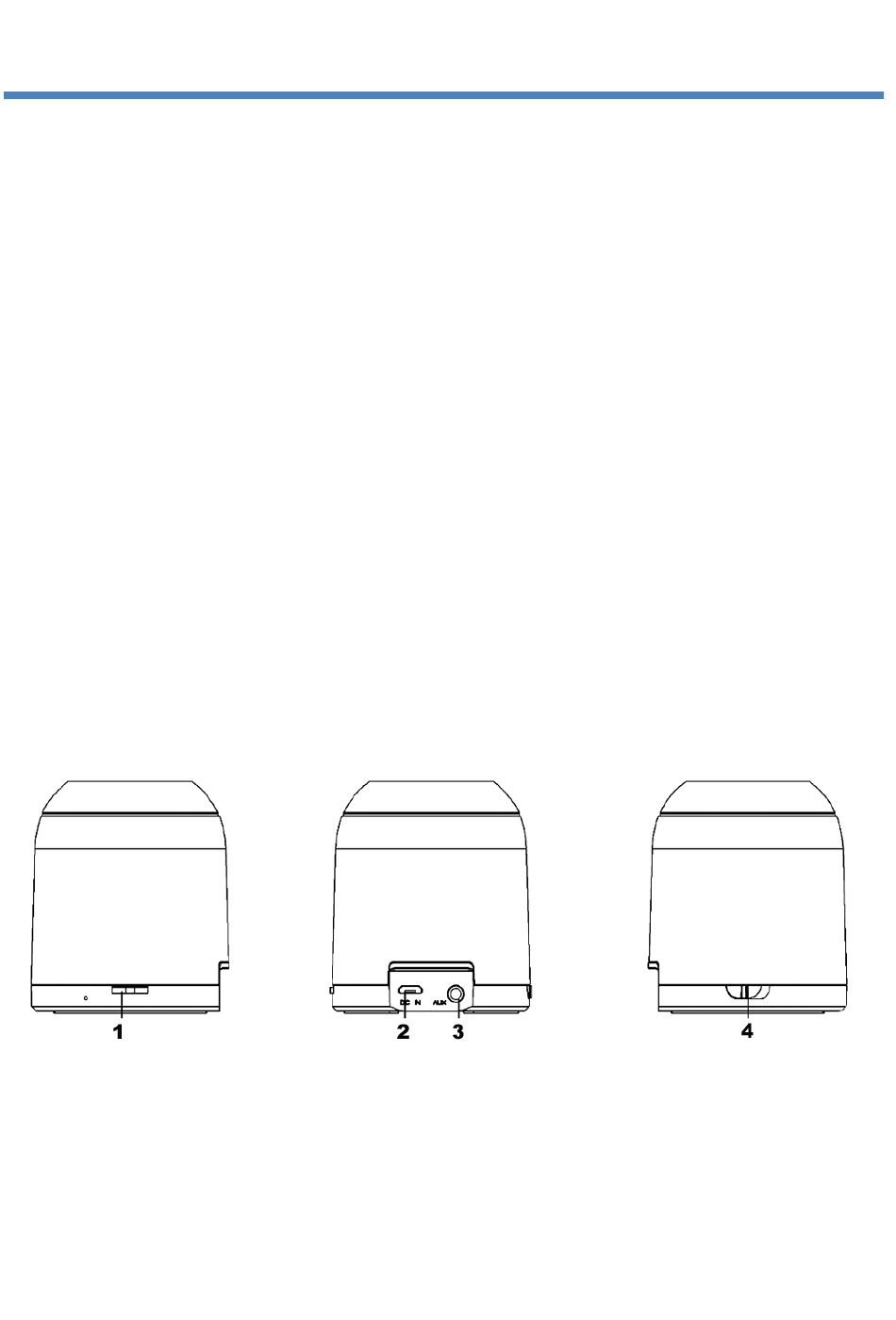

Speaker buttons
1 : Play/Pause/Volume-/Volume+/Previous file/Next file/Handsfree button
2 : Micro USB plug to charge the speaker
3 : 3.5 mm Jack stereo Aux plug
4 : ON/OFF switch
Installation
Put the speaker on plane surface. Adjust according to your desire the position and the distance of the
speaker to your Bluetooth peripheral. Put the power switch to position ON.
The LED indicator will lit in blue. You have to pair the BT058 speaker to your Bluetooth device.
BT058 WIRELESS SPEAKER
INSTALLATION GUIDE
Advertisement
Table of Contents
Related Manuals for Connectland BT058
Summary of Contents for Connectland BT058
- Page 1 Put the speaker on plane surface. Adjust according to your desire the position and the distance of the speaker to your Bluetooth peripheral. Put the power switch to position ON. The LED indicator will lit in blue. You have to pair the BT058 speaker to your Bluetooth device.
- Page 2 If you need to pair BT058 speaker with another Bluetooth device, power off the speaker and power on again the speaker. You have to start another pairing sequence.
- Page 3 3.5 mm Jack stereo plug to Aux plug of the BT058 speaker. You have to connect to audio output in green plug of your computer. You have to adjust the volume of your audio device to set the volume. LED indicator blinks in blue when you are using the speaker in Jack stereo mode.
