Summary of Contents for Kamasa-TOOLS K 9901

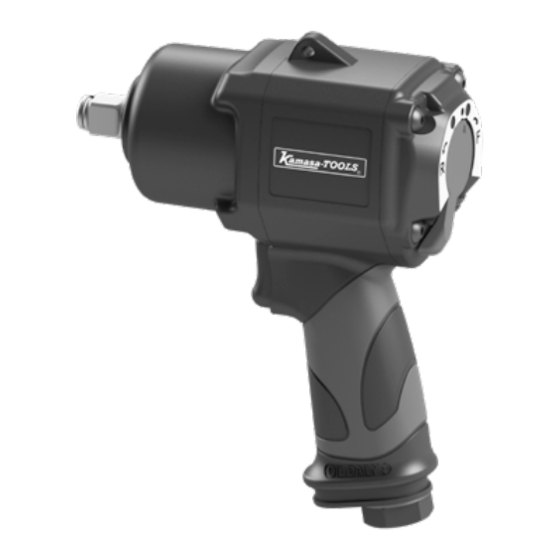

- Page 1 Pneumatic K 9901 impact wrench...
- Page 2 This tool is designed for tightening and loosening of threaded fasteners within the range as specified by the manufacturer. It should only be used in conjunction with suitable impact type 1/2” square driver nut running sockets. Only use sockets which are of the impact type. SAFETY AND PRECAUTION Always use impact resistant eye protection when operating a pneumatic tool.
- Page 3 13 Do not modify this power tool. Modifications can reduce the effectiveness of safety measures and increase the risks to the operator. 14 Do not use the tool if it has been damaged. 15 Failure of a work piece, accessories or even of the power tool itself can generate high-velocity projectiles.
- Page 4 PRODUCT SPECIFICATIONS Model No. K 9901 Revolutions 8300 rpm Max.torque 1356 Nm Air connection 1/4” NPT Air consumption 150 l/m Max. air pressure: 6,3 bar Sound level 99,7 dBA Length 150 mm Weight 1600 g MAJOR COMPONENTS Twin hammer impact mechanism...
- Page 5 MAINTENANCE If the tool is used every day, disassemble and inspection is recommended every 6 months. Dry the filter and the air inlet of the tool. Lubricate the quick connect coupling to prevent blocking. Air tools require lubrication throughout the life of the tool. Since the compressed air driving the motor contains water, the tool must be lubricated daily.
- Page 6 PARTS K 9901...
- Page 7 PARTS LIST K 9901 PARTS NO. DESCRIPTION Q'TY PARTS NO. DESCRIPTION Q'TY Oil Seal Reverse Valve Hammer Case O-Ring Bushing O-Ring KR 9901-1 Anvil Collar KR 9901-7 Rear Gasket KR 9901-2 O-Ring Rear Cover KR 9901-3 Anvil (1/2" DR) Reverse Lever...
- Page 8 K 9901 www.kamasatools.com...
