Summary of Contents for ArcTiv Technologies Server Racks

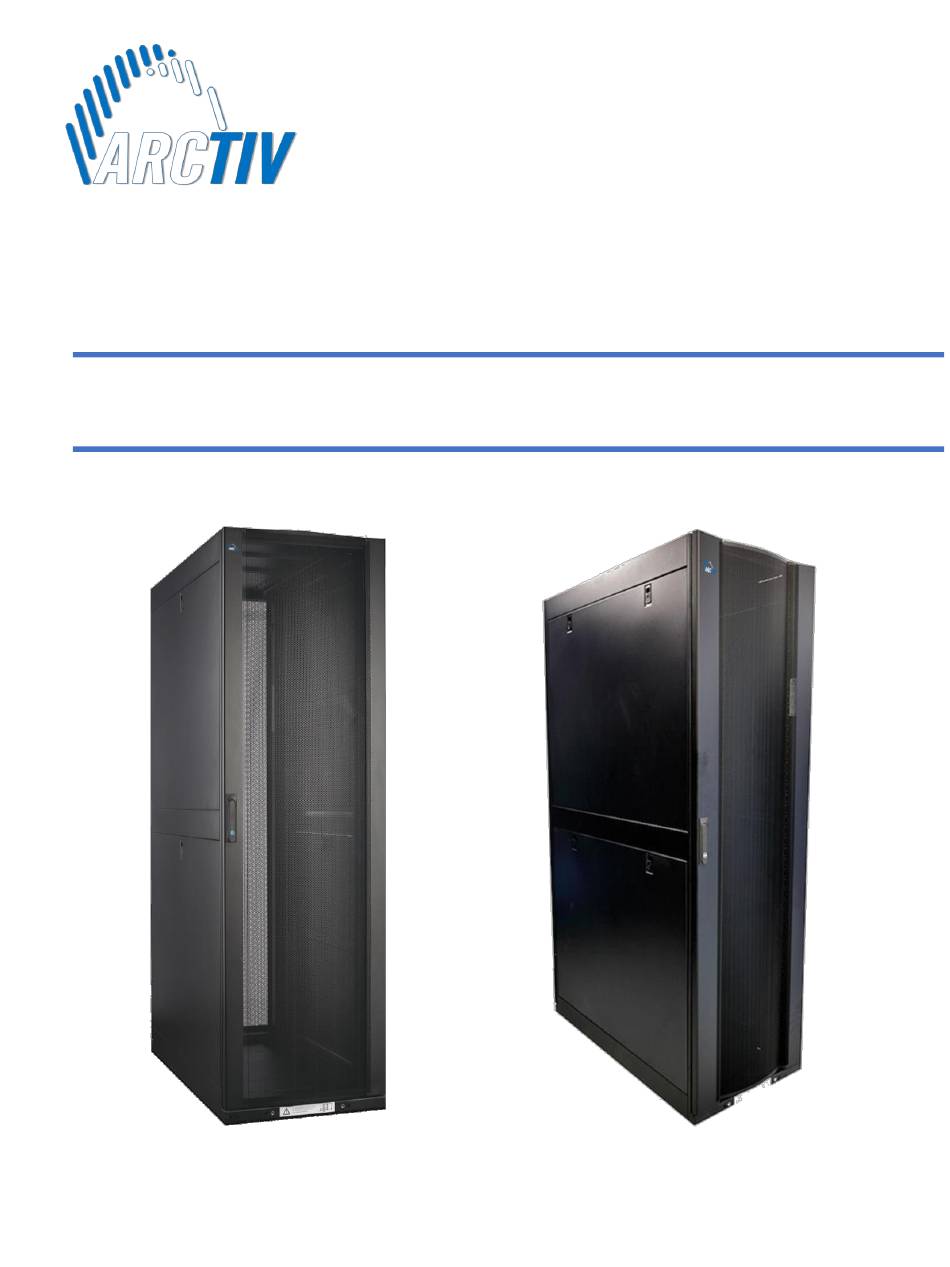

- Page 1 USER MANUAL: ARCTIV SERVER & NETWORK RACKS ™ USER MANUAL Server & Network Racks SERVER RACKS NETWORK RACKS © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01...
-
Page 2: Table Of Contents
USER MANUAL: ARCTIV SERVER & NETWORK RACKS TABLE OF CONTENTS PRODUCT OVERVIEW ………………………………………………………………………………………………………………………………………. SAFETY INSTRUCTIONS ……………………………………………………………………………………………………………………………………. COMPONENT IDENTIFICATION ……………………………………………………………………………………………………………………….. PACKAGING …………………………………………………………………………………………………………………..……………………………….. ASSEMBLY ………………………………………………………………………………………………………………………………………………………. CONFIGURATION ……………………………………………………………………………………………………………………………..…………….. WARRANTY ..………………………………………………………………………………………………………………………….……………………….. © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01... -
Page 3: Product Overview
ArcTiv Server and Network Racks offer greater capacity, load rating and cable & airflow accessories to manage your critical IT systems. The Server Racks are compatible with ArcTiv Aisle Containment and PDU’s for fast installation and reliable operation. The key features of the product line include: Curved Door with Heavy Duty Castors &... -
Page 4: Safety Instructions
• Do not reship the enclosures and containment with additional equipment. The combined weight of the enclosure and installed equipment must not exceed the load capacity of the pallet. ArcTiv Technologies is not responsible for any damage that occurs during reshipment. -
Page 5: Component Identification
It is better to install the optional bottom plate during steps 4 and step 5. Secure the bottom plate to the corner bracket with M4*8mm self-tapping screws (4pcs), the bottom plate is tightened to the enclosure with M8*25mm hexagon headed bolt. Note: Refer to the mounting instructions before installing the bottom plate. © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01... -
Page 6: Packaging
CARTON B-19" RAILS & BEAM KITS Carton B Parts List Quantity Horizontal beam Vertical rail, left Cable mgmt. rail Vertical rail, right CARTON C-19" SIDE PANELS KITS Carton C Parts List Quantity Side panel assy © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01... -
Page 7: Assembly
USER MANUAL: ARCTIV SERVER & NETWORK RACKS ASSEMBLY Step 1: Connect corner brackets to the lower beams with 2 screws. Step 2: Connect each of 6 beams to the rear door with 2 screws. © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01... - Page 8 USER MANUAL: ARCTIV SERVER & NETWORK RACKS Step 3: Fasten each of 6 beams in Step 2 to the front door with 2 screws Step 4: Fasten corner brackets in Step1 to the front with 2 screws © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01...
- Page 9 Place M6 washers between the screws and the equipment mounting rails. Step 6. Install the cage nuts to the desired square openings as step 5. Fasten the rails to the mounting beams with 3 screws and M6 washers, two rails for each side. © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01...
- Page 10 Step 7. While holding the top cover, arrange the 2 pins near the rear of the top cover into the holes in the enclosure frame. Pull the roof panel downward until it’s close to the enclosure frame. Step 8. Open side panel latch by sliding it downward, then install side panels into the frame. © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01...
-
Page 11: Configuration
Note: The square holes at the middle of each U-shaped vertical rail are numbered and also include a small notch to aid identification. When installing equipment, use cage nut to secure your equipment to the U-shaped vertical rail. © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01... -
Page 12: Warranty
If you have questions about this product or need technical support, please contact us or visit our website. ArcTiv Technologies, LLC 30 N Gould St Ste 22117, Sheridan, WY 82801 sales@arctiv-tech.com www.arctiv-tech.com ™ Latest Revision: June, 2021 © 2021 ArcTiv Technologies, LLC ATSVR-NWR-MANUAL-01...
