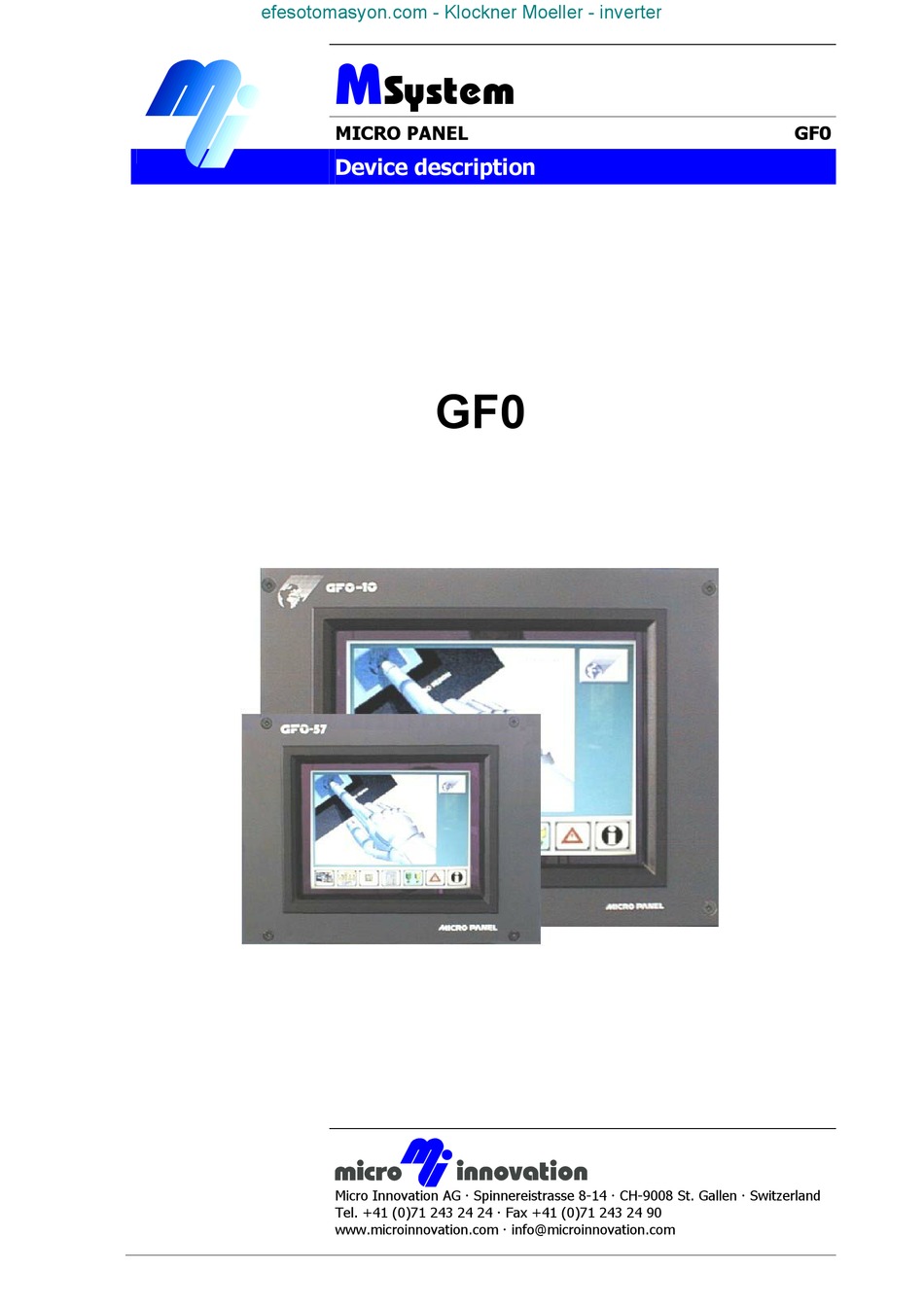

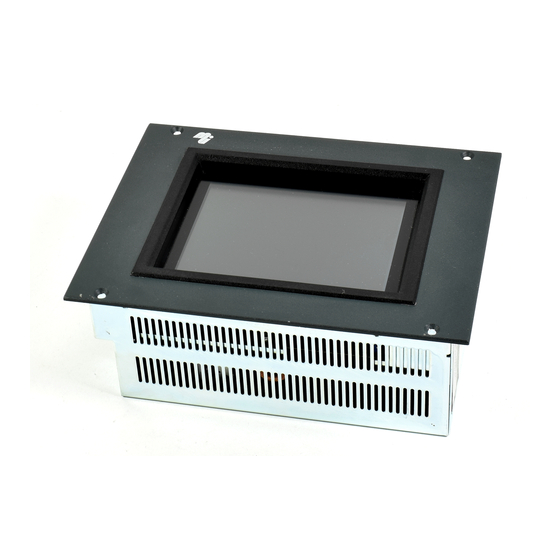

- Page 1 - Klockner Moeller - inverter System MICRO PANEL Device description Micro Innovation AG Spinnereistrasse 8-14 CH-9008 St. Gallen Switzerland Tel. +41 (0)71 243 24 24 Fax +41 (0)71 243 24 90 www.microinnovation.com info@microinnovation.com...
- Page 2 Micro Innovation AG. Micro Innovation AG does not accept any liability for damages arising from the use of any incorrect or incomplete information contained in this documentation or any information missing therefrom.
- Page 3 Hardware, software, operatingsystems and drivers must only be used for the applications specified in this description and only in conjunction with the components recommended by Micro Innovation AG. Warning ! No warranty claims will be recognized for faults arising from the improper handling of any device.
-
Page 4: Table Of Contents
12 Function and control LEDs ................25 13 Touch Screen ....................26 13.1 Prinzipielle Funktion des Touch-Screen............. 26 13.2 Power up function test..................26 13.3 Cleaning and maintenance of the Touch Screen ..........26 Technical subject to change M000235-01.DOC © by Micro Innovation... - Page 5 14 Display........................ 27 15 Maintenance and repair ..................28 16 Disposal ......................29 17 Technical data ....................30 18 EC Conformity ....................32 19 UL-Listing......................33 20 Revision History ....................34 Technical subject to change M000235-01.DOC © by Micro Innovation...
-
Page 6: Explanation Of Symbols
This indicates important information on the product or section of the operating instructions to which special attention should be given. The Note pictogramme has the following meaning: Indicates important instructional information. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 7: Introduction
Micro Panel GF0 versions. The illustrations in this document are for the 10" version (→ Section 3) unless stated otherwise. The designation and function of the terminals and signals are the same, however, for all versions. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 8: Device Versions
Seal for mounting the unit • • • Power supply plug connector (3-pole plug-in screw • • • terminal, Phoenix, Type : MSTB 2.5/3-ST-5.08) • • • Device description (See Section 3 for device description) Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 9: Device Mounting
The cooling slits must be kept clear to ensure the proper cooling of the system. Avoid exposing the flat screen to direct sunlight. After mounting the rear of the device must be accessible (Download button). Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 10: Dimensions Of The 5.7" Devices
The devices with threaded bolts (-xx1, -xx3) have identical outer dimensions. The fixing hole patterns of the Micro Panel GF0 vary according to the version concerned. Refer to the following section for the front panel cutouts of specific versions. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 11: Front Panel Cutouts For 5.7" Devices
203x147mm (centrally to fixing holes) Fixing screws: M4 countersunk screw Cutout and hole pattern for device versions with front and threaded bolts (-xx1, -xx3) Front panel cutout : 203x146mm (centrally to fixing holes) Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 12: Dimensions Of The 10" Devices
The devices with threaded bolts (-xx1, -xx3) have identical outer dimensions. The fixing hole patterns of the Micro Panel GF0 vary according to the version concerned. Refer to the following section for the front panel cutouts of specific versions. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 13: Front Panel Cutouts For 10" Devices
316x244 mm (centrally to fixing holes) Fixing screws: M5 countersunk screw Cutout and hole pattern for device versions with front with threaded bolts (-xx1, -xx3) Front panel cutout : 316x244 mm (centrally to fixing holes) Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 14: Mounting Instructions
The conter frame must be ordered separately. Conter frame for GF0-57xxx-xx0, MDS Order No. : 65 18 972060 Conter frame for GF0-10xxx-xx0, MDS Order No. : 65 20 963100 Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 15: Connecting The System Power Supply
(Plug-in screw terminal, Phoenix: MSTB 2.5/3-ST-5.08) Section of the GF0-10 connector panel with a view of the system power supply plug connector and the fuse. Designation Function +24V +24V power supply Functional ground 0V power supply Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 16: Connection To The Communication Interface
Special care should be taken with the connection to ensure interference-free operation. The EMC values stated in the technical data can only be guaranteed if the cables are prepared according to the specifications. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 17: Preparing The Shield Connections
If plug connectors are used for communications cards (not D-subminiature plug connectors to DIN 41652), then follow the instructions in the relevant document descriptions. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 18: Connection And Function Of The Programming Port (Prog Port)
Pin No. Assignment Function Not assigned Receive data Send data Data terminal ready Ground Ready for operation Not assigned Not assigned (+5V) +5V power supply (→ Section 11) Case Shield Cable shield Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 19: Data Transfer To The Micro Panel Gf0 (Download Button)
Pressing the Download button calls up the functions for loading project data and/or the Runtime (Download) (→ Section 9.1 / 9.2). The Download button is located on the rear of the Micro Panel GF0. Download button Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 20: Loading The Runtime (Grsw)
(→ Section 9.2). MAINBOARD FIRMWARE VERSION 3.XX (WIN32) > SERIAL DOWNLOAD < - waiting for host .. System mask for loading the runtime (GRSW) (Figure GF0-57xQD) Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 21: Loading The Project Data (Download)
The system indicates the reason for the change to Download mode in the first line of the screen. To quit Download mode press the Download button or briefly interrupt the power supply. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 22: Communications Cards And Com Slot
(e.g. PLC) or the fieldbus system is implemented using one of the several cards available. Please contact your local Micro Panel dealer or the Technical Support at Micro Innovation AG for information concerning currently available communications cards and communication protocols. -
Page 23: Expansion And Configuration Options
The two screws required (M2.5 x 5) are supplied with the memory expansion. COM SLOT View into the opened Micro Panel GF0-10. The memory expansion is located underneath the COM SLOT. Fitted memory expansion (8 MByte) Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 24: Additional 5V Power Supply On Programming Port (Prog Port)
Scale approx. 1:1 Only operate the memory expansion when it is fastened with the screws specified! Do not use any non-Micro Innovation components for memory expansion. Only original hardware from Micro Innovation AG may be used. 11.3 A (PROG PORT) -
Page 25: Function And Control Leds
When the system voltage is switched on, both Touch LEDs are activated for approx. 0.3 as a function check. COM SLOT Section of the Micro Panel GF0 connector panel with a view of the control LED, the Download button and the COM SLOT. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 26: Touch Screen
Ensure that the surface is not scratched or scoured, especially when removing hard deposits and abrasive dust. Do not expose the front of the device to solvents which may corrode and destroy the plastic frame (frame material: polymethylmethacrylate, PMMA). Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 27: Display
This can be carried out on the Touch Panel by the operator. Further information on adjusting the brightness of the backlight and the contrast is provided in the documentation of the GALILEO design software. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 28: Maintenance And Repair
The inside of the device front panel should be cleaned regularly to ensure trouble-free IR touch screen operation (→Section 13.3). Repairs to the Micro Panel GF0 must only be carried out by the manufacturer or Micro Innovation repair centres. Contact in this case your local Micro Panel dealer or the Technical Support at Micro Innovation AG. -
Page 29: Disposal
- The clock module contains a sealed lithium battery. (Real Time Clock, Dallas DS12887 or STMicroelectronics M48T86PC1) - The backlights for units with LCD displays are provided by fluorescent tubes that contain mercury. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 30: Technical Data
IEC 1000-4-2, EN 61000-4-2, 6 kV / 8 kV IEC 1000-4-3, EN 50140, 10 V/m IEC 1000-4-4, EN 61000-4-4, 2 kV EN 61000-4-6, ENV 50141, 10 IEC 1000-4-8, EN 61000-4-8, 10 A/m Radio interference CISPR 11, EN 55011, Class A Technical subject to change M000235-01.DOC © by Micro Innovation... - Page 31 20 W Internal 2.5 A slow, accessible from outside Fuse protection (→ Section. 6) Maximum disconnection (→ Section. 6) capacity Interfaces 1 slot for communications card ( → Section. 10) Technical subject to change M000235-01.DOC © by Micro Innovation...
-
Page 32: Ec Conformity
(Immunity) The following standard was used to assess the electrical safety of the Micro Panel GF0: EN 60950 1999 Manufacturer: Micro Innovation AG Manufacturer address: Spinnereistrasse 8-14 9008 St. Gallen Switzerland Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 33: Ul-Listing
Incorporation and meet the applicable United States and Canadian safety standards. To assess the safety of the Micro Panel GF0 the safety standard UL 1950 (Safety of Information Technology Equipment, Including Electrical Business Equipment) was used. Technical subject to change M000235-01.DOC © by Micro Innovation... -
Page 34: Revision History
- Klockner Moeller - inverter Device description GF0 MICRO PANEL Revision History 20 R EVISION ISTORY Index Date / Visum Alteration 12.11.03/ RA Included in DokV Technical subject to change M000235-01.DOC © by Micro Innovation... - Page 35 - Klockner Moeller - inverter MICRO PANEL Device description GF0 Revision History Technical subject to change M000235-01.DOC © by Micro Innovation...
- Page 36 Device description GF0 MICRO PANEL Revision History Micro Innovation AG Spinnereistr 8-14 CH-9008 St. Gallen Switzerland ++41- 71 243 24 24 ++41- 71 243 24 90 email info@microinnovation.com homepage : http://www.microinnovation.com Technical subject to change M000235-01.DOC © by Micro Innovation...
