SANDENVENDO AMERICA INC

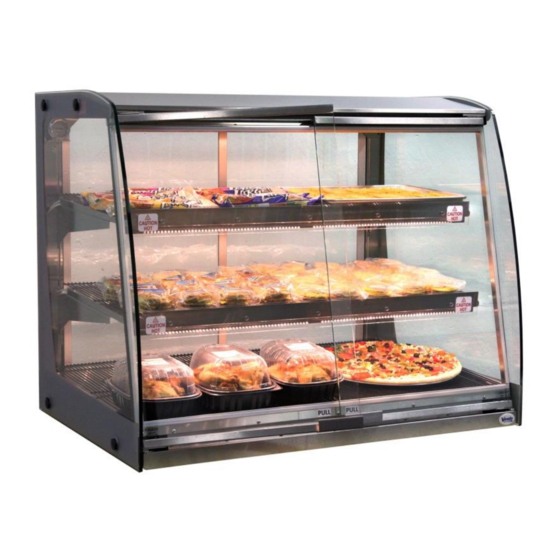

HOT FOOD DISPLAY
Technical Service Manual
HFD000006, HFD000007
HFDC00002
HFDM00002
1213686f ECN 55522
M
ODELS HFD000006 & 7
HFDC00002
HFDM00002
HFDH00001
HFDHC0001,2,3,4
Table of Contents
Commitment to Safety........................2
Safety Warnings..................................3
Parts................................................4
Operation.........................................8
Troubleshooting..............................12
Controller Connections.....................13
HFDH00001
HFDHC0001,2,3,4
1
Advertisement
Summary of Contents for Sanden Vendo HFD000006
-
Page 1: Table Of Contents
SANDENVENDO AMERICA INC HOT FOOD DISPLAY Technical Service Manual ODELS HFD000006 & 7 HFDC00002 HFDM00002 HFDH00001 HFDHC0001,2,3,4 Table of Contents Commitment to Safety…….….…...….…2 Safety Warnings…….……..…….....3 Parts..…….……………………………..4 HFD000006, HFD000007 Operation……………………..….……..8 Troubleshooting……………..…….…...12 Controller Connections..……..…..……13 HFDC00002 HFDH00001 HFDM00002 HFDHC0001,2,3,4 1213686f ECN 55522... -
Page 2: Commitment To Safety
SANDENVENDO AMERICA INC A COMMITMENT TO SAFETY The SandenVendo is committed to safety in every aspect of our product design. SandenVendo is committed to alerting every user to the possible dangers involved in improper handling or maintenance of our equipment. The servicing of any electrical or mechanical device involves potential hazards, both to those servicing the equipment and to users of the equipment. -
Page 3: Safety Warnings
SANDENVENDO AMERICA INC SAFETY WARNINGS The HFD is for indoor use only. Do not use near water or in condensing humidity. To prevent electric shock or fire, do not kink, pull, or pinch the power cord, and insure no equipment is resting on the power cord. If the power cord is damaged, unplug and replace. Do not connect with other plugs. -
Page 4: Parts
SANDENVENDO AMERICA INC PARTS HFD000006, HFD000007 Lamp Lamp Item Part # Description Socket 1158489 Gasket, Door, Side 1158477 Gasket, Door, Upper 1158491 Gasket, Door, Lower 1201293 Controller 1207143 Heater Kit (not shown) 1207441 Shelf Assembly, Upper Left 1207465 Shelf Assembly, Middle Left 1207415 Shelf Assembly, Bottom 1207476... - Page 5 SANDENVENDO AMERICA INC HFDC00002 Rack Rack Combo Serve Front Door & Shelf Parts Item Part # Description 1200392 Left Door Assembly 1200392-1 Right Door Assembly 1185603-1 Frame Gasket (Horizontal, 2x) 1185603-2 Frame Gasket (Vertical, 2x) 1187405 Damper (one each side) 1202273 Extension Spring (one each side) 1199716...
- Page 6 SANDENVENDO AMERICA INC HFDM00002 1178854 Lamp Guard 1166955 Side Glass (no decal) 1165355 Left Decal 1207555 Shelf Assembly 1207567 Shelf Assembly 1177198 Front Door 1182055 Middle & Upper Shelf Rack, Black 1178798 Shelf Guard 1203125 Caution Hot Label 1178038 Vertical Rear Gasket (not shown) 1158685 Side Gasket...
- Page 7 SANDENVENDO AMERICA INC HFDHC0001,2,3,4 1185603-3 Horizontal See last page for Controller Connections Frame Gasket for electrical component part numbers 1226236 Shelf Guard 1226272 Side Glass (no decals) 1158696-2 Side Gasket 1158696-1 Front Gasket 1226352 Top/Middle Rack (not shown) 1185603-4 Vertical Frame Gasket 1226399 Bottom 1226156 Left Front Door (HFDHC0001,2)
-
Page 8: Operation
SANDENVENDO AMERICA INC OPERATION Display and Keypad Time Use left or right buttons to adjust shelf I/O button button temperature and timers down or up Upper left shelf (except HFDM) Upper right shelf Middle left shelf (except HFDM) Middle right shelf USB port Lower right shelf Lower left shelf... - Page 9 SANDENVENDO AMERICA INC Push the I/O button to turn on the HFD and lock in this setting. Ambient Temperature Display To turn the ambient temperature display on or off: with the controller on, press and hold the Time button and press the I/O button. (This feature is disabled in firmware revision 4.01). Front Door If the front door is opened (HFD6 and 7 only), the controller turns off only the lights.
- Page 10 SANDENVENDO AMERICA INC Any text may follow here There can be no spaces or blank lines. A line is terminated by pressing Enter. The only variables that are allowed to change are the date code, shelf temperatures and times, the 0 or 1 after CF:, DA:, and DS:, and the comment at the end of the file.
- Page 11 SANDENVENDO AMERICA INC HFDH and HFDHC SV01 HFDH and HFDHC 00HC Left Side Right Side UL:245,2:00,2:00 Heater Heater Left Right Left Right ML:245,2:00,2:00 Setpoint Setpoint Timer Timer Timer Timer LL:245,2:00,2:00 ºF ºF UR:245,2:00,2:00 2:00 2:00 2:00 2:00 MR:245,2:00,2:00 2:00 2:00 2:00 2:00 LR:245,2:00,2:00...
-
Page 12: Troubleshooting
SANDENVENDO AMERICA INC TROUBLESHOOTING Unplug unit before servicing Symptom Possible Cause Remedy Power cord unplugged Plug HFD cord in outlet. No power at outlet Check voltage at outlet (115VAC) Turn on breaker. HFD6 & 7: remove HFD circuit breaker off lower rear cover to access breaker. -
Page 13: Controller Connections
SANDENVENDO AMERICA INC CONTROLLER CONNECTIONS Left / Right as viewed from the controller side 1216614 External 1201358 Heater 6x: HFDH, HFDHC Power 1201358 Heater 4x: HFDM Cord 1226675 Heater 6x: HFDH, HFDHC 1159525 Lamp 6x: HFD6 & 7, HFDC 1178877 Lamp 3x: HFDM 1161921 Except 1178877 Lamp 6x: HFDH, HFDHC...
