morse 96MK1939-P Operator's Manual

The Specialist In Drum Handling Equipment
Contents
Parts Lists and Diagrams. . . . . . . . . . . . . . . . . .
Installation / Assembly Instructions. . . . . . . . . .
Service Instructions. . . . . . . . . . . . . . . . . . . . 2 - 4
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc.
ITEM # QTY. PART #
1 1 96MK1939-20
2 1 96MK1728-4
3 1 96MK1728-2
4 * 1 96MK1728-7
6 * 1 96MK1728-5&6
7 1 1035-P
8 1 1040-P
9 * 1 96P1-20
10 1 96CP13-10RP
11 2 96CP13-10RP
12 * 1 96P1-12RP
13 1 96CP13-13RP
14 1 96MK1939-3RP
15 1 96CP13-23
16 1 96P1-16
17 1 96CP13-9
18 1 96CP13-12
19 1 96MK1939-P
* Included in item # 1, Repair Kit, 96MK1939-20
service@morsedrum.com
Form PL96MK1939 (0604-____)

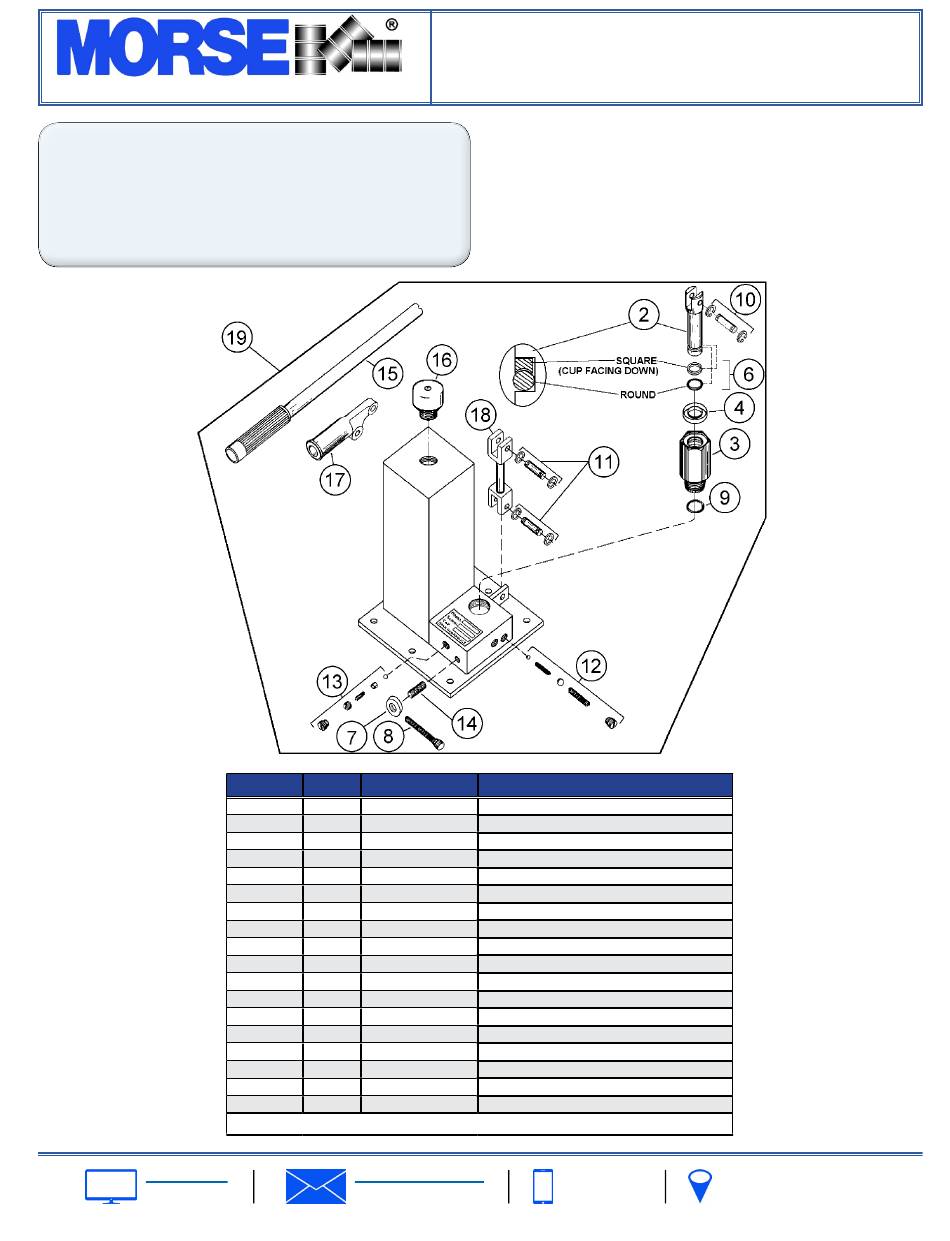

MODEL 96MK1939-P
Star Hydraulic Pump
Operator's Manual
Page
for Star Hydraulic Pump
1
Model 96MK1939-P
2
Serial Number 0604 to ____ (MMYY)
DESCRIPTION
REPAIR KIT (Includes Items Marked *)
PUMP PISTON
PUMP BARREL
PUMP PISTON WIPER
PUMP PACKING AND BACK UP
COLLAR, 1/2", RELEASE VALVE
1/4 - 20 X 2-1/2 SHCS STL
PUMP BARREL "O" RING
PISTON PIN (INCLUDES RINGS)
LINK PIN (INCLUDES RINGS)
PUMP VALVE (COMPLETE)
OVERLOAD VALVE (COMPLETE)
RELEASE VALVE (COMPLETE)
LEVER HANDLE
BREATHER SCREW
PUMP SOCKET
PUMP LINK
PUMP, HYD, HAND, STAR
