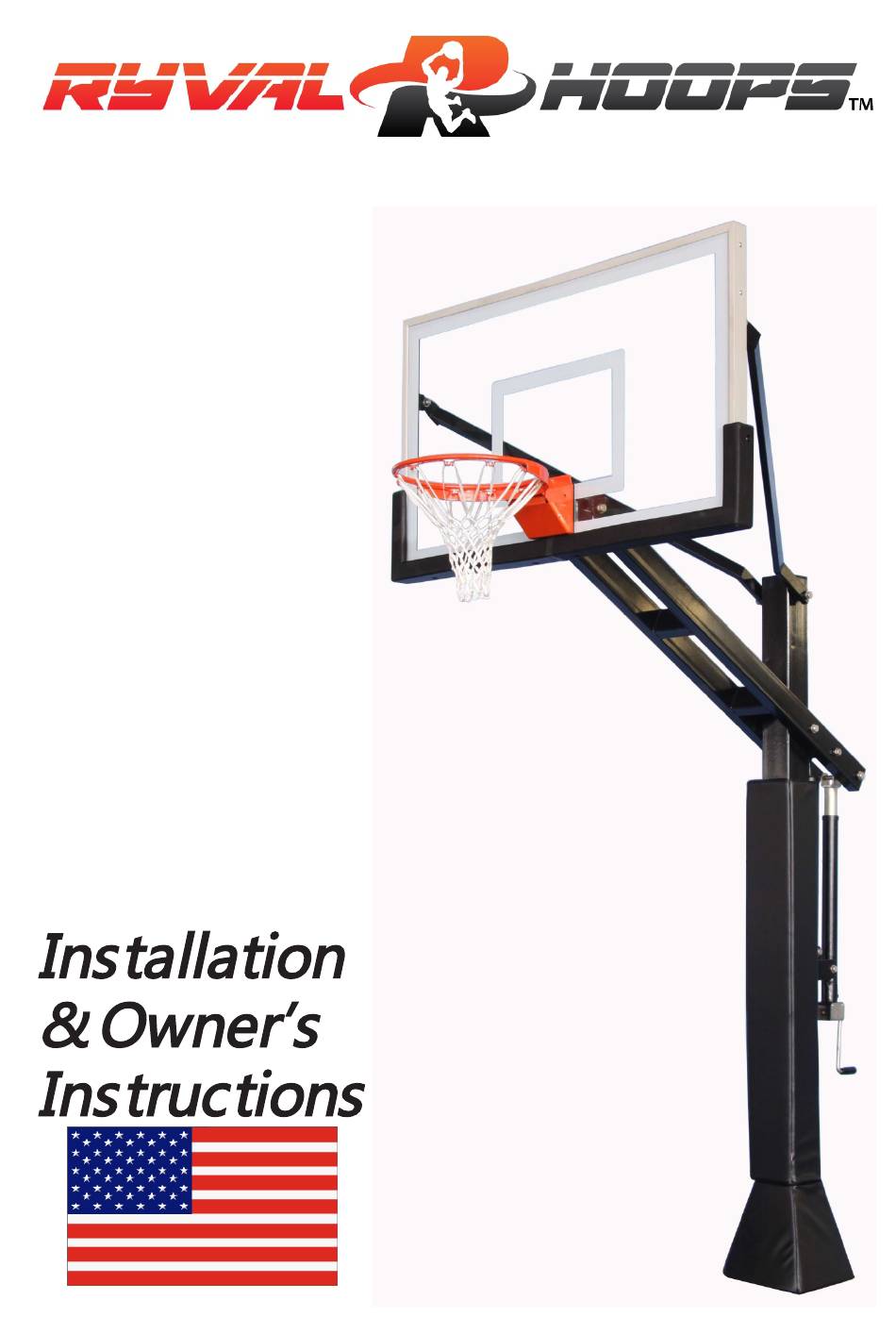

- Page 1 C554 Series ADJUSTABLE HEIGHT GOAL SYSTEM Version 4...
- Page 2 Thank you and congratulations for purchasing a Ryval Hoops Goal - the finest basketball goal system on the market today! You will discover that Ryval Hoops is unsurpassed in product innovation, quality and integrity in the basketball equipment industry. We are focused on designing, engineering and products that meet and exceed expectations of today’s toughest playing environments and demanding players.
- Page 3 Consult Ryval Hoops if you do not W W W. RY VA L H O O P S. C O M 1 - 8 0 0 - 7 8 7 - 0 6 5 5...
- Page 4 NOTE: At rim height 10 foot, distance from the face of backboard to the front of Main Post (A) is 36". Use these specs to calculate desired backboard overhang of driveway/court. 21" STEP A a. Dig a hole 48" deep and 21"x 21"square . The edge of the hole should be flush with the edge of the playing surface.
- Page 5 STEP B A. Thread a Hex Nut (U4) onto each of the J-Bolts (U2). Securely tighten the Nuts all the way down to the end of the threads. B. Slide the threaded end of the J-Bolts through the holes in the Anchor Template (U1) and secure each J-Bolt with Hex Nuts (U4) as shown.
- Page 6 STEP D a. Position the J-Bolt Template (U1) over the hole so that it is centered, with the sides of the plate square with the sides of the hole. b.Push the J-Bolts (U2) into the concrete until the J-Bolt Template is resting flat against the surface of the concrete.
-
Page 7: Parts List
- � PARTS LIST • .) l 3 • 13 \ y �,, ,," � 19 � ' ' -../ .." PARTS LIST ITEM DESCRIPTION 5"x5"Main Post Actuator Spring-Assist Cartridge Pole padding HARDWARE LIST Gusset Padding Main Extension Arm ITEM QlY DESCRIPTION Upper Extension Arm Backboard... - Page 8 Pass through main post WARNING: Do not pass bolt through cylinder welded onto backside of post. Pass bolt through hole on main post.
- Page 11 Product covered under this warranty will be shipped at the customer’s expense. Ryval Hoops is not responsible for any expense associated with freight, or delivery and installation of the warranted part(s). Ryval Hoops reserves the right to inspect all warranty claim parts for which a claim has been made.
- Page 12 Ryval Hoops does not assume or authorize any person to assume for us, any other liability in connection with the sale of our products. Ryval Hoops shall not be liable for loss of use of the product or other consequential or incidental costs.
