S Fire SF119 Series Installation Wiring Diagram

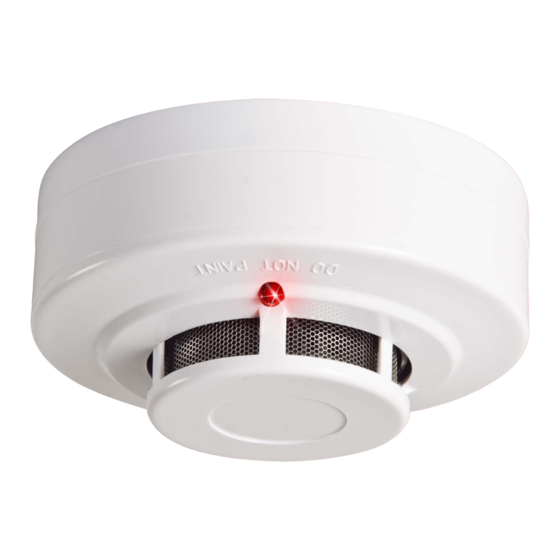

Smoke Detector
TYPICAL WIRING DIAGRAM

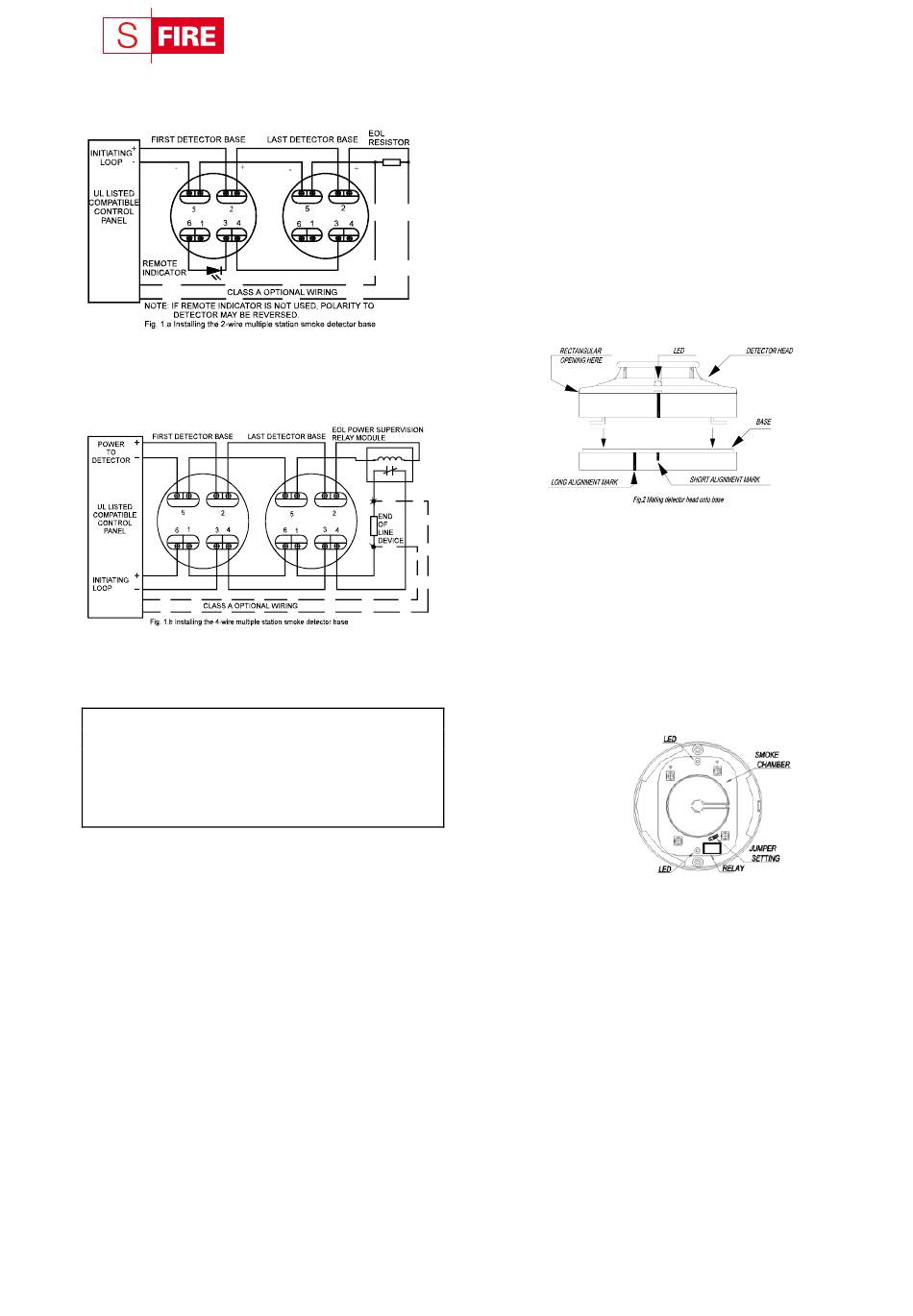

Figure 1.a shows the typical wiring diagram of 2-wire
multiple-station smoke detector system.
DO NOT USE LOOPED WIRE UNDER
TERMINALS 2 AND 5 BREAK WIRE RUN TO
PROVIDE SUPERVISION OF CONNECTIONS
Figure 1.b shows the typical wiring diagram of 4-wire
multiple-station smoke detector system.
DO NOT USE LOOPED WIRE UNDER
TERMINALS 2 AND 5 BREAK WIRE RUN TO
PROVIDE SUPERVISION OF CONNECTIONS
WARNING
TO PREVENT DETECTOR CONTAMINATION
AND SUBSEQUENT
CANCELL-TION, SMOKE DETECTOR MUST
REMAIN COVERED UNTIL AREA IS CLEAN
AND DUST FREE.
INSTALLING THE BASE
1. To insure proper installation of the detector head to the
base, all the wires should be properly addressed at
installation:
(A)Position all the wires flat against terminals.
(B)Fasten the wires away from connector terminals.
2. If you use the jumper wire to connect the poles of
terminal 2 and 5 when testing the detector loop
continuity, be sure to remove the jumper wire prior to
the installation of the detector head.
3. The end-of-line device shown in Figure 1.a & 1.b
should be compatible with the control unit. The
end-of-line supervisory relay used should list the rated
DC power voltage used.
4. Per UL listing, open area smoke detectors are
Photoelectric
WARRANTY
SF119 series
Installation Wiring Diagram
intended for mounting on a ceiling no less than 6
inches from a wall or mounting on a wall than no less
than 4 inches and no more than 12 inches from a
ceiling.
5. The base of smoke detector can be mounted directly
onto electrical junction box such as octagonal (3", 3.5"
or 4"), round (3"), and square (4" length) box without
using any type of mechanical adapter.
INSTALLING THE HEAD
1. Align the components as shown in Figure 2.
2. Mate the detector head onto the base and twist
clockwise to secure it.
3.
Do not install the detector head until the area is
thoroughly cleaned of construction debris, dusts, etc.
The maximum number of smoke detector installed in
the same loop is 30 units.
Fig. 2 Mating detector head onto base
ADJUSTMENT OF THE RELAY POSITION
4-wire type: Adjust the relay set-position for wiring unit to
the security monitoring system by the following steps:
1. The reset position for the relays is at "normal open"
(NO) position, when energizing all the relays.
2. If one needs to adjust the relay set point, use a
screwdriver to loose two screws on the back of the
base. See Figure 3, there is a jump head next to the
relay on the PCB, adjust it to select set point either
"normal close" (NC) or "normal open" (NO) position.
3. Relay contact rating:
1A @30VDC,
0.5A @125VAC.
Fig. 3 Schematic of detector structure
TESTING
1.
All the alarm signal services, releasing device and
extinguisher system should be disengaged during the
test period and must be re-engaged immediately at the
conclusion of testing.
2. After energizing the detector head for approximately
one minute, check to see the indicator red LED
flashing once every 1~3 seconds. If red LED fails to
flash, it indicates the non-functioning of the detector or
faulty wiring. Re-check the wiring or replace the
detector if necessary.
When front cover is open
