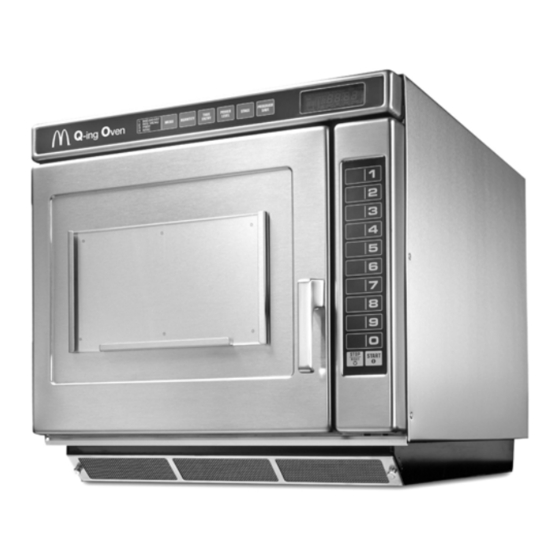

- Page 1 Q’ING OVEN RC5MDTM Equipment Operating Manual Place this equipment chapter in the Place this equipment chapter in the Small Equipment Small Equipment section of section of the Equipment Manual the Equipment Manual This manual is for the exclusive use of...
-
Page 2: Table Of Contents
Microwave Oven Table of Contents LEGEND OF SYMBOLS ..............3 IMPORTANT SAFETY INFORMATION ..........3 WARRANTY ..................5 INSTALLATION..................6 ......................... 6 NPACKING ....................... 6 QUIPMENT LACEMENT OPERATION..................7 ........................ 7 OOKING ISPLAY ....................... 7 ROGRAMMING ISPLAY DISPLAY AND FEATURES ..............8 ....................8 INGLE ROGRAMMING .................... -
Page 3: Legend Of Symbols
Microwave Oven 1. Legend of Symbols Electricity 2. Important Safety Information Throughout this manual, you will find the following safety words and symbols that signify important safety issues with regards to operating or maintaining the equipment. In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of the unit. - Page 4 Microwave Oven Never, use paper, plastic, or other combustible materials that are not intended for use in a microwave oven. When cooking with microwave safe paper, plastic, or other combustible materials, follow manufacturer's recommendations on product use. Do not use paper towels, which contain nylon or other synthetic fibres. Heated synthetics could melt and cause paper to ignite.
-
Page 5: Warranty
Microwave Oven 3. Warranty INTERNATIONAL COMMERCIAL MICROWAVE OVEN LIMITED ONE YEAR WARRANTY LIMITED THREE YEAR WARRANTY Amana Appliances warrants this product when the original purchaser uses the oven for commercial food service preparation. FIRST YEAR Amana Appliances will replace any part, f.o.b. Amana, Iowa, U.S.A., which proves to be defective due to workmanship or materials. -
Page 6: Installation
Microwave Oven 4. Installation Unpacking Oven • Visually Inspect equipment for damage, such as dents in door, damaged cord, plug, or dents inside oven cavity. • Report any dents or breakage to source of purchase immediately. Do not attempt to use oven if damaged. -
Page 7: Operation
Microwave Oven 5. Operation Note: The display issued for may different models of microwaves. Depending on the model, certain words or symbols may never be highlighted or become visible. Cooking Display DISPLAYS DESCRIPTION 00:00 Displays cooking time. If stage cooking is programmed, total cooking time is displayed. -
Page 8: Display And Features
Microwave Oven 6. Display and Features Single Pad Programming This feature enables each numbered pad to be programmed for a specific use, such as cooking a certain number of potatoes or defrosting and then cooking vegetables or other frozen foods. This feature has already been pre- programmed at the factory. -
Page 9: Mid-Cycle Cooking Pause
Microwave Oven Mid-Cycle Cooking Pause The cooking pause is a feature unique to this series of microwaves. This pause enables extra ingredients to be added, cooking progress to be checked, or for food to sit a necessary amount of time between cooking time or power settings. To utilize Cooking Pause, follow programming sequences for programmable pads. -
Page 10: Pre-Programmed Items
Microwave Oven Pre-programmed Items 1. Open oven door and place food in oven. Close door. READY displays. Fan will turn on. • ITEM flashes when keypad accepts entries. • 2. Press the desired pad. • For single pad entry, press only one pad. •... -
Page 11: Programming Multiple Stages
Microwave Oven Press PROGRAM SAVE to save the program changes. To discard changes, press STOP/RESET. Programming Multiple Stages Up to four different cooking cycles can be programmed into a memory pad. To use stage cooking: Follow steps 1 through 5 above. Press STAGE. -
Page 12: What Is A Quantity Cook Factor
Microwave Oven What is a quantity cook Factor Each pre-programmed cooking cycle can be set with a specific cooking factor. The cooking factor is the amount of extra time added as a percentage of the original time. Each time the quantity pad is pressed, the cooking time will be increased by the user-specified percentage. -
Page 13: User Options
Microwave Oven 8. User Options Changing User Options ptions such as single or double pad programming and beep volume can be changed. o change options, READY and ITEM must NOT be on the display: 1. Press hidden pad. • Pad is unmarked. •... -
Page 14: Cleaning
Microwave Oven leaning terior, Exterior & Door Cleaning Daily (5 Minutes) efer Crew Training Materials emove and Clean Air Intake Filter Monthly (20 Minutes) lean Discharge Air Vents Monthly (10 Minutes) leaning Splatter Shield When Required (20 Minutes) efer PM Card 66 ©2002 McDonald’s Corporation Version ©McDonald’s Australia Limited... -
Page 15: Parts Ordering And Service Procedure
Microwave Oven 10. Parts Ordering and Service Procedure When contacting equipment supplier, provide product information. Product information is located on equipment serial plate. Record the following information: Model Number: _______________________________________________________________ Manufacturing Number: ________________________________________________________ Serial or S/N Number:__________________________________________________________ Date of Purchase: _____________________________________________________________ Dealer’s Name and Address: ____________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________... -
Page 16: Troubleshooting
Microwave Oven 11. Troubleshooting WARNING Technician Tasks only to be completed by approved contractors Check FAULTS below before calling Service Technician Task Type = [ S ] = Store Task [ T ] = Technician Task PROBLEM POSSIBLE CAUSES Task POSSIBLE CORRECTIVE ACTION Oven Filter inlet and discharge... -
Page 17: Unit Specifications
Microwave Oven 12. Unit Specifications ©2002 McDonald’s Corporation Version ©McDonald’s Australia Limited 1.0: December 2003 This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 17 of 17...
