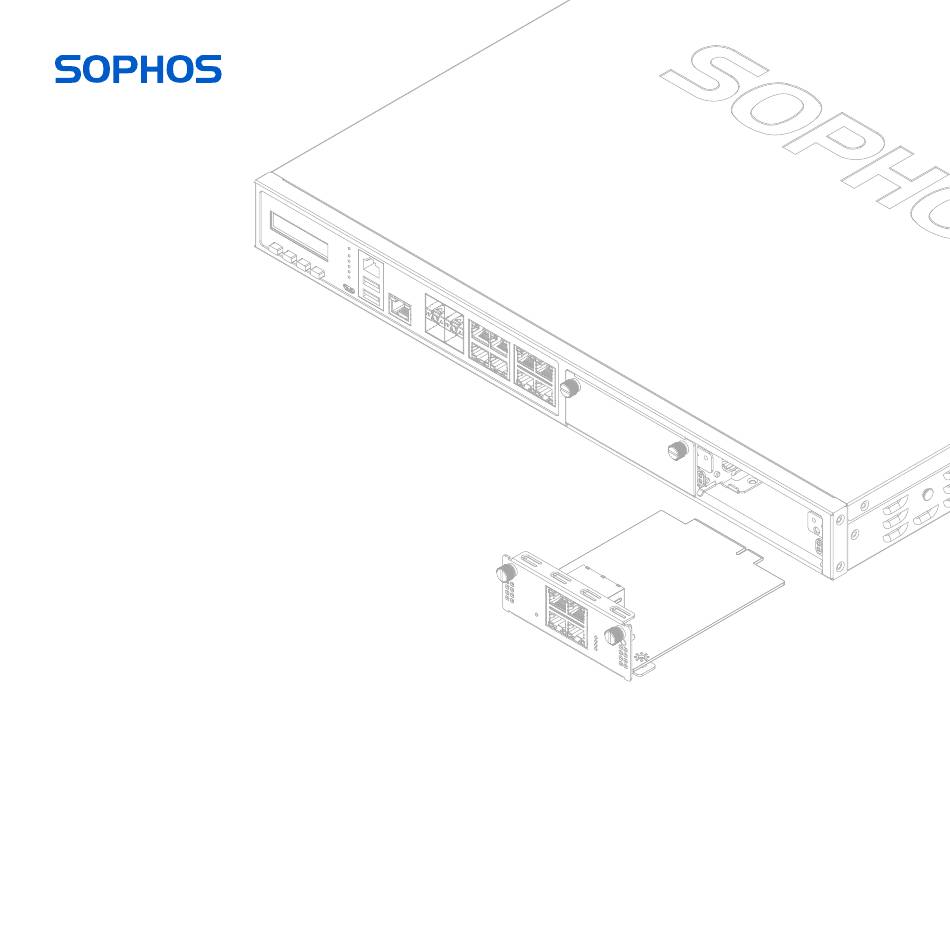

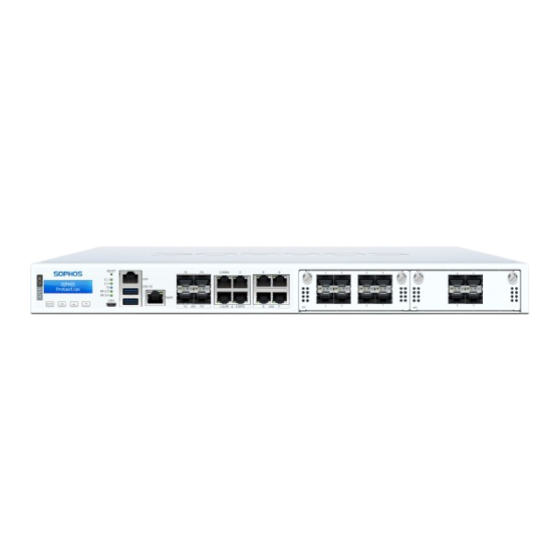

LAN Modules Mounting Instructions XGS Appliance Series...
Page 2
LAN Modules Mounting Instructions Please note Before you begin please check the table below to make sure that your LAN module is supported by your XGS appliance. Mounting Supported Supported in XGS 1U in XGS 2U Power off the appliance and disconnect all power cables. Module models models...
Page 3
LAN Modules Mounting Instructions LEDs on each Ethernet connector For RJ45 1G/2.5G connector ACT/LINK Green Solid 1. The Ethernet port is receiving power. (Left LED) 2. Good connection between the Ethernet port and hub. Flashing The adapter is sending or receiving network data. 1.
Page 4
LAN Modules Mounting Instructions For QSFP+/40G Fiber connector ACT/LINK Green Solid 1. The SFP connector is receiving power. 2. Good connection between the SFP+ connector and hub. Flashing The adapter is sending or receiving network data. 1. The adapter and switch are not receiving power. 2.
Page 5
Montageanleitung für LAN-Module Hinweis Schauen Sie zunächst in der Tabelle unten nach, ob Ihr LAN-Modul von Ihrer XGS Appliance unterstützt wird. Montage Supported Supported in XGS 1U in XGS 2U Schalten Sie die Appliance aus und trennen Sie alle Modul models models Stromkabel.
Page 6
Montageanleitung für LAN-Module LEDs am jeweiligen Ethernet-Anschluss Für RJ45 1G/2,5G-Anschluss ACT/LINK Grün Konstant 1. Der Ethernet-Port wird mit Strom versorgt. (Linke LED) 2. Verbindung zwischen Ethernet-Port und Hub funktioniert. Blinkt Der Adapter sendet oder empfängt Netzwerkdaten. 1. Adapter und Switch werden nicht mit Strom versorgt. 2.
Page 7
Montageanleitung für LAN-Module Für QSFP+/40G-Glasfaseranschluss ACT/LINK Grün Konstant 1. Der SFP-Anschluss wird mit Strom versorgt. 2. Verbindung zwischen SFP+-Anschluss und Hub funktioniert. Blinkt Der Adapter sendet oder empfängt Netzwerkdaten. 1. Adapter und Switch werden nicht mit Strom versorgt. 2. Keine Verbindung zwischen beiden Netzwerkenden. 3.
Page 8
