  • Page 1 Assembly instructions Automated latch release Automatic door lock Window hardware Door hardware Sliding door hardware Ventilation and building technology...

  • Page 3: Table Of Contents

    Assembly instructions Automated latch release Contents Target group of this documentation............... Intended use....................Improper use....................Safety notes....................Explanation of symbols................. Installation....................Connections....................Cable links....................Fitting an internal release push-button (optional)........... Fitting the infra-red eye (optional)..............Wiring diagram for type A automated latch release........Wiring diagram for type F automated latch release........

  • Page 4: Target Group Of This Documentation

    Automated latch release Assembly instructions Target group of this documentation This documentation is intended to be used by specialists only. All work described in this document is to be performed by experienced professionals with training and practice in the assembly, installation and maintenance of the automa- ted latch release and its individual components.

  • Page 5: Installation

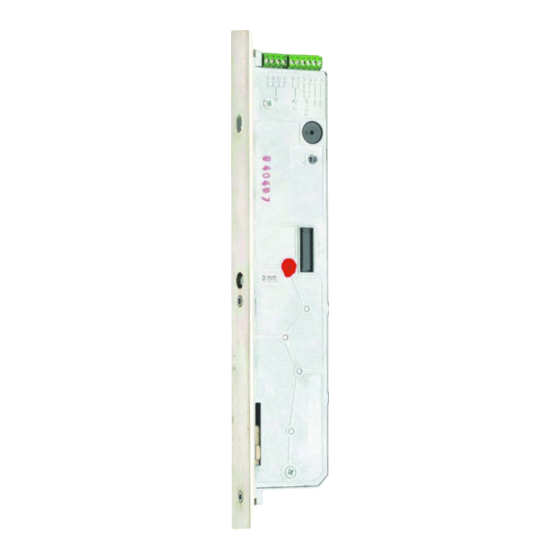

    Assembly instructions Automated latch release Installation Automated latch release The automated latch release is supplied unassembled. Before it can be used it must be screwed onto the auto- matic locking system. Fig. 1: Fitting the automated latch release Fitting the power supply The power supply ensures that the automated latch release is supplied with the right voltage.

  • Page 6: Connections

    Automated latch release Assembly instructions Connections Connec- Type Type Function tions A, B, C, D Connection for the infra-red eye, which sends infra-red signals to the GENIUS door lock B, C, D, 2 Connection for the KFV fingerprint scanner 24 V DC operating voltage Terminal 2 = + (positive) 2, 3 Terminal 3 = -- (negative)
  • Page 7 Assembly instructions Automated latch release Type K Cable Band Cable Function colour colour Black Grey Brown Yellow Yellow Green External "unlock" signal Violet Pink -- /3 Blue Brown Operating voltage (--) negative Fig. 6: Cable type K White Operating voltage (+) 24 V DC (connects automated latch release to White Blue...

  • Page 8: Cable Links

    Automated latch release Assembly instructions Cable links Visible cable link The visible cable link should be fitted to the inside of the door on the hinge side. If this cable link is used, unhinging the door leaf requires substantial effort. Fig.

  • Page 9: Fitting An Internal Release Push-Button (Optional)

    Assembly instructions Automated latch release Fitting an internal release push-button (optional) The internal release push-button can be used to open the door without a conventional key. › Connect the cable (length: 750 mm) to terminals 2 and 4 on the auto- mated latch release.

  • Page 10: Wiring Diagram For Type A Automated Latch Release

    Automated latch release Assembly instructions Wiring diagram for type A automated latch release DSP 30 Kl. 4 Fl. ( +24 V DC) Description 230 V AC supply line (L; N; PE) Power supply Wireless receiver (optional) External unlocking (optional) Line length max. 50 metres (external unlocking) Line length max.

  • Page 11: Wiring Diagram For Type F Automated Latch Release

    Assembly instructions Automated latch release Wiring diagram for type F automated latch release DSP 30 Kl. 4 Fl. ( +24 V DC) Description 230 V AC supply line (L; N; PE) Power supply Wireless receiver (optional) External unlocking (optional) Line length max. 50 metres (external unlocking) Line length max.

  • Page 12: Technical Specifications

    Automated latch release Assembly instructions Technical specifications Relative humidity 20 % bis 80 % Ambient temperature in door -- 10 bis + 45 °C Dimensions Width 16 mm, length approx. 252 mm, depth 49 mm + width of face plate Supply voltage 24 V DC max.
  • Page 13 Assembly instructions Automated latch release Last update: 01.08.2013...
  • Page 14 Telefax: +49 2051 278-167 42551 Velbert post@siegenia-aubi.com GERMANY www.siegenia-aubi.com Hungary Phone: +36 76 500810 SIEGENIA-AUBI worldwide: Austria Phone: +43 6225 8301 Italy Phone: +39 02 935 3601 Belarus Phone: +375 17 312 1168 Poland Phone: +48 7744 77700 Benelux Phone: +32 9281 1312...
