QUICK START GUIDE
SMS Alarm/Status Communicator
FPC-30121
Introduction

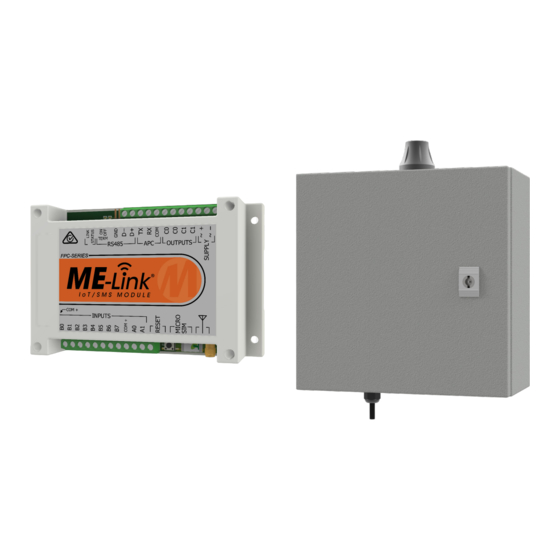

MATelec Australia's SMS Alarm/Status Communicator features the newly designed ME-Link Module, which is a cellular CAT-M1 remote
monitoring and control device utilising the 700Mhz frequency for best in class signal strength. The Communicator reports status
information and active alarms from up to 8 digital inputs, which can be connected to volt free outputs on a control panel or used for
sensor inputs. The ME-Link Module can also be utilised to control external devices with the two onboard relay outputs, and uses easy
to set up SMS commands to configure the operation and alarms without the need for any additional software.
Safety
This SMS alarm sender panel has been designed and built for applications that are Commercial and/or Industrial in nature, operation,
function and location. If the control panel is to be used in Domestic/Residential applications, where specific Wiring Rules in respect
of 'electrical supply' protection may apply, it is the responsibility of the installing electrician to ensure compliance with relevant
standards.
• Prior to installation, ensure power supply is isolated.
• Electrical connection to the panel must be carried out in accordance with the following pages.
• Additions or modifications to the control panel are not permitted and will void warranty.
• The controller is not intended for use by children or infirm persons without supervision.
• Repairs to the controller must only be carried out by a suitably qualified electrician.
This quick start guide makes use of the following symbols to indicate warnings that must be paid specific attention to:
Damage to equipment or personal harm may occur if this instruction is not followed
Electrical risk (electrocution hazard) may occur if this instruction is not followed
