Senju Sprinkler FR-RES Quick Start Manual

SENJU SPRINKLER CO., LTD.

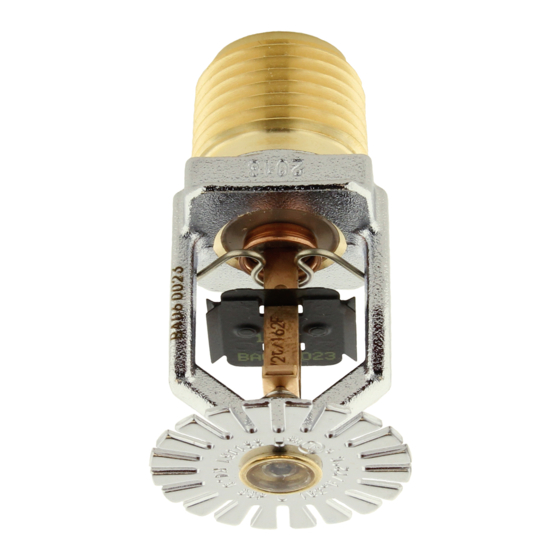

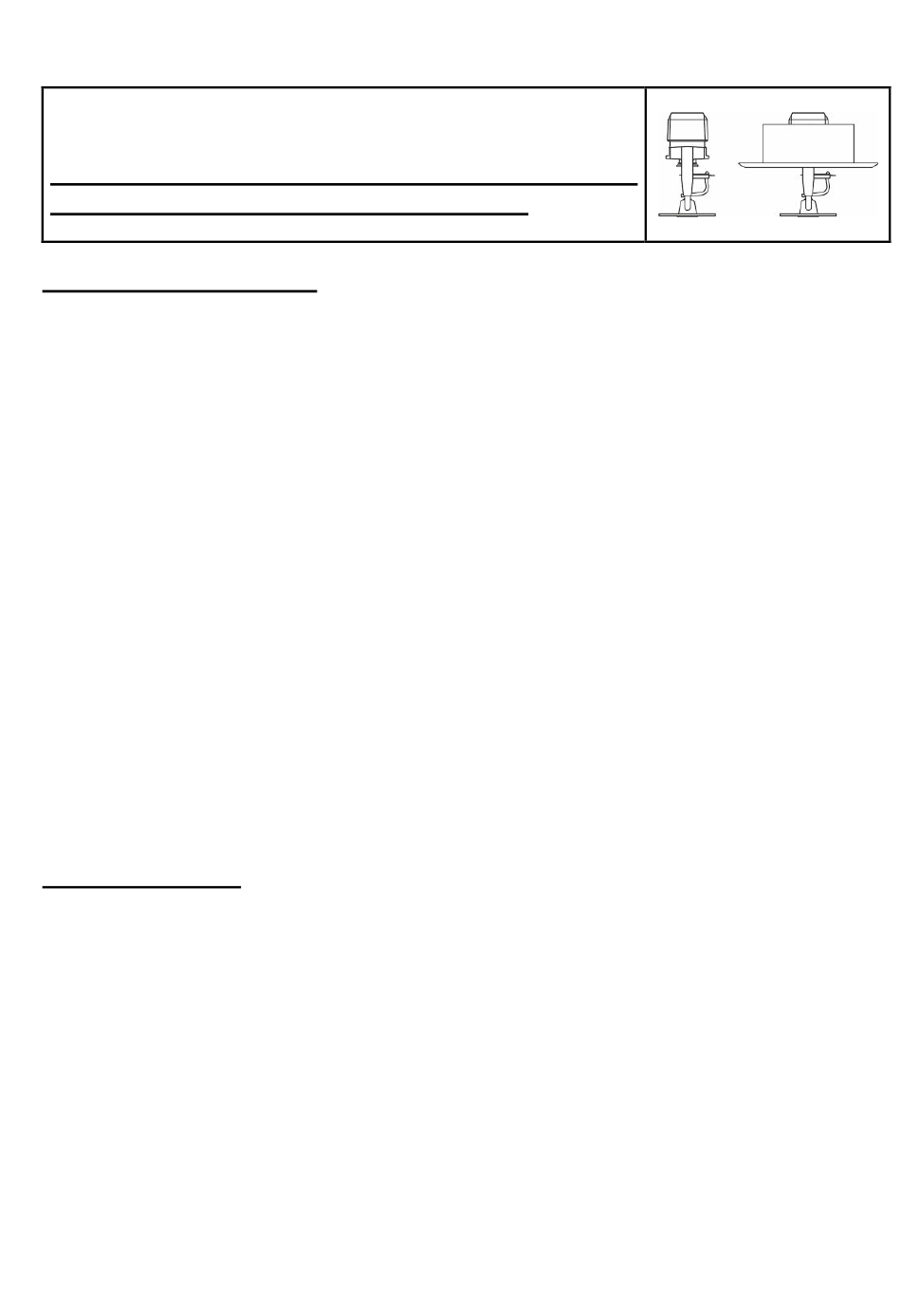

Residential, Pendent and Recessed Pendent Sprinkler
Model FR-RES K-Factor: 4.9 SIN: SS4451

GENERAL DESCRIPTION

The Model FR-RES Residential Pendent and Recessed Pendent Sprinklers are fusible link type automatic sprinklers. They are
durable and fast responding. The Model FR-RES is designed for residential occupancies and is perfect for use in homes, hotels
and other living quarters.
The Model FR-RES is to be used in wet pipe residential sprinkler systems for One- and Two- Family Dwellings and
Manufactured Homes per NFPA 13D; wet pipe residential sprinkler systems for Residential Occupancies up to and Including
Four Stories in Height per NFPA 13R; or, wet pipe sprinkler systems for the residential portions of any occupancies per NFPA
13.
The Model FR-RES has a 4.9 (70.6 LPM/bar
pressure, which allows for smaller pipe sizes and water supply requirements.
For extended installation flexibility, the Model FR-RES provides 1/2 inch (12.7mm) vertical adjustment with the D1 or D3
Recessed Escutcheon.
NOTICE
The heat sensitivity and water distribution design of Model FR-RES allows for an increased chance of residents to
escape or evacuate in case of a fire. However, residential fire sprinkler systems are not a substitute for fire safety
awareness or fire safety construction required by building codes.
WARNINGS
The Model FR-RES must be installed and maintained in accordance with the rules stated herein as well as in
compliance with the applicable standards of the National Fire Protection Association regulations and the standards of
any other authorities having jurisdiction.
In the event of this condition, consult the authorities having jurisdiction for guidance and approval.
Failure to do so may impair the integrity of these devices.
It is the responsibility of the installing contractor to provide a copy of this document to the owner or their
representative, and in turn, it is the obligation of the owner to provide a copy of this document to a succeeding owner.
The owner is responsible for maintaining their fire protection system and devices in proper operating condition. The
installing contractor or sprinkler manufacturer should be contacted with any related questions.

TECHNICAL DATA

Approvals: UL Listed
c us
Sprinkler Identification Number (SIN): SS4451
Maximum Working Pressure: 175psi (12.1bar)
Discharge Coefficient (Nominal K-Factor): K=4.9 GPM/psi
Temperature Rating: 162°F (72°C), 175°F (79°C), 205°F (96°C)
Color Code
162°F (72°C): Uncolored
175°F (79°C): White
205°F (96°C): White
Vertical Adjustment: 1/2" (12.7mm)
Finishes
Sprinkler: Natural Brass, White Painted, Black Painted, Chrome Plated
Recessed Escutcheon: Brass Plated, White Painted, Black Painted, Chrome Plated
1/2
) K-factor that meets the required residential flow rates with minimal residual
1/2
(70.6 LPM/bar
Document No.U087143
1/2
)
： 1 of 8
Page
： Oct/18/2019
Date
