AquaSource
is a registered trademark of
LF, LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Serial Number ____________
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-417-7564, 8 a.m. - 8 p.m., EST, Monday - Friday.
AB12401A
Purchase Date ____________
1

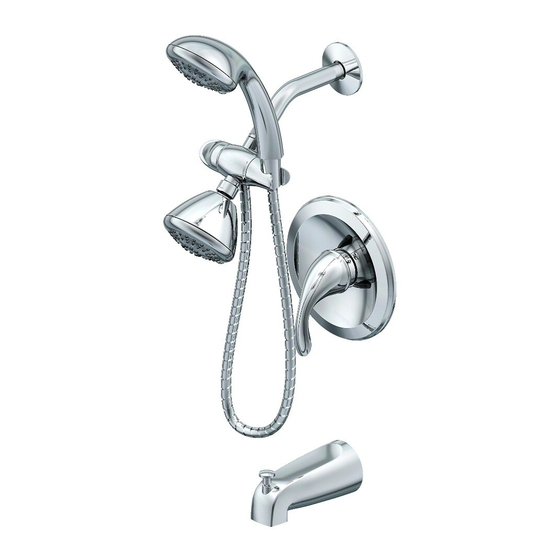

TUB AND SHOWER
MODEL #873-W4801
Francias / Español p. 14
Lowes.com
ITEM #0247399
0247086
FAUCET
873-W4804
Advertisement
Table of Contents
Related Manuals for AquaSource 873-W4801
Summary of Contents for AquaSource 873-W4801
- Page 1 TUB AND SHOWER FAUCET ® AquaSource is a registered trademark of LF, LLC. All rights reserved. MODEL #873-W4801 873-W4804 Francias / Español p. 14 ATTACH YOUR RECEIPT HERE Serial Number ____________ Purchase Date ____________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-417-7564, 8 a.m.
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Shower Flange Shower Arm Hand Shower Diverter Showerhead Escutcheon Valve Body Hose Handle Tub Spout Inverter (Preassembled to Valve Body (G)) Sleeve Cartridge (Preassembled to Valve Body (G)) Screw (Preassembled to Valve Body (G)) Bonnet (Preassembled to Valve Body (G)) Cartridge Stem (Preassembled to Valve Body (G)) Stop Ring (Preassembled to Valve Body (G)) Lowes.com... -
Page 3: Safety Information
HARDWARE CONTENTS (not shown to actual size) Plug Escutcheon Screw Rubber Sealing Washer Allen Wrench SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. WARNING: Follow the installation instructions carefully. Proper installation is the installer’s responsibility. Failure to follow correct installation procedures can result in the faucet being loose, which can result in serious injury. - Page 4 ASSEMBLY INSTRUCTIONS Prepare the bath area for installation: a. Shut off the water supply to the tub and shower. 1 1/4in. Dia Note: This may require shutting off the main water supply to your home. Shower Only b. Verify that the hole sizes and positions in the Tub&Shower wall are correct.
- Page 5 ASSEMBLY INSTRUCTIONS Install the valve body (G): a. Wrap thread sealant tape (not included) around the pipe threads in a clockwise direction. b. Connect the hot and cold water supplies (1) (not included), the shower outlet pipe (2) (not included), and tub outlet pipe (3) (not included) by threading them into the valve body (G) in a clockwise direction.
- Page 6 ASSEMBLY INSTRUCTIONS Install the tub spout (J): a. Wrap thread sealant tape around the pipe thread of the tub spout outlet. b. Thread the tub spout (J) into the threaded connection and twist clockwise until the spout becomes with the wall.
- Page 7 ASSEMBLY INSTRUCTIONS Hand-tighten the diverter (D) onto the shower arm (B). Insert one of the rubber sealing washers (DD) into the end of the hose (H) and hand tighten to the diverter (D) and the other end of the hose (H) to the hand shower (C). Hand-tighten all connections.
- Page 8 ASSEMBLY INSTRUCTIONS 11. Place the hand shower (C) into the holder on the diverter (D). 12. Install the escutcheon (F) onto the valve body (G) and secure to the valve body (G) using the escutcheon screws (BB). Place the handle (I) onto the valve body (G) and secure with the handle screw (1) using the Allen wrench (CC).
- Page 9 ADJUSTING THE TEMPERATURE LIMITER AND WATER FLOW ON THE VALVE The limiter on the valve can be set to allow partial or full access to hot water by limiting how far the handle can be turned to the hot side of the valve. The limiter is typically set at the factory to allow only warm water to pass through the valve.
- Page 10 ADJUSTING THE TEMPERATURE LIMITER AND WATER FLOW ON THE VALVE Slowly turn the valve stem counterclockwise to adjust the desired maximum water temperature. Reinstall the red limit stop ring (Q) and readjust the teeth engagement position so that the stem cannot move beyond the adjusted point.
-
Page 11: Replacing The Cartridge
ADJUSTING THE TEMPERATURE LIMITER AND WATER FLOW ON THE VALVE Fasten the sleeve (L) and reinstall the inverter (K) and screw (N) using the Phillips screwdriver (not included). REPLACING THE CARTRIDGE 1a. Remove the old cartridge: a. Unscrew the preassembled handle screw (1) with a Phillips screwdriver (not included) and lift off the handle (I). -
Page 12: Care And Maintenance
CARE AND MAINTENANCE Clean carefully by gently wiping with a grit-free damp cloth. Use only mild soap with water. Never use acids, harsh chemicals, or abrasive detergents to clean the surface. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION There is a leak from The cartridge is damaged. -
Page 13: Replacement Parts List
Shower Flange RP38046* Shower Arm RP38019* Hand Shower RP38175* Diverter RP80348* Showerhead RP38174* Hose RP38059* Tub Spout RP33052* * Available in Chrome Finish and Brushed Nickel Finish. Printed in China AquaSource® is a registered trademark of LF, LLC. All rights reserved. Lowes.com...
