Edvotek EDGE Manual

Integrated electrophoresis system

Download this manual

Features:

• Integrated power supply: 100V or 150V selectable output

for results in as little as 10 min.

• Safe, high-intensity blue LED illumination: 470 nm wave-

length is optimized for SYBR® Safe and compatible with

other popular nucleic acid stains.

• Convenient 10 x 7 cm gel tray with two dual-sided

combs for up to 16 samples per gel

• Flexible gel volumes: 30-50 mL

• Built-in timer: 1-99 minutes

• Fan and ventilation system minimizes condensation

during experiments

• Convenient hinged lid contains dual automatic power

cutoff switches for safety

• Stainless steel and platinum electrodes are compatible

with all standard electrophoresis buffers

• 17 x 17 x 15 cm

Voltage

Timer

Increase/

Selector

Screen

Decrease

Timer

Start/Stop

Button

Need help?

Do you have a question about the EDGE and is the answer not in the manual?

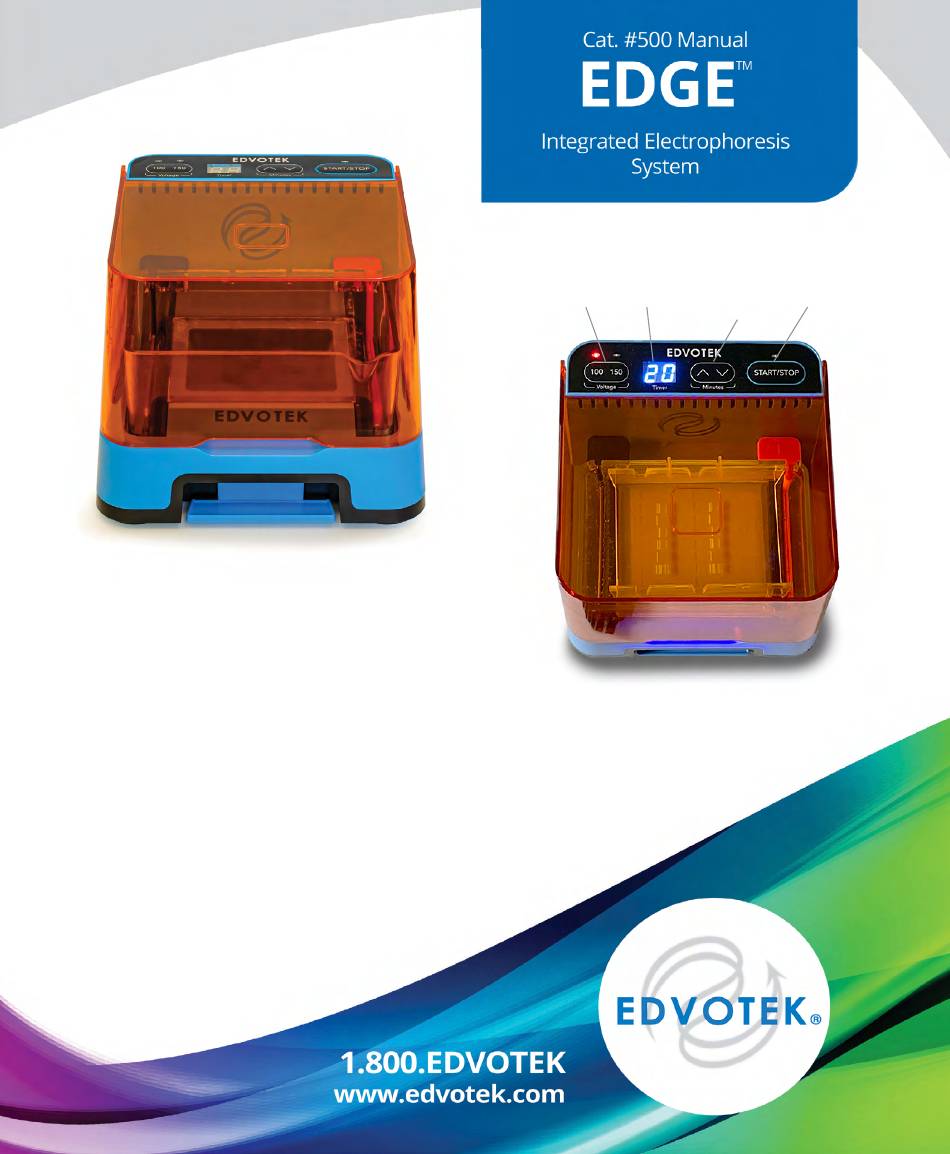

Page 1 Voltage Timer Increase/ Start/Stop Selector Screen Decrease Button Timer Features: • Integrated power supply: 100V or 150V selectable output for results in as little as 10 min. • Safe, high-intensity blue LED illumination: 470 nm wave- length is optimized for SYBR® Safe and compatible with other popular nucleic acid stains.
Page 2 EDGE Integrated Electrophoresis System ™ Introduction: The Edvotek® EDGE™ Integrated Electrophoresis System combines an electrophoresis apparatus, power supply, and blue light transilluminator into a single, user-friendly unit. Each EDGE™ Includes: (1) EDGE™ base unit with integrated 100V and 150V power supply, hinged lid, and blue light transilluminator.
Page 3 • The buffer in the chamber is incorrect or the buffer volume is too low. At any time during the experiment, PRESS the ON/OFF paddle at the base of the EDGE™ to illuminate the gel using the blue LEDS. After electrophoresis is complete, PRESS the START/STOP button to stop the current, document the results of the experiment, and then open the lid to dispose of the gel and electrophoresis buffer.
Page 4 LED Wavelength: 470 nm +/- 10 nM • Check that the power cord is fully plugged into the • LED Life: 50,000 hours EDGE™ base and that the cord and outlet are func- • Input voltage: 100-240V AC, 50/60 hz tional. •...
