Basic Flush Ceiling Mount
WARNING: This arm mount is intended to support projectors with a maximum weight of 26 lbs. If your
projector does not have mounting nuts embedded in the bottom, it cannot be attached to this arm mount.
THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL
THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL
SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES
SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES
NOT RECOMMEND THE USE OF POWER TOOLS AND WILL NOT BE LIABLE FOR THE
NOT RECOMMEND THE USE OF POWER TOOLS AND WILL NOT BE LIABLE FOR THE
IMPROPER USE OR INSTALLATION OF ITS PRODUCTS.
IMPROPER USE OR INSTALLATION OF ITS PRODUCTS.
PARTS LIST
Qty
Description
1
Arm Assembly with Ceiling Plate
1
Mounting Bracket Head
1
Pressure Plate w/ 4 Countersunk Boreholes
1
Pressure Plate
4
Swivel Arms

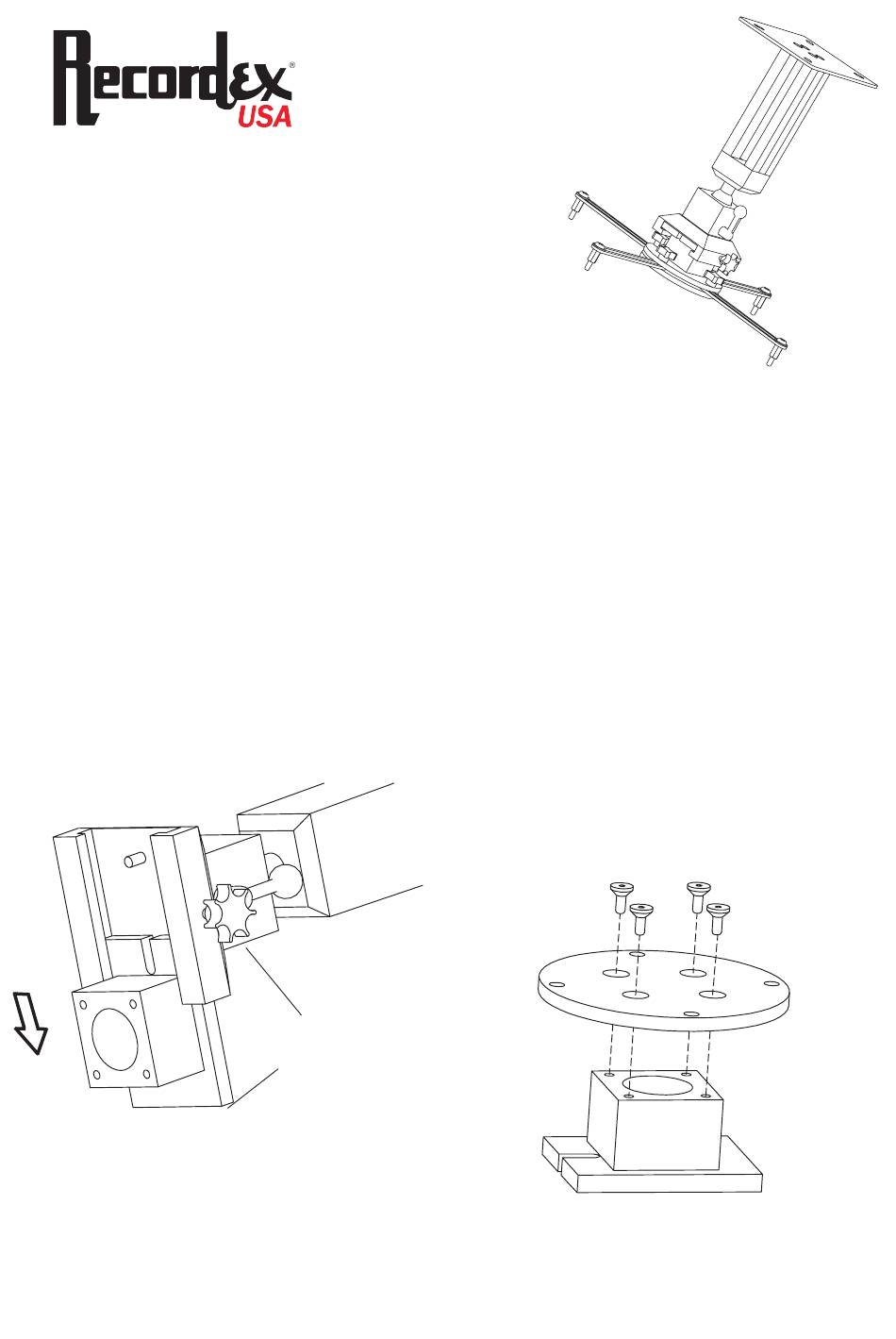

FIGURE 1
Remove the mounting bracket head from the arm assembly by unscrewing the knob as
shown in FIGURE 1. Position the pressure plate (the one with the countersunk boreholes)
onto the mounting bracket head. Using supplied Allen wrench secure together with the
countersunk screws as shown in FIGURE 2.
INFINIX210
with Quick Release
Assembly Instructions
Turn Knob to Release
Mounting Head
HARDWARE LIST
Qty
Description
4
Countersunk Phillips Screws
4
Clamping Screws
1 Pkg. M3 Distance Bolts with Screws & Washers
1 Pkg. M4 Distance Bolts with Screws & Washers
1 Pkg. M5 Distance Bolts with Screws & Washers
1 Pkg. M6 Distance Bolts with Screws & Washers
4
Countersunk Phillips Bolts
(These bolts can be used to replace the
clamping screws for security)
2
Allen Wrenches
STEP 1
FIGURE 2
Advertisement
Table of Contents
Summary of Contents for Recordex INFINIX210
- Page 1 THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES...
- Page 2 Clamping Screws Clamping Screws Pressure Plate Assembly Swivel Arms Swivel Arms Remaining Pressure Plate STEP 2 Align pressure plate assembly, swivel arms and remaining pressure plate as shown. Loosely tighten together using the clamping screws. The number of arms you attach (either 3 or 4) will be determined by the number of mounting nuts embedded in the bottom of your projector.
- Page 3 Tighten Knob to Secure Assembly in Place STEP 4 ARM SWIVEL NEVER MAKE ANY HANDLE ADJUSTMENTS WHEN CLAMPING IS TIGHTENED This handle is for the Ball and Socket Joint Adjustment...
