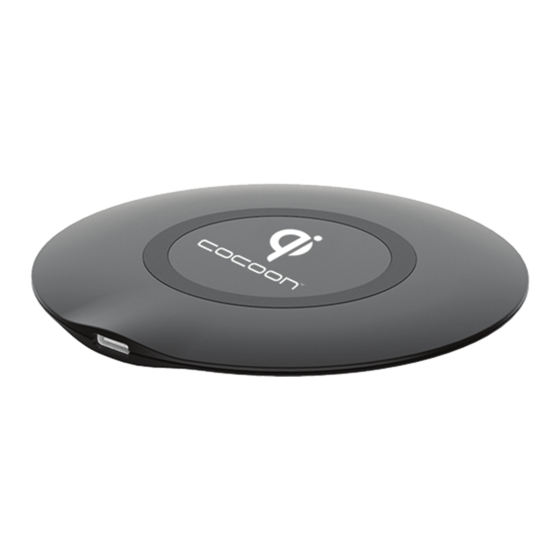

Cocoon HE190045B Getting Started Manual

WIRELESS FAST CHARGER WIRELESS FAST CHARGER

Note

Thank you for purchasing the Cocoon Wireless Fast Charger. Compatible with all Qi certified
devices. Please read your device's manual to confirm if your device is Qi certified and can be
used with the Wireless Fast Charger. For optimum performance and safety, please read this guide
carefully before using this product.

Accessories

1 x Wireless Fast Charger
1 x USB Type C to A cable*
1 x Getting Started Guide*
*Not pictured

Product overview

1.
Input port (Type C)
2. LED indicator
3.
Transmitter

Specifications

Maximum Power: 15W
Input: 12V/1.67A; 9V/1.67A; 9V/1.34A;5V/2A
Output: 9V/1.67A; 9V/1.12A; 9V/0.83A; 5V/1A

How to use

Charging and operating your Qi Fast Charger
1. Make sure there are no objects on the Wireless Fast Charger
2. Plug the USB C cable into your Wireless Fast Charger
3.
Connect the USB A end of the cable into a PC or AC/DC wall adaptor (not provided).
A red indicator light will appear when it is ready to start charging
4.
The Wireless Fast Charger is ready for your mobile device
5. Place your device directly on top of the charging pad ensuring the screen is face up.
Your device will indicate charging
6. When your mobile device is fully charged, the indicator light on the Wireless Fast
Charger will turn off
Getting Started Guide
1
2
Charging efficiency: > 65%
Transmission distance: < 6mm
HE190045B 06/2020
3
