Biodom Roko User Manual

Scan below QR or download "Smart
RM" or "Smart lift" app from Google
play and app store.
Choose one WIFI matching method
of following 2:
● WIFI matching on thermostat:
connect to voltage and turn on
thermostat, long press
seconds, when OFF and
press enter into holiday mode setting, or short press
to match WIFI
● WIFI matching on receiver: connect to voltage and turn on
receiver, long press receiver button"push" to match WIFI,
when long bright blue light is EZ matching mode. blue light
blinking is AP matching mode. interval blinking is matching.
The App advanced password is 123456.
BIODOM Roko
RF WIFI Wireless Thermostat User Manual
for 3-5
are blinking together, short

Technical Data

☆
Power:
Receiver: 230Vac 50/60HZ
Thermostat: USB power supply/4*AAA Batteries
! Pls remove batteries when USB power is working.
☆
Display accuracy: 0.5°C
☆
Insulating condition: Normal environment
☆ Probe sensor: NTC(10k) 1%
☆ Running program: Set per 1 week as a cycle
☆ Contact capacity: 5A/250V(WW);16A/250V(WE)
☆
Output: Switch relay
☆ Working environment temperature: 0~70°C
☆ Installation: Wall mounted or on battery seat
☆ Range of temperature adjustment: 5~35°C
☆
Size (mm): 130*90*25

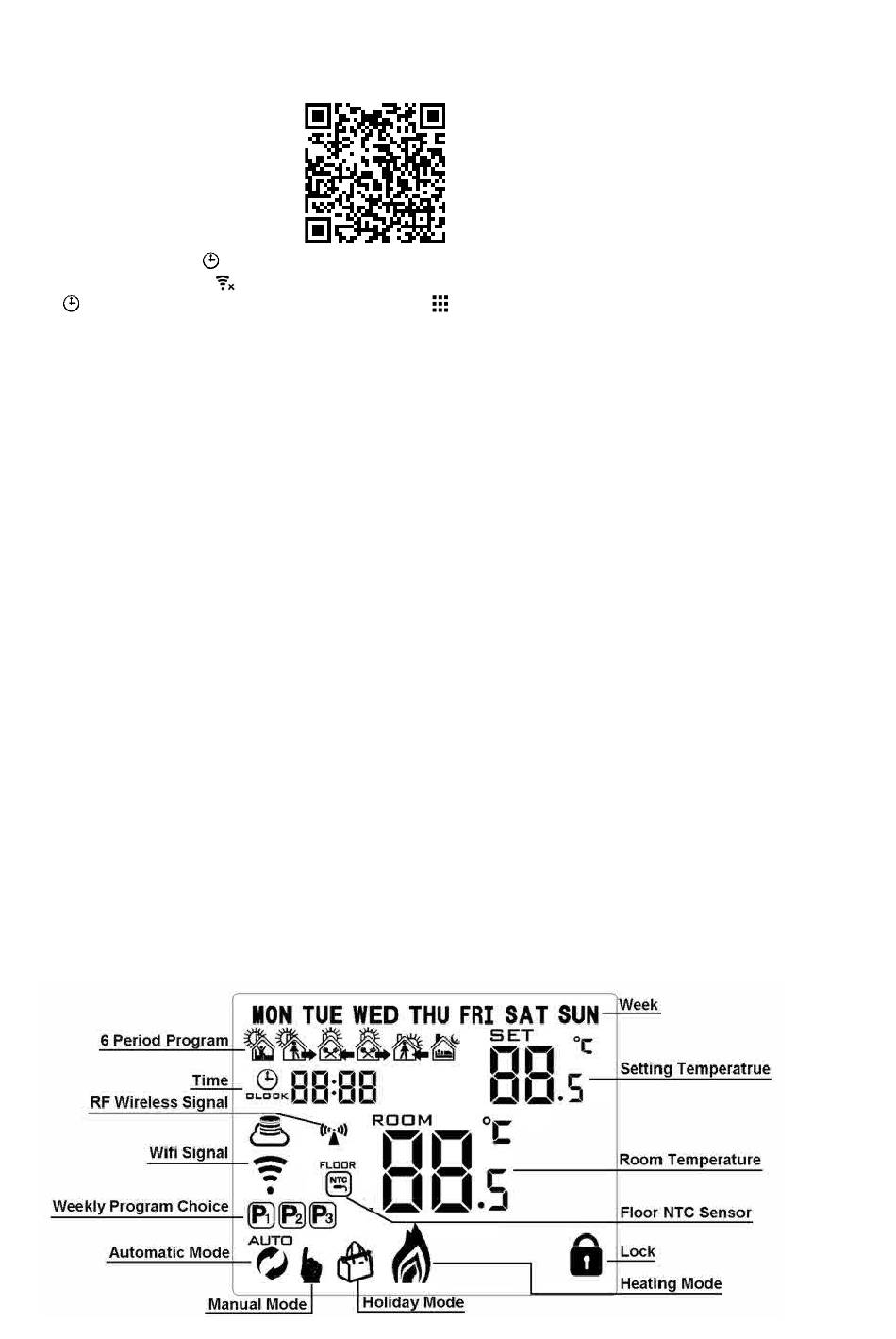

Home Screen

! IP matched before delivery, please confirm
thermostat and receiver connected well and is
working before matching WIFI. Yellow light on
receiver is signal indicator,it is blinking when
receive wireless signal,thermostat initiates to
WIFI matching. Yellow light blinks continuously
within 3 minutes, at this time, the data exchange
information between thermostat and APP is 3
seconds interval. After 3 minutes, thermostat
enters the power-saving mode, and information
exchange interval is 20 minutes. [receiver initiates
information exchange by default for 20 minutes].
With USB power supply, the data exchange time
of thermostat can be set in advanced options B5
and B6. Ap mode or Ez mode can reactivate the
WIFI matching mode selection
