PPK Kit Phantom4
v3.0
Convert your Phantom 4 Pro v.1 / v.2 / Advance into a PPK system.
Easy integration without the need to open or modify your Drone.
International shipments.
Description
The PPK-Kit-Phantom4 is a non-intrusive adapter system to connect an Emlid Reach
M2 or M + GNSS receiver (not included) to a DJI Phantom 4 Pro or Advance Drone
model.
Main Advantages:
• Works with Emlid Reach M2 and M + modules (not included)
• No need to open or modify the Drone
• KiT attaches and disattaches in seconds
• No batteries required
• Ultra-fast image-firing detector sensor
• Lightweight micro electronics: 70 grams.
An externally installed sensor on the Drone detects the shot of each photograph and
records a timestamp in the Reach M2 / M + module's log file. Timestamps are
extracted from the module after the flight and added to the images taken in flight as
metadata such as centimeter precision geotags using various specialized software
options available on the market.
The Emlid Reach M2 and M + modules (not included in the Kit) are multi-band / single-
band GNSS systems respectively, with centimeter precision for UAV mapping.

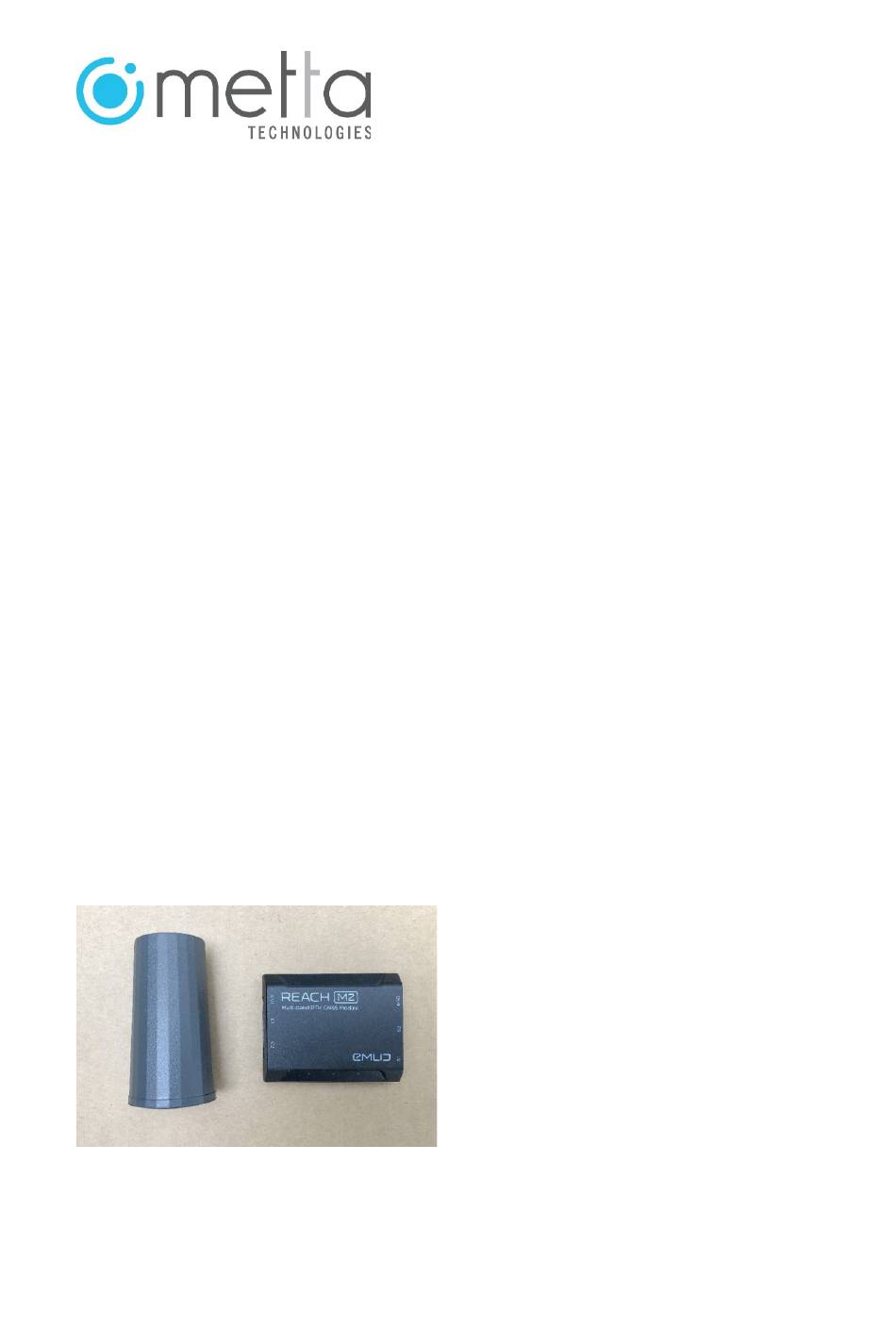

Image: Reach M2 and Antenna Module. (Not included in the kit)
www.mettatec.com
Advertisement
Table of Contents
Summary of Contents for METTA PPK Kit Phantom4
- Page 1 PPK Kit Phantom4 v3.0 Convert your Phantom 4 Pro v.1 / v.2 / Advance into a PPK system. Easy integration without the need to open or modify your Drone. International shipments. Description The PPK-Kit-Phantom4 is a non-intrusive adapter system to connect an Emlid Reach M2 or M + GNSS receiver (not included) to a DJI Phantom 4 Pro or Advance Drone model.
- Page 2 Operation requirements For integration requires: 1. A PPK Kit Phantom4 2. A Drone: Phantom 4 Pro v.1 / v.2 or Phantom 4 Advance (Not included) 3. An Emlid Reach M2 or M + with GNSS Antenna (Not included) 4. A RiNEX compatible GPS Base Receiver (Not included) Image: Kit components.
- Page 3 Image: Plastic clip removed from the Drone arm. 8. Carefully insert the Trigger Sensor under the motor of the Drone's left front arm. 9. Install the GNSS antenna on the Antenna Bracket using the short connector cable provided. Before screwing the connector to the antenna, unscrew the supplied fixing nut and save it.
- Page 4 M2 / M + module Configuration Reachview 3 App and Firmware Update 1. Download and Install the ReachView 3 App on your iOS / Android Cellphone or Tablet. 2. When starting the application for the first time you need to update to the latest Firmware.
- Page 5 Do this for both the Drone / Rover and the Ground Base when using the Reach RS2 base. Imagen: Pantalla de Configuración de GNSS con satélites seleccionados y frecuencia de 10Hz. 2. Go to REACHVIEW 3> LOGGING and enable RAW DATA with UBX. It is recommended to activate the option to start automatic registration (Autostart): the UBX registration will start each time the module is successfully powered up.
- Page 6 Image: Camera Control screen with trigger event time detected by the sensor. 4. Now the M2 / M + module is ready to operate. Topographic Survey Flights Before Flight: 1. Program your flight plan following the instructions of the flight control application you use: DJI GS Pro, Pix4D, DroneDeploy, MapsMadeEasy or others.
- Page 7 7. Take a manual photograph to verify the correct registration of the Time Stamp (CAMERA EVENTS: LAST TIME MARK). 8. Start or verify the start of GNSS data logging (RAW DATA / UBX) on the M2 / M +. 9. Once these verifications and recommendations have been made, you can proceed to fly the Drone and take photos.
