HOME NETWERKS 75-101A-BT Manual

Led dimmable mirror with bluetooth speakers and anti-fog glass

Advertisement

Quick Links

Home NetWerks
SIMPLE SOLUTIONS FOR A SMARTER HOME
The BLUETOOTH
®
word mark and logos are registered trademarks owned by BLUETOOTH SIG, Inc. and any use of the said
mark by Homewerks Worldwide is under license. Other trademark and trade names are those of their respective owners.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
www.homewerksww.com
READ AND SAVE THESE INSTRUCTIONS
LED DIMMABLE MIRROR
WITH BLUETOOTH
SPEAKERS AND
ANTI-FOG GLASS
MODEL #75-101-BT, 75-101A-BT
®
Dec. 12, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 75-101A-BT and is the answer not in the manual?

Questions and answers

Summary of Contents for HOME NETWERKS 75-101A-BT

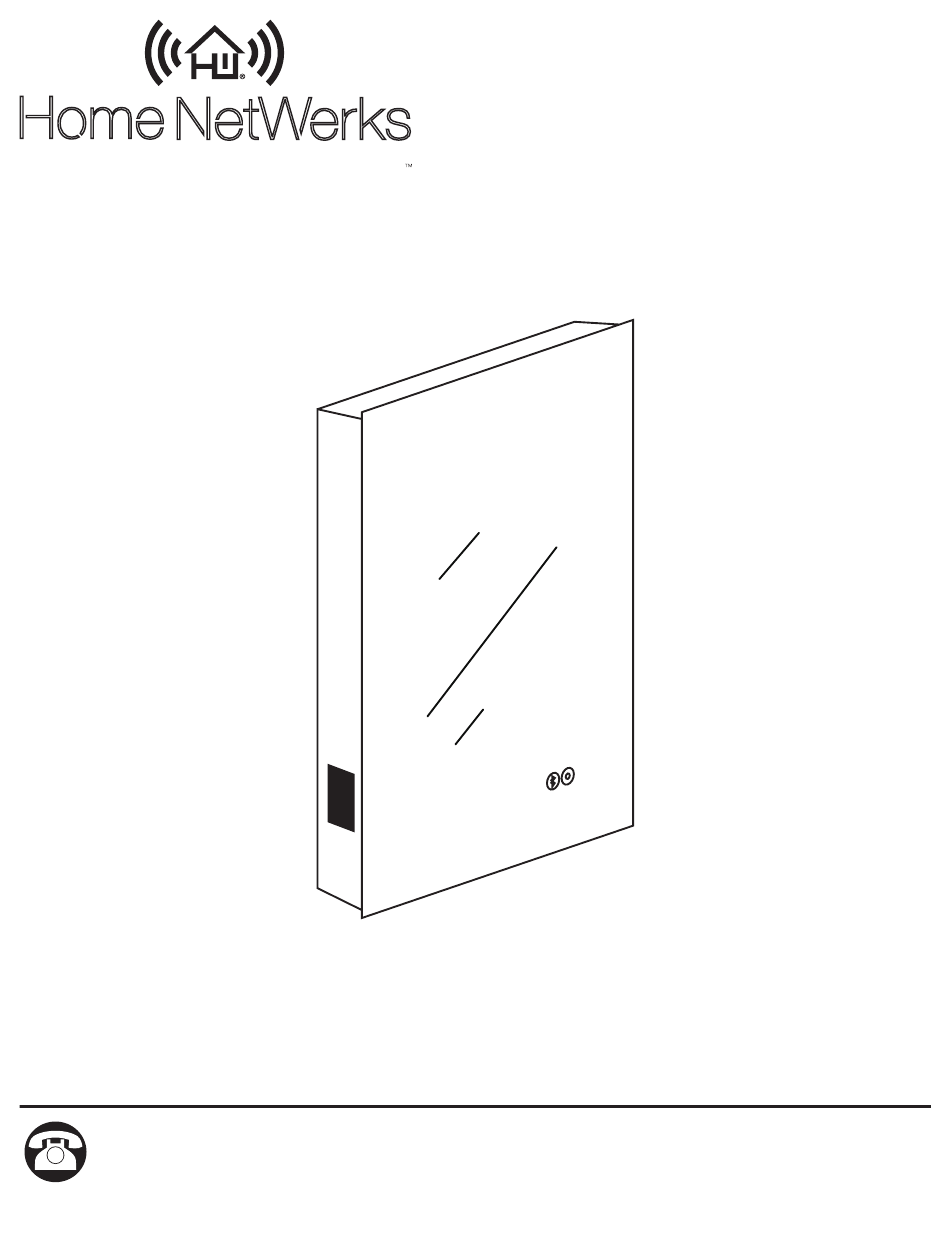

  • Page 1 SPEAKERS AND Home NetWerks ANTI-FOG GLASS SIMPLE SOLUTIONS FOR A SMARTER HOME MODEL #75-101-BT, 75-101A-BT The BLUETOOTH ® word mark and logos are registered trademarks owned by BLUETOOTH SIG, Inc. and any use of the said mark by Homewerks Worldwide is under license. Other trademark and trade names are those of their respective owners.
  • Page 2 TABLE OF CONTENTS Preparation ..................................2 Safety Information ................................2 FCC Compliance ................................2 Package and Hardware Contents............................3 Recommended Tools ................................3 Wiring Diagram ...................................3 Installation Instructions ...............................4 Operating Instructions ................................5 Care and Maintenance ...............................5 Troubleshooting ..................................5 Warranty .....................................5 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents.
  • Page 3 PACKAGE AND HARDWARE CONTENTS PART DESCRIPTION PART DESCRIPTION LED mirror Z-bar Wall anchors Lower locking screw Z-bar screws Wire connectors RECOMMENDED TOOLS (NOT INCLUDED) Safety Tape Phillips Electric drill Level Pencil Hammer Electrical goggles measure Screwdriver and drill bits tape WIRING DIAGRAM Mirror House...
  • Page 4 INSTALLATION INSTRUCTIONS INSTALLING THE Z-BAR FOR HANGING MIRROR FIGURE 1 1. Place the Z-bar (D) at the desired location on the wall, using a level for final positioning. Mark the location of the three holes in the Z-bar (D) on the wall. Drill 1/4 in. holes at the marked locations and insert included 22-3/4"...
  • Page 5 OPERATING INSTRUCTIONS OPERATING THE DIMMABLE LED LIGHT Press the power touch sensor button and light will turn on at its brightest setting. Continue touching the sensor button again and the light will dim to the next level. There are three light brightness levels and on the fourth touch the light will turn off. OPERATING THE BLUETOOTH SPEAKERS ®...
