Summary of Contents for ELAC Connect Pro DS-C201PRO-BK

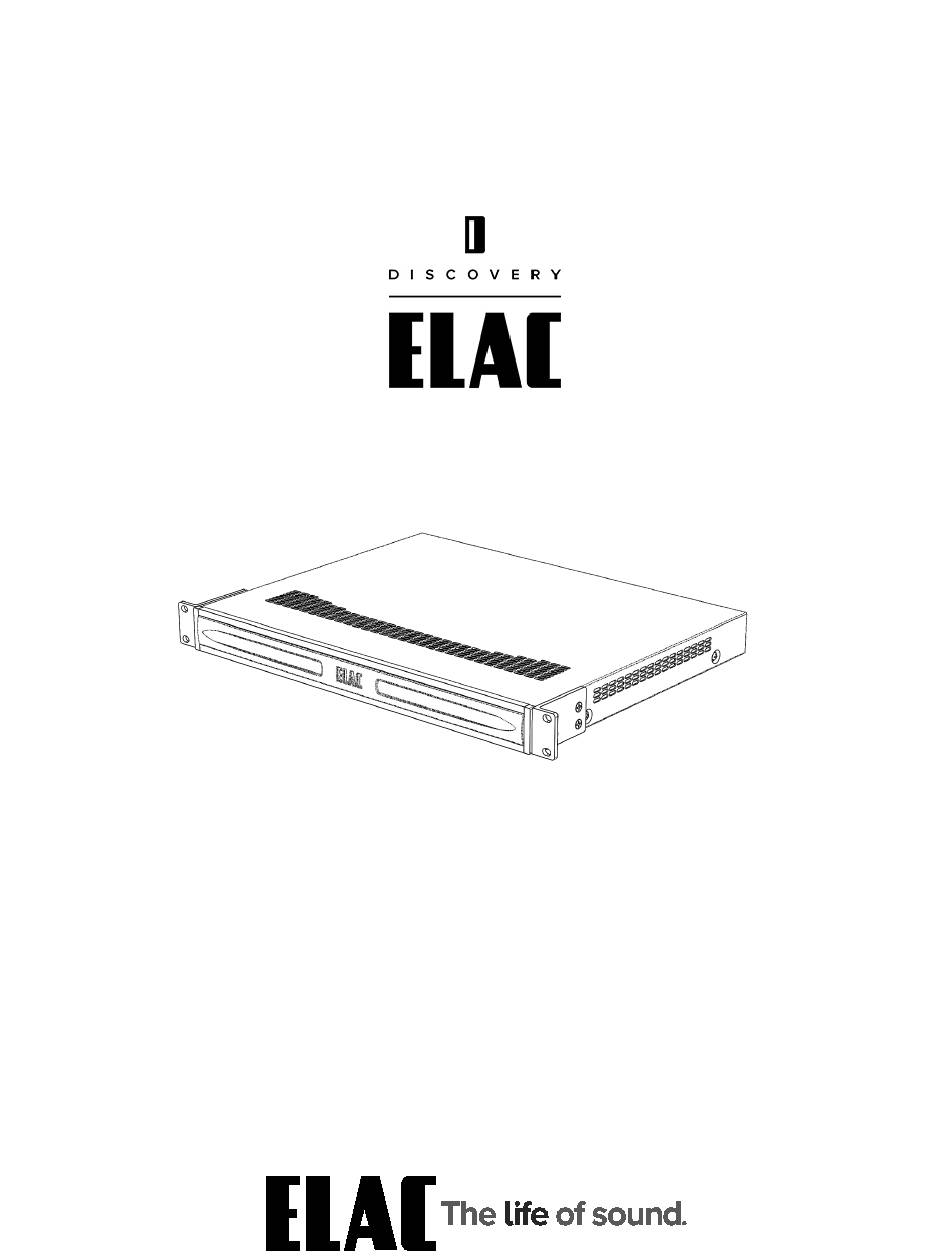

- Page 1 Discovery Connect Pro DS-C201PRO-BK 8 Zone Music Server OPERATING INSTRUCTIONS...
-
Page 2: Important Safety Instructions
To reduce the risk of electric shock, do not open the loudspeaker. Servicing to be carried out by qualified service personnel only. ELAC Discovery Connect Pro | www.elac.com | Page 1... - Page 3 To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power is not more than that permitted for successful communication. ELAC Discovery Connect Pro | www.elac.com | Page 2...
- Page 4 Since the time we started (1926), ELAC has always striven to achieve the very best. Your new ELAC speakers are built to the highest standards using high-quality components that are carefully constructed to deliver the best-in-class sound quality. They are developed by a passionate group of individuals whose soul purpose is to bring a new dimension of sound quality into your home.
-
Page 5: Controls And Indicators
6. 12V Trigger Output - Use this connection to ON/OFF control other equipment in your audio system. 7. Power input - Used for providing power to the unit from the included DC 12V, 2.0A power adapter. ELAC Discovery Connect Pro | www.elac.com | Page 4... -
Page 6: Connecting To Your Network
Outputs 1 and 2 - Provides a native digital output from the Discovery Connect Pro. With no sample rate conversion for content up to 192khz 24-Bit quality. Simply connect the optical/coaxial output from the Discovery Connect Pro to the optical/coaxial input on your integrated amp/receiver/preamp/DAC. ELAC Discovery Connect Pro | www.elac.com | Page 5... -
Page 7: Network Setup
Ethernet 1 and Ethernet 2 pages - Allows the Ethernet connection setup. Firmware page - Allows the user to check and update the firmware version, to retrieve diagnostics logs and also to do a factory reset. ELAC Discovery Connect Pro | www.elac.com | Page 6... - Page 8 Connect and click enable. You can also change the default name for the Connect. Now, the Discovery Connect will be available in the audio output section of the Roon/Roon Essentials Application. ELAC Discovery Connect Pro | www.elac.com | Page 7...
-
Page 9: Specifications
Ethernet; 12V Trigger (10mA); End Point Support Discovery Roon Ready 192kHz 24-bit (All Outputs) Accessories 12V DC, 2A Power Adapter; 2Pin Phoenix plug for 12V Trigger Dimensions (WxDxH) 17”x13.74”x2.08” (432x349x53mm) Net Weight 10.36lb (4.7Kg) ELAC Discovery Connect Pro | www.elac.com | Page 8... - Page 10 Passive Speakers (No built-in amplifier) ELAC Americas INC. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations).
