Summary of Contents for SifGun Evolution EXTMT3004

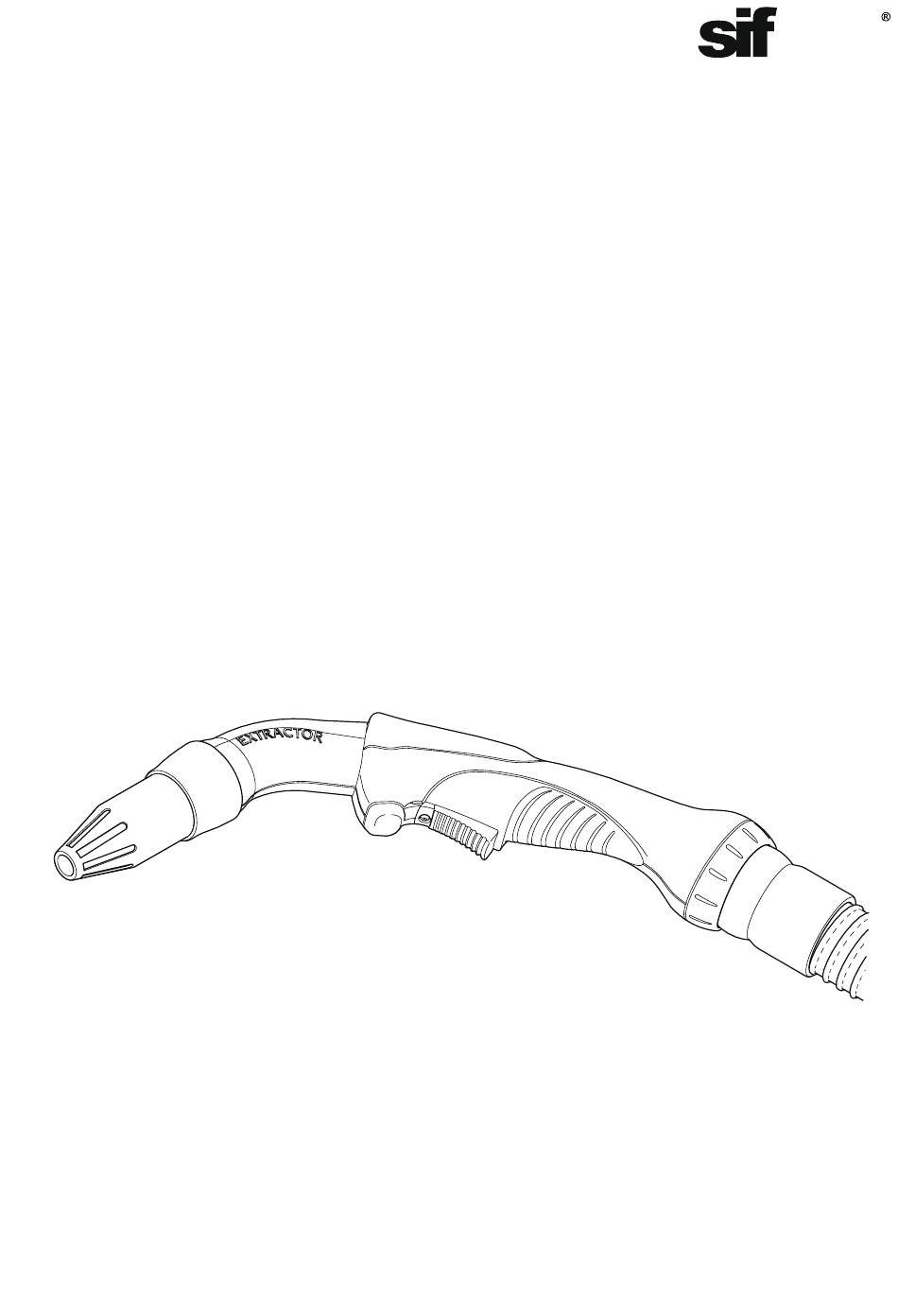

- Page 1 MIG Fume Extraction Torch EXTMT3004 EXTMT5004 Operation instructions Ref 2015-04...
-
Page 2: Table Of Contents
www.sifbronze.co.uk Contents 1. The SifGun Fume Extraction Torch 2. Safety 3. Technical specification 4. Unpack and Assemble before use 5. Installation and connection 6. Use of the equipment 7. Troubleshooting 8. Maintenance 9. Replace and Repair 10. De-installation 11. Shipment, storage and disposal Extractability ®... -
Page 3: The Sifgun Fume Extraction Torch
www.sifbronze.co.uk 1. The SifGun Fume Extraction Torch The SifGun Fume Extraction Torch is a patented MIG welding torch with integrated extraction at the nozzle of the welding torch. Therefore the extraction is close to the weld pool, so the fumes coming from the welding process are extracted immediately. -
Page 4: Safety
www.sifbronze.co.uk 2. Safety WARNING READ THESE SAFETY INSTRUCTIONS CAREFULLY. Failure to observe these safety instructions can lead to serious injury and/or damage to the product. Only operators with relevant knowledge of arc welding should use this product. • The vibration of the welding torch is less than 2.5m/s². No special precautions are required related to vibrations. -
Page 5: Technical Specification
www.sifbronze.co.uk 3. Technical specification SifGun Extraction Torch air SifGun Extraction Torch water cooled cooled Power rating - Mixed gas 300A 500A - CO2 320A 550A Duty cycle 100% 100% Contact tip Ø1.0-1.6mm Ø1.0-1.6mm Extraction flow rate between 55 and 65m³/h between 55 and 65m³/h Gas flow rate 14l/min... -
Page 6: Use Of The Equipment
www.sifbronze.co.uk 1. Plug in (A) the welding connection and fasten (B). 2. Plug in the extraction. 3. In case of a water cooled torch, plug in the cooling connections A (red) and B (blue). 6. Use of the equipment 14 l/min 65 m 55 m Start-up... -
Page 7: Troubleshooting
www.sifbronze.co.uk 7. Troubleshooting Symptom Possible causes No arc • Power to work piece or swan neck interrupted. • Defect power source or control unit. • Control signal is interrupted (cable). • Switch protection in the power source is not activated. Arcing to the work piece •... -
Page 8: Maintenance
www.sifbronze.co.uk 8. Maintenance WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH. Daily Regularly check if the protective gas and extraction openings are clean. If necessary remove the nozzle and clean the opening with the brush. Weekly Clean liner 1. -
Page 9: Replace And Repair
www.sifbronze.co.uk 9. Replace and Repair CAUTION All parts replacements and repairs that are not mentioned in this document must be done by a contracted distributor or Weldability Sif Overview of the user replaceable parts CAUTION Never replace parts of theSifGun Fume Extraction Torch with standard MIG parts. The parts of the torch are different. - Page 10 www.sifbronze.co.uk Replace Nozzle WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH. Replace Contact Tip WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH.
- Page 11 www.sifbronze.co.uk Replace Tip Adapter WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH.
- Page 12 www.sifbronze.co.uk Replace Center Ring WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH.
- Page 13 www.sifbronze.co.uk Replace Liner WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH.
-
Page 14: Installation
www.sifbronze.co.uk 10. De-installation WARNING ALWAYS SWITCH OFF THE WELDING MACHINE AND EXTRACTION UNIT BEFORE YOU REMOVE PARTS OF THE TORCH. Air cooled torch Water cooled torch 1. Disconnect the extraction. 2. Disconnect the cooling connections A (red) and B (blue). 3. -
Page 15: Shipment, Storage And Disposal
www.sifbronze.co.uk 11. Shipment, storage and disposal This welding equipment has been carefully checked and packaged before shipment. However, as damage may have occurred during shipping, please check package and components for damage through visual inspection. If package and/or equipment has been damaged contact last shipping agent immediately and keep (damaged) package for possible inspection. - Page 16 www.sifbronze.co.uk...
