Overview

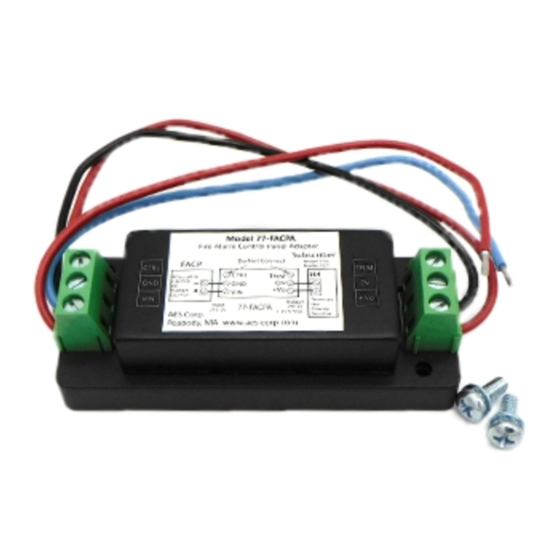

The 77-FACPA adapter provides isolated power between a Fire Alarm Control Panel and
an AES Model 7707 or Model 7177 subscriber.
This document has a wiring diagram, field install kit instructions and external mount
instructions.

Field Install Kit (77-FACPA-FKIT):

 77-FACPA
 Mounting Screws
(For mounting inside enclosure)

External Mount Assembly (77-FACPA-EXT):

 77-FACPA with factory installed leads
and factory mounted on standard
4 in. x 4 in. electrical box cover plate

Application

Refer to Model 7707 Installation Manual (40-7707) or Model 7177 Installation Manual
(40-7177) for details on FACP power source requirements.

Wiring

Refer to Figure 1. Wiring Diagram below.
AES Corporation
285 Newbury St. Peabody, MA 01960
AES 77-FACPA
FACP Adapter
1 ea.
2 ea.
1 ea.

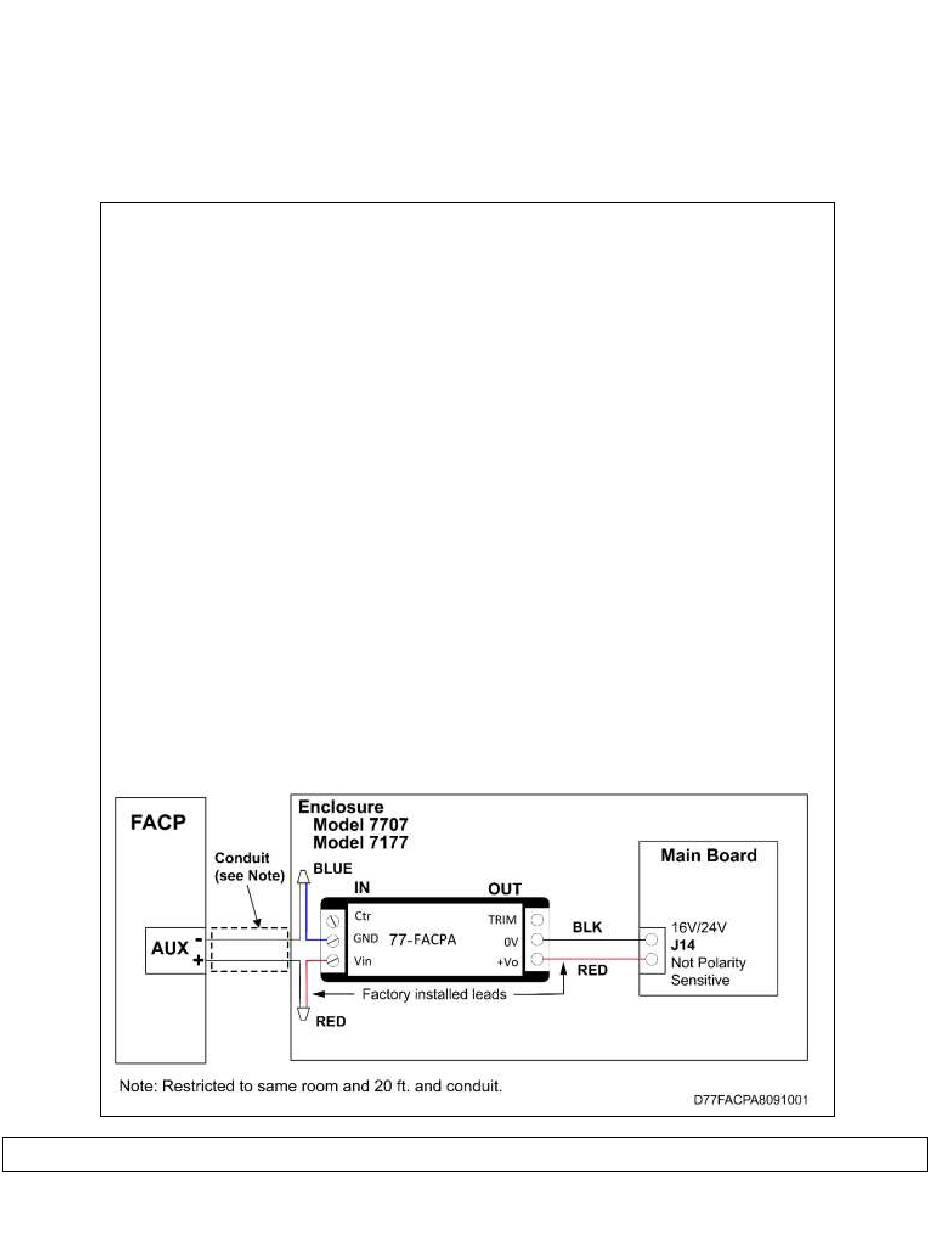

Figure 1. Wiring DiagramE
AES 77-FACPA
40-77-FACPA Rev 2
11/07/2018
Pg. 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 77-FACPA and is the answer not in the manual?

Questions and answers

Summary of Contents for AES 77-FACPA

  • Page 1 AES 77-FACPA FACP Adapter Overview The 77-FACPA adapter provides isolated power between a Fire Alarm Control Panel and an AES Model 7707 or Model 7177 subscriber. This document has a wiring diagram, field install kit instructions and external mount instructions.
  • Page 2 1. Locate mounting holes on side of enclosure: 2. Place screws supplied in mounting holes: 3. Fasten the 77-FACPA to the inside side of the enclosure: 4. Wire the assembly using wiring diagram and instructions on Page 1 External Mount Assembly (77-FACPA-EXT) Instructions: NOTE: A 4 in x 4 in.
