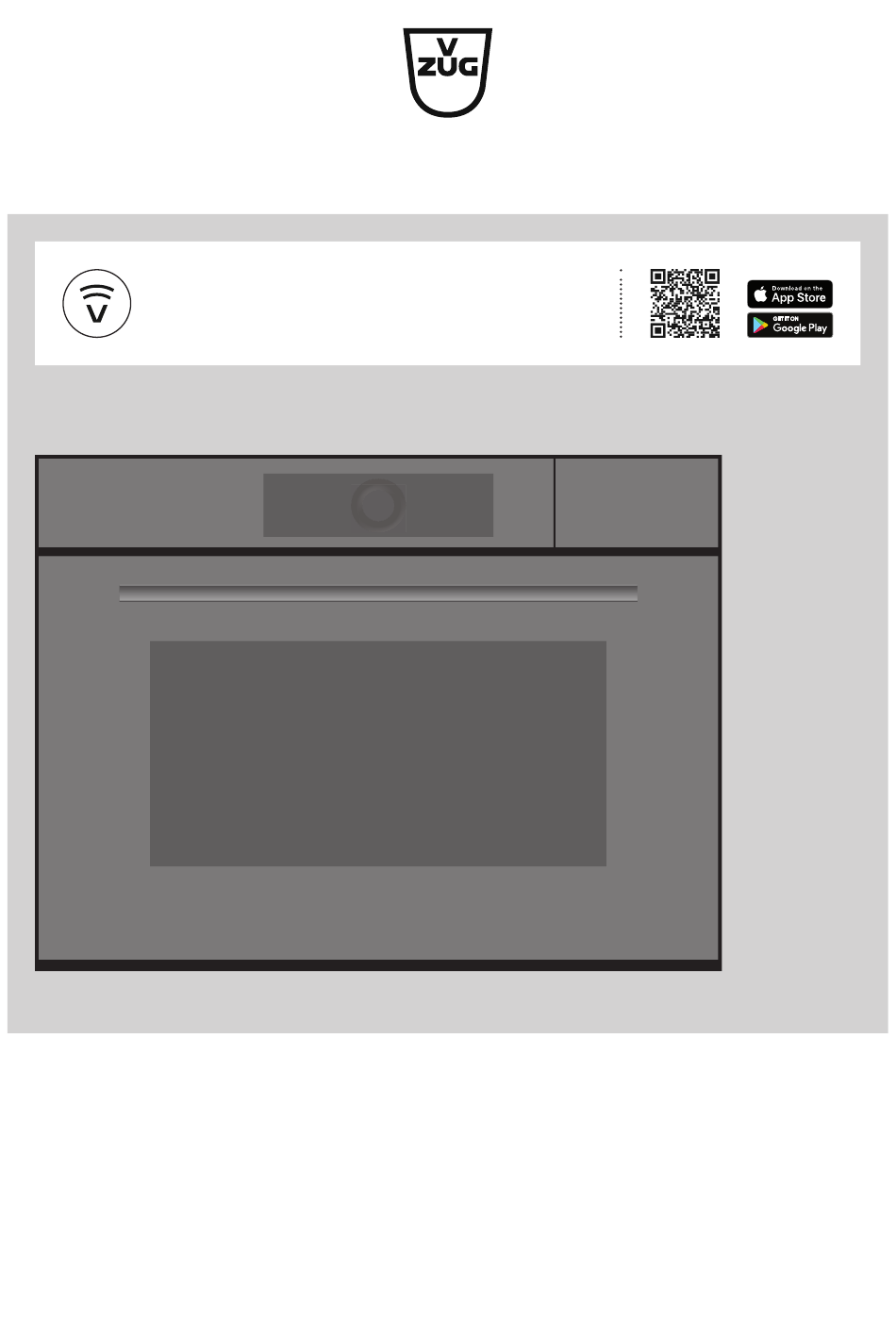

- Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions CombiSteamer V6000 Steam cooker with fixed water connection...
- Page 2 Validity These operating instructions apply to: Model designation Type Size system CombiSteamer V6000 45F CS6T-23033, CS6T-23045 60-450 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...
-
Page 3: Table Of Contents
Checking and changing the settings .... 22 5.17 Recipe book ............ 43 4.10 Preheating ............. 22 5.18 EasyCook ............... 44 4.11 Setting to start later .......... 23 V-ZUG-Home 46 4.12 Application tips............. 23 Conditions .............. 46 4.13 Favourites.............. 24 Initial set-up............ 46 4.14 Pinning .............. 25... - Page 4 V-ZUG Home ............ 49 7.10 Appliance information ......... 50 7.11 Factory settings............ 50 7.12 EcoManagement.......... 50 7.13 Customer Services .......... 51 Care and maintenance 51 Cleaning the exterior........... 51 Cleaning the cooking space...... 51 Intensive cleaning .......... 52 Steam cleaning ............ 53 Cleaning the appliance door ...... 54 Cleaning the door seal ........ 55 Replacing the door seal ........ 55...
-
Page 5: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 6: Instructions For Use
1 Safety precautions to touch the heating ele- ▪ Only use the food probe re- ments. Children under 8 commended for this oven. years of age must be kept ▪ Under no circumstances use away from the appliance un- a steam cleaner to clean the less they are constantly su- appliance. - Page 7 1 Safety precautions ▪ If the appliance is not functioning prop- Correct use erly, disconnect it from the power sup- ▪ The appliance is designed for use in ply immediately. the home for preparing food. Under no ▪ Ensure there are no foreign bodies or circumstances flambé...
- Page 8 1 Safety precautions ▪ Accessories get hot in the cooking space. Use protective gloves or oven cloths. Caution: Risk of injury! ▪ Be careful not to put fingers in the door hinges as there is otherwise a risk of in- jury if the appliance door is moved.
-
Page 9: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective blue film from out of the cooking space. ▸... -
Page 10: Appliance Description
3 Appliance description Appliance description Construction Operating and display elements Ventilation opening Door handle (depending on model) Appliance door Operating and display elements App view List view Favourite for bread Here is where you can make User settings all key settings and customize your appliance. - Page 11 Start screen Cooking space illumination List view Open water compartment flap App view Display lock AutoDoor (depending on model) Quiet mode Switch off Clock V-ZUG-Home Ready to start Soft roasting seared Fillet of beef Rare Start 2h00 13:21 57°C 25°C...
-
Page 12: Cooking Space
3 Appliance description Cooking space Using protective inserts or aluminium foil can damage the appliance. Do not place any protective insert or aluminium foil on the floor of the cooking space. Appliance door Water tank compartment Water outlet with filter Temperature sensor Door seal Knurled nut... - Page 13 3 Appliance description Stainless steel tray ▪ Use together with the wire shelf and the perforated cook- ing tray as a drip tray. ▪ Baking tin for baking e.g. aperitif nibbles and biscuits on two levels using the application. ▪ If not fully covered by the baking, its shape can become distorted during baking.
-
Page 14: Autodoor (Depending On Model)
3 Appliance description 3-point food probe The food probe has three measuring points for particularly precise temperature measure- ment. These also help to record the food probe temperature correctly even if the food probe has not been inserted correctly. The measuring points are at points 1, 2 and 4 on the scale of the food probe. -
Page 15: Operation
4 Operation ▸ Remove the obstruction from the appliance door and trigger «AutoDoor» again using function button. – If this fails repeatedly, contact Customer Services. A warning tone indicates automatic movement of the appliance door. The warning tone is emitted before and during automatic movement of the appliance door. –... -
Page 16: Filling The Water Tank
4 Operation Moving an app The apps can be moved and reordered in the app view. ▸ Press and hold the desired app 2 and move it to change the app order. – The apps are spread over several pages; only one app can be moved at a time. ▸... - Page 17 4 Operation ▸ Press «OK» or touch the application. – The submenu with the associated applications appears in the display. Hot air Hot air humid The food is gently cooked through in any energy- Hot air efficient way. Ideal for gratins with steaming and braised dishes.
-
Page 18: Changing An Application
4 Operation Starting an application ▸ Press «Start» to start the application. – The pulsing circle 2 of the CircleSlider indicates that operation has started. – The progress bar 3 in the CircleSlider shows the countdown to the time remaining or the preheating status of the set application, if set. -
Page 19: Delayed Start / End
4 Operation Setting range Application/function Minimum Maximum Applications with steam 10 s 10 h Applications with hot air 10 s 24 h Vacuisine 10 s 72 h Keep warm 5 min 1 h 30 min Wellness 5–15 min 15 min–1 h Warming plates in the cooking space 30 min 10 h... -
Page 20: Food Probe Temperature
4 Operation ▸ Press «Start» to start the delayed start. – The time set or remaining to the start of opera- Appliance starts in: 32min tion and the end of operation appear in the dis- play: 15min 13:21 ▸ If necessary, check and change the settings (see page 22). –... -
Page 21: Options
4 Operation ▸ Check and change the settings. – When cooking, the current food probe temperat- 55min 13:21 ure is shown in the bottom part of the display next to the target temperature. – The set target temperature is displayed to the 75°C 35°C right of... -
Page 22: Checking And Changing The Settings
4 Operation ▸ Touch the desired option. ▸ In the right content pane of the display, either turn on the option with the switch or touch the value range and set the desired value using the CircleSlider. – Each defined option is marked with a ▸... -
Page 23: Setting To Start Later
4 Operation Introducing food As soon as the cooking space has preheated, – an acoustic signal is emitted and a message is displayed. If set, the operating time does not start to run until the message has been acknowledged. ▸ Place the food in the cooking space. ▸... -
Page 24: Favourites
4 Operation 4.13 Favourites Creating a favourite Favourites can be created from all applications, with the exception of the cleaning pro- grammes. And all options, with the exception of «End», can be saved. Up to 50 favour- ites in total can be created. ▸... -
Page 25: Pinning
4 Operation Deleting favourites The favourite can only be deleted in the app view. ▸ If required, touch – The start screen appears as an app view. ▸ Press and hold the favourite 1. – Quick information appears above the app. ▸... -
Page 26: Timer
4 Operation 4.15 Timer The timer functions like an egg timer. It can be used independently of other functions and applications. Setting and starting the timer ▸ Touch the «Timer» function button in the right function bar. – The timer is shown in the display. –... -
Page 27: Illumination
4 Operation 4.16 Illumination The cooking space illumination can be switched on and off at any time. The cooking space illumination switches on automatically 3 minutes before the set duration is up. Switching the cooking space illumination on ▸ Touch the «Illumination»... -
Page 28: Quiet Mode
4 Operation 4.19 Quiet mode The appliance runs as quietly as possible when in quiet mode. All tones are set to the lowest volume. The quiet mode can be turned on and off in the user settings (see page 47) as well as by using the quick access in the function bar. Turning on the quiet mode ▸... -
Page 29: End Of Operation
4 Operation – The application is cancelled. – A feedback tone is emitted, if enabled. – Depending on the application, the following available options are displayed: ▪ Confirm the question «Do you really want to end the application?» with «Yes». ▪... -
Page 30: End Of Operation When Autodoor Is On (Depending On Model)
4 Operation Removing the cooked food from the cooking space Risk of burns! Hot steam or hot air may escape from the cooking space when the appliance door is opened. The accessories get hot. Use protective gloves or oven cloths. ▸... -
Page 31: Switching The Appliance Off
4 Operation ▸ Confirm the selection with «OK». – The ready to start screen with reduced setting options appears in the display. ▸ If required, touch and set the options (see page 21). ▸ Press «Start» to start the subsequent step. Cancelling operation To cancel operation, the following options are available: ▪... -
Page 32: Applications
5 Applications Applications Hot air Temperature range 30–230 °C Recommended value 180 °C Level 2 or 1 + 3 A heating element behind the back wall of the cooking space heats up the air inside the cooking space, which is circulated evenly. Uses ▪... -
Page 33: Hot Air With Steaming
5 Applications When baking using this application, do not preheat. This lowers the energy con- sumption. The cooking time can be longer than with classical hot air. Select a lower temperature (reduce by approximately 20 °C) than for top/bottom heat as the heat transfer is more efficient. Hot air with steaming Temperature range 80–230 °C... -
Page 34: Regeneration
5 Applications Regeneration Temperature range 80–200 °C Recommended value 120 °C Level 1 to 4 The cooking space is heated by steam and hot air. The food is reheated gently without drying it out. Uses ▪ Reheating pre-cooked foods and convenience foods Possible to regenerate on several levels simultaneously. - Page 35 5 Applications Tips for best results ▪ Only use fresh food. This applies to meat and fish in particular. Food that has already been kept for some time has a higher bacterial content and is therefore unsuitable for Vacuisine. ▪ Meat quality: Both lean (e.g. fillet) and marbled, more sinewy (e.g. stewing meat and belly pork) cuts of meat can be prepared optimally using Vacuisine.
-
Page 36: Professional Baking
5 Applications Monitoring the food probe temperature using the food probe ▸ When the food probe temperature and the cooking space temperature are roughly the same: – an acoustic signal is emitted. – in the display appears: «Food has reached food probe temperature.» –... -
Page 37: Soft Roasting
5 Applications ▪ For a nice, crispy crust: the smaller the item to be baked, the higher the temperature. The optimal temperature for bread buns is generally higher than for a single loaf of bread. Selecting and starting professional baking ▸... - Page 38 5 Applications Cut of meat Degree of Recommended target doneness temperature °C Fillet of beef rare medium rare medium well done Sirloin, striploin medium well done Rump of beef medium well done Rib-eye or prime rib medium well done Shoulder of beef medium well done Rump or loin of pork...
-
Page 39: Keep Warm
5 Applications Selecting and starting soft roasting Once the programme has started it is no longer possible to change the target tem- perature. ▸ Long touch the display. – The start screen appears. ▸ Select the «Soft roasting» application group and confirm with «OK», if required (see page 16). -
Page 40: Warming Plates In The Cooking Space
5 Applications 5.12 Warming plates in the cooking space If the cooking space is already hot, open the appliance door and allow the cooking space to cool down for 3 to 4 minutes before starting the «Plate warmer» function. This is to protect the tableware from damage through stress cracking. ▸... -
Page 41: Hygiene
5 Applications 5.14 Hygiene «Hygiene» can be used for sterilizing containers. The following applications are avail- able: Sterilizing baby bottles Final sterilization of jam jars Sterilizing preserving jars Sterilizing baby bottles This application replaces the need to boil feeding bottles in water. Before starting the application: ▸... -
Page 42: Regenerateomatic
5 Applications ▸ Press «Start» to start the application. – The following appears in the display: «Determining operating time». – The countdown to the time remaining appears in the display. 5.16 RegenerateOmatic How it functions With RegenerateOmatic, food can be heated without setting a temperature or operating time. -
Page 43: Recipe Book
5 Applications 5.17 Recipe book The following recipe book is available for this appliance: ▪ «Steaming. With a passion for detail.» Recipes that are tailored to your appliance can be found in the recipe book. They are pre-programmed in the appliance and once started run automatically. Starting a recipe For recipes that do not require preheating, place the food in the cold cooking space. -
Page 44: Easycook
5 Applications Proceed as follows: ▸ Choose a recipe. ▸ Set a delayed start (see page 19). ▸ Select «2. step» in the overview of steps and confirm with «OK». – The recipe is now ready to start and starts from the second step when the delayed start is up. - Page 45 5 Applications Selecting and starting foods A delayed start is only suitable for food that does not need to be refrigerated or to rise. ▸ Long touch the display. – The start screen appears. ▸ Select the «EasyCook» application and confirm with «OK», if required (see page 16).
-
Page 46: Zug-Home
– A 6-digit PIN appears in the display of the appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password. -
Page 47: User Settings
7 User settings User settings Adjusting user settings ▸ Long touch the display. – The start screen appears. ▸ Select «User settings» and confirm with «OK», if required (see page 16). ▸ Select the desired user setting. – The main menu for the desired user setting or another submenu with more user settings appears in the display. -
Page 48: Individual Settings
7 User settings Feedback tones The volume of the feedback tones can be adjusted up or down or turned off completely. Certain feedback tones are not muted for legal and safety reasons. A short feedback tone is emitted when the appliance is switched off even if the set- ting is set to «Off»... -
Page 49: Date And Time
If set to «On», a short preheat tone is emitted when it is time to put the food into the cooking space. Date and time Time synchronization The «Internet» setting is set automatically when connecting to V-ZUG-Home. The time, date and time zone are then synchronized directly from the app. Date The date can be called up and changed. - Page 50 Resets the start screen to the app view. Favourites remain unchanged. Favourites Entering «OK» clears all existing favourites. V-ZUG-Home Disconnects all connections to mobile devices. Factory settings Resets the settings to the factory default state. All customized data will be lost.
- Page 51 8 Care and maintenance Resetting Resets all EcoManagement counters except for total consumption. 7.13 Customer Services This part of the menu is intended for service staff and is password-protected. Care and maintenance Risk of burns from hot surfaces! Allow the appliance and the accessories to cool down before cleaning. Incorrect handling can result in damage to the appliance! Use soft cloths only.
- Page 52 8 Care and maintenance Intensive cleaning Not suitable for non-anodized aluminium surfaces or plastic surfaces. Wear pro- tective gloves and protective goggles. Immediately rinse away any splashes with plenty of water. The appliance must have cooled down before starting. Remove accessories, cookware or other objects from the cooking space, leaving the shelf guides.
- Page 53 8 Care and maintenance Wiping down the cooking space ▸ When the corresponding message appears in the display: Wipe down the cooking space. ▸ Confirm with «OK». – The cooking space is cleaned with steam. Excess cleaner is washed off. ▸...
- Page 54 8 Care and maintenance Cleaning the appliance door ▸ Clean the appliance door with a soft cloth dampened with water and a little washing- up liquid. ▸ Dry with a soft cloth. Removing the appliance door The appliance door is heavy. When removing and reinstalling the appliance door, hold it at the sides firmly with both hands.
- Page 55 8 Care and maintenance ▸ Remove the intermediate door glass seal 2. ▸ Gently push the middle door glass 3 and raise it slightly up and away from the hinges. ▸ Clean the glass panels and dry well. ▸ Reassemble the glass panels as follows: Insert the middle door glass 3 into the door frame and gently push it back towards the hinges.
- Page 56 8 Care and maintenance Cleaning the accessories and shelf guides Incorrect handling can cause damage! Do not clean the food probe in the dishwasher. ▸ Clean the food probe with a soft cloth dampened with water and a little washing-up li- quid.
- Page 57 8 Care and maintenance Descaler durgol swiss steamer Using the wrong descaler can damage the appliance! Only use «durgol swiss steamer» to descale your appliance. The descaler contains highly effective acid. Immediately rinse away any splashes with water. Follow the manufacturer's instructions.
- Page 58 9 Trouble-shooting Discarding the rinsing solution ▸ When the corresponding message appears in the display: remove the water tank, pour the rinsing solution away and fill it with 1 l warm water. ▸ Put the water tank back. – The rinsing phase starts automatically. –...
- Page 59 9 Trouble-shooting Message Possible cause Solution ▪ «Descaling ▪ Used unsuitable de- ▸ Descale again using the recommen- failed – Appli- scaler. ded descaler. ance was not ▪ Descaling was not ▸ If the message does not disappear descaled.» carried out correctly. after repeating the descaling process several times, note down the error message in full along with the serial...
- Page 60 9 Trouble-shooting Other possible problems Problem Possible cause Solution ▪ Appliance is ▪ A household fuse or ▸ Change the fuse. not working circuit breaker has ▸ Reset the circuit breaker. tripped. ▪ The fuse or circuit ▸ Contact Customer Services. breaker keeps blow- ing.
- Page 61 9 Trouble-shooting Problem Possible cause Solution ▪ The appliance ▪ Appliance can make Such noise is normal. makes noises noises at any time during opera- during operation (e.g. tion switching, pumping and fan noises). ▪ Clock is not ▪ Irregular mains fre- ▸...
- Page 62 10 Accessories and spare parts Accessories and spare parts The accessories shown below as well as spare parts can be ordered in addition to the scope of delivery of the appliance. Ordering spare parts is subject to charge, except in the event of warranty claims.
- Page 63 Own measurements can be im- precise and are not suitable for checking the accuracy of the temperature. 11.3 Product fiche In accordance with EU Regulation No.: 66/2014 Brand – V-ZUG Ltd Type of appliance – Steamer Model designation – CS6TF...
- Page 64 12 Tips and tricks Tips and tricks 12.1 Unsatisfactory cooking result... … for Soft roasting Result Solution ▪ The meat is tough. ▸ Extend the cooking time. ▸ For very lean joints of meat, shorten the cooking time. ▸ Do not use meat that is too aged. …...
- Page 65 13 Disposal … for regenerating food Result Solution ▪ Regenerated food is ▸ Next time, set a lower temperature and shorten the operat- dried out. ing time. ▸ Use «RegenerateOmatic humid». ▪ Too much condens- ▸ Next time, set a higher temperature and lengthen the oper- ate on or around the ating time.
- Page 66 13 Disposal 13.3 Disposal The «crossed‐out wheeled bin» symbol requires the separate collection of waste ▪ electrical and electronic equipment (WEEE). Such equipment can contain hazardous, environmentally harmful materials. ▪ These appliances are to be handed over to a designated collection point for the recyc- ling of electrical and electronic equipment and must not be disposed of with unsorted household waste.
- Page 67 Index Temperature measurement ....... 63 Cooking tray............13 3-point food probe........... 14 Cuisines from around the world....45 Customer Services .......... 51 Accessories ..........12, 62 Cleaning ............ 56 Date ..............49 App view ............10 Date and time ........... 49 Appliance disposal ..........
- Page 68 Problems ............58 Professional baking........36, 64 Getting started..........15 Selecting and starting ......... 37 Hot air ..............32 Quiet mode ............47 Hot air Eco ............32 Hot air humid ............ 32 Hot air with steaming ........33 Ready to start ........... 11 Hot massage stones ........
- Page 69 Validity..............2 Version numbers..........50 Volume Acoustic signals........... 48 Feedback tones ........... 48 V-ZUG App ............46 V-ZUG-Home..........49, 50 Warming plates in the cooking space ..40 Warranty extensions ........71 Water compartment flap ......... 48 Water hardness ..........48 Water tank ............
- Page 70 Notes...
- Page 71 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
- Page 72 Place your finger on the CircleSlider Move app and move it in a circle. Page change Adjustable value Favourite Temperature The temperature can be set using the CircleSlider. 1094278-03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
