www.costway.com
USER'S MANUAL

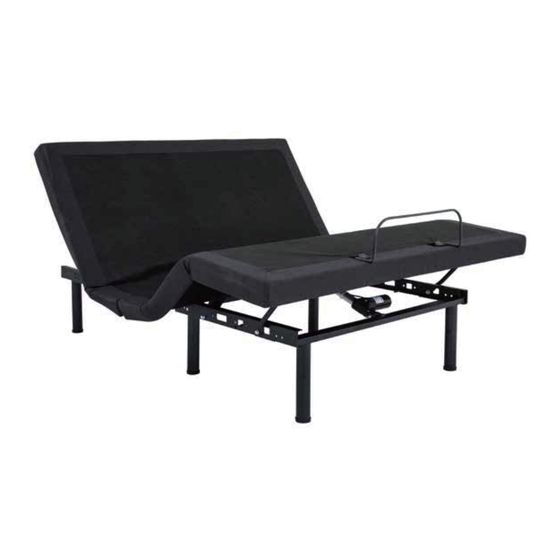

Adjustable Bed Base
EP24950US
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Follow Costway
Please give us a chance to make it right and do better！
Visit us: www.costway.com
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Costway EP24950US
Summary of Contents for Costway EP24950US
- Page 1 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Follow Costway Please give us a chance to make it right and do better！ Visit us: www.costway.com Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP!
-
Page 2: Before You Start
Contact Us! Do NOT return this item. Contact our friendly customer service department for help first. E-mail US: cs.us@costway.com UK: cs.uk@costway.com Before You Start Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. -
Page 3: Warranty Warning
Patent Pending 2-Year Parts and Labor on entire base Warranty. Attention: Read the following information before using this product. Failure to use a surge protection device could compromise safety or cause product malfunction and could void the electrical portion of your warranty. - Page 4 The decision to repair or to replace defective parts under this warranty shall be made, or cause to be made, by Costway at its option and in its sole discretion. Repair or replacement shall be the sole remedy of the purchaser. There shall be...
- Page 5 In the case where adjustable base needs to be replaced Costway does not cover or pay for any part of transportation costs. ADDITIONAL TERMS AND CONDITIONS This warranty does not apply;...
-
Page 6: Product Ratings
This can fool the pacemaker into "thinking" you are engaged in some sort of physical activity and require a faster heart rate. You may experience a sensation similar to when you are exercising. Consult your physician for further information. -
Page 7: Fcc Compliance
TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY: Make sure the base is in a flat position and the vibrating motors are turned off before unplugging the bed base from the power source. Always unplug the base from the electrical outlet before cleaning or servicing the base. - Page 8 Parts List All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for. 5"+7" legs & Bottom Caps for...
- Page 9 M250F Electronics Quick Reference Guide Foot Motor Control Box Head Motor Head Massage Motor Control Box Power Supply Power Cord Head Motor Foot Motor Remote Head Massage Motor...
- Page 10 Installation Guide Two people are required to set up the foundation. NOTE: To avoid damage to the foundation, always open the carton while the bed is in the flat position. 1. Open the shipping box, cut the ribbon securing accessory boxes &...
- Page 11 3. Uncoil the input power cord (connected to the control box's power port) and plug it into the power supply. 4. Uncoil the power cord and connect it to the power supply. 5. Carefully flip the foundation over onto its legs.
- Page 12 7. Locate the mattress retainer bar brackets. Slide the left side of the mattress retainer bar into the bracket. Pull the retainer bar to the opposite bracket and secure the right side. Middle Leg on King/ CK Size Only...
- Page 13 ML250F Remote Control Instructions Flat Position Lifts Head Lowers Head Lifts Foot Lowers Foot Head Massage Memory Positions ON/OFF Flash Light ON/OFF WARNING EXcessive use of the massage motors, over 30 minutes at a time, will cause the motor to shut down and possibly Overheat.
-
Page 14: One Touch Buttons
ADJUST ONE TOUCH BUTTONS One touch FLAT preset position Lifts Head Lowers Head One touch flash light on/off Lifts Foot One touch programmable preset positions ON/OFF Lowers Foot Head Massage ON/OFF Head Massage Pairing Remote The original remote that comes in the box is already paired to the foundation. - Page 15 STEP 3 Press and hold head lift and foot lift simultaneously, then press and hold the button on the cord of control box for 3 seconds until you hear 2 beeps sound, the remote is then paired. Pairing Button...
- Page 16 STEP 4 For ML250F press and hold the Head Down and Foot Down buttons simultaneously for 5 seconds on remote B. The remote flashlight will turn on. Within 10 seconds, press and hold the Head Up and Foot Up buttons on Remote A until the flashlight on Remote B start to flash.
- Page 17 Headboard Bracket Installation Guide Headboard brackets are an optional accessory and are not included. A 1/2" (13 mm) socket and 1/2" (13 mm) crescent wrench are necessary to complete installation. HEADBOARD BRACKET COMPONENTS (2) Headboard Brackets (2) T-Brackets (12) Short Bolts...
- Page 18 STEP 2 To put the T-Bracket and Headboard Bracket together, you will need (2) bolts and (2) nuts. Slip the bolts through the holes from T-Bracket to Headboard Bracket with the head of bolt facing outward. Use 1/2" (13mm) socket and 1/2" (13rmm) wrench to tighten the bolts.
-
Page 19: Troubleshooting
Troubleshooting In the event that the power foundation tails to operate, assess the symptoms and possible solutions provided in the chart below. SYMPTOMS SOLUTIONS Remote control Verify that the power cord is plugged into a illuminates and appears to working, grounded electrical outlet. - Page 20 SYMPTOMS SOLUTIONS Check batteries in wireless remote control, replace with two (2) new AAA batteries if necessary. Make sure that you are following the duty cycle of the motors (do not operate more than two minutes over an 18-minute period, or Head &...
- Page 21 SYMPTOMS SOLUTIONS A clicking noise is heard This is normal. The lift motor relays "click" when under the bed when they are engaged. No action is required. raising or lowering. If the vibration motor overheats, the thermal protection will turn the motor off. Wait 30 Massage motor overheats minutes, turn the massage back on.
- Page 22 Welcome to visit our website and purchase our quality products! With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office: Fontana, California UK office: Ipswich Reward Points...
