Summary of Contents for Philips B Line 325B1

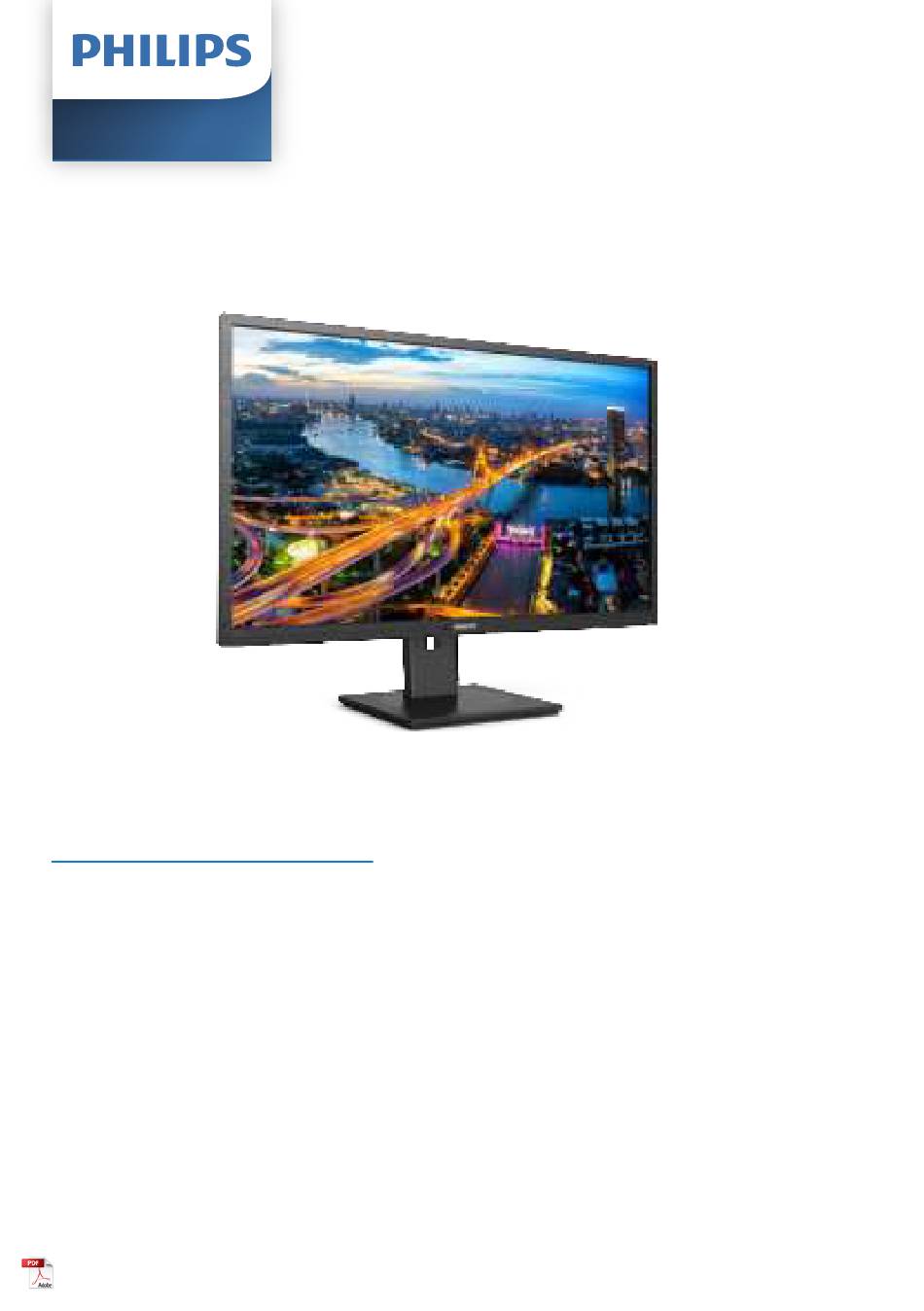

- Page 1 B Line 325B1 241B8 www.philips.com/welcome EN User manual Customer care and warranty 24 Troubleshooting & FAQs...
-
Page 2: Table Of Contents
7.1 Resolution & Preset Modes ... 22 8. Power Management ....23 9. Customer care and warranty . 24 9.1 Philips’ Flat Panel Monitors Pixel Defect Policy ....24 9.2 Customer Care & Warranty ..27 10. Troubleshooting & FAQs ..28 10.1 Troubleshooting ......28... -
Page 3: Important
• Please use approved power cord and production number of the product. provided by Philips all the time. If your power cord is missing, please 1.1 Safety precautions and contact with your local service maintenance center. - Page 4 1. Important the monitor by placing your hand or static images over an extended fingers on the LCD panel. period may cause “burn-in”, also known as “after-imaging” or “ghost • Unplug the monitor if you are not imaging”, on your screen. going to use it for an extensive • “Burn-in”, “after-imaging”, or period of time.
-
Page 5: Notational Descriptions
1. Important 1.2 Notational Descriptions The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails This marking on the product or on participation in national take-back... -
Page 7: Setting Up The Monitor
Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in screw located at the bottom of relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. - Page 8 2. Setting up the monitor Prevent Tipping Connecting to your PC When using the display, fasten the 325B1L LCD to a wall using a cord or chain that Fast Charger can support the weight of the monitor in order to prevent the monitor from falling.
- Page 9 2. Setting up the monitor 325B1LN USB charging This display has USB ports capable of standard power output including some with USB Charging function (identifiable with power icon ). You can use these ports to charge your Smart phone or power your external HDD, for example.
-
Page 10: Operating The Monitor
What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. - Page 11 2. Setting up the monitor The OSD Menu Resolution notification Below is an overall view of the structure This monitor is designed for optimal of the On-Screen Display. You can use performance at its native resolution, this as a reference when you want to 2560 x 1440.
-
Page 12: Remove The Base Assembly For Vesa Mounting
2. Setting up the monitor Height adjustment 2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 1. Extend the monitor base to its maximum height. - Page 13 2. Setting up the monitor Note This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. VESA Mounting Screw M4. Always contact manufacturer for wall-mount installation. 100mm 100mm...
-
Page 14: Image Optimization
Whether you're working with There are multiple selections: EasyRead, text applications, displaying images or Office, Photo, Movie, Game, Economy, watching a video, Philips SmartImage LowBlue Mode and Off. delivers great optimized monitor performance. Why do I need it? ... - Page 15 3. Image Optimization • Photo: This profile combines color Note saturation, dynamic contrast and Philips LowBlue mode, mode 2 sharpness enhancement to display compliance with TUV Low Blue Light photos and other images with certification, you can have this mode by...
-
Page 16: Smartcontrast
3. Image Optimization 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. -
Page 17: Adaptive Sync
4.Adaptive Sync • AMD Radeon R9 290 4. Adaptive Sync • AMD Radeon R9 285 • AMD Radeon R7 260X • AMD Radeon R7 260 ■ Processor A-Series Desktop and Adaptive Sync Mobility APUs • PC gaming has long been an imperfect AMD A10-7890K experience because GPUs and monitors •... -
Page 18: Powersensor
5. PowerSensor™ detection signal for distances up to 5. PowerSensor™ 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even when the user is within 100 cm • PowerSensor works on principle or 40 inches of the display, step up of transmission and reception of... - Page 19 5. PowerSensor™ Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength. Keep sensor lens clean, if the sensor lens is dirty, wipe it with alcohol to avoid reducing of distance detection .
-
Page 20: Designs To Prevent Computer Vision Syndrome (Cvs)
3. Ideal working posture syndrome (CVS) • Reposition your screen to Philips monitor is designed to prevent appropriate height and angle eye strain caused by prolonged according to your height. computer use. 4. Choose Philips monitor for easy-on- Follow below instructions and use eyes. -
Page 21: Technical Specifications
7.Technical Specifications 7. Technical Specifications Picture/Display Monitor Panel Type IPS Technology W - LED Backlight Panel Size 31.5" W (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.2727 (H) mm x 0.2727 (V) mm Contrast Ratio(typ.) 1000:1 Optimum Resolution 2560 x 1440 @ 60 Hz Viewing Angle 178°... - Page 22 7.Technical Specifications Power AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 50Hz 115VAC , 50Hz 230VAC, 50Hz Normal Operation 40.6 W (typ.) 40.3 W (typ.) 38.7 W (typ.) Sleep (Standby) 0.3 W 0.3 W 0.3 W 0.3 W 0.3 W...
- Page 23 500 to 1060hPa (Non-operation) Environmental and energy ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 24: Resolution & Preset Modes
7.Technical Specifications 7.1 Resolution & Preset Modes Maximum Resolution 2560 x 1440 @ 75 Hz Recommended Resolution 2560 x 1440 @ 60 Hz H. freq Resolution V. freq (Hz) (kHz) 31.47 720 x 400 70.09 31.47 640 x 480 59.94 35.00 640 x 480 66.67... -
Page 25: Power Management
8.Power Management 8. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 26: Customer Care And Warranty
Pixel Defect Policy single black pixel. Other combinations of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the industry's most advanced... - Page 27 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off' . must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
- Page 28 9.Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...
-
Page 29: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 30: Troubleshooting & Faqs
• Contact with Philips customer • First, ensure that the power button service representative immediately. on the front of the monitor is in the... -
Page 31: General Faqs
"burn-in", also Service contact information listed in known as "after-imaging" or "ghost Important information manual and imaging", on your screen. "Burn-in", contact Philips customer service "after-imaging", or "ghost imaging" representative. is a well-known phenomenon in * Functionality different according to LCD panel technology. - Page 32 • Shut down your computer, that the panel surface is not disconnect your old monitor and subjected to excessive shocks reconnect your Philips LCD monitor. and is protected from sharp or • Turn on your monitor and then turn blunt objects. When handling the on your PC.
- Page 33 “ghost image” symptoms any PC, workstation or Mac? that will not disappear and cannot be repaired. The damage mentioned above Ans.: Yes. All Philips LCD monitors are is not covered under your warranty. fully compatible with standard PCs, Macs and workstations.
- Page 34 10.Troubleshooting & FAQs Q14: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 35 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
