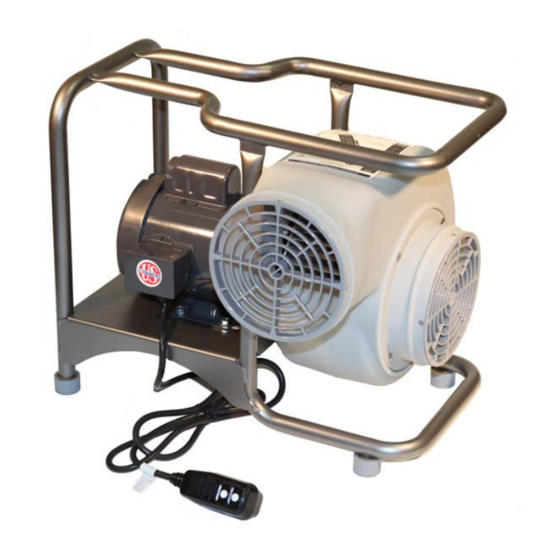

OPERATING INSTRUCTIONS AND REPLACEMENT PARTS
Models: SVB-E8, SVB-E8-2, SVB-E8EC,
SVB-E8EXP, SVB-A8, AND SVB-G8
WArNiNG
this manual must be read carefully and followed by all persons who have or will have the responsibility
for using or servicing this equipment. this equipment will perform as designed only if used according
to the instructions. otherwise it could fail to perform as designed, causing personal injury or death.
Air SyStEMS iNtErNAtioNAl, iNC.
829 Juniper Crescent, Chesapeake, Va, 23320
Telephone (757) 424-3967
Toll Free 1-800-866-8100
Fax No. (757) 424-5348
www.airsystems.com.
e-mail: sales@airsystems.com
Advertisement
Table of Contents
Summary of Contents for AIR SYSTEMS INTERNATIONAL SVB-E8
- Page 1 OPERATING INSTRUCTIONS AND REPLACEMENT PARTS Models: SVB-E8, SVB-E8-2, SVB-E8EC, SVB-E8EXP, SVB-A8, AND SVB-G8 WArNiNG this manual must be read carefully and followed by all persons who have or will have the responsibility for using or servicing this equipment. this equipment will perform as designed only if used according to the instructions.
- Page 2 SAFETY PRECAUTIONS rEAD AND FolloW All iNStrUCtioNS BEloW All ventilation procedures should comply with federal, state, and local regulations. Air quality should be tested prior to ventilating a confi ned space. A purge chart is provided on our website, www.airsystems.com, help assist in estimating the approximate time needed to ventilate confi ned spaces.
- Page 3 Attach all grounding wires and assure a complete circuit to the blower or fan in order to remove static charges. The Saddle Vent® is a registered trademark of Air Systems International, Inc. The Conductive Saddle Vent® is covered by U.S. and Foreign Patents...
-
Page 4: General Setup & Operation
General Setup & operation Models: SVB-E8EC, SVB-E8, & SVB-E8-2 StEP 1) Place blower in a clean fresh air environment. Set blower a minimum of 5 ft. from the man- hole opening. Note: inspect blower for damaged or worn parts. inspect all ducting and couplings for possible air leaks prior to blower operation. -
Page 5: Troubleshooting
Test voltage with meter. * Note: The use of generators is not recommended unless they are of sufficient output capacity. Specifications Model SVB-E8EC SVB-E8 SVB-E8-2 1/2 HP (.37 kw) electric, 3/4 HP (.56 kw) electric, 3/4 HP (.56 kw) electric,... -
Page 6: System Components
System Components SVB-E8 AND SVB-E8-2 SVB-E8EC ® ITEM # DESCRIPTION SVB-E8 SVB-E8-2 SVB-E8EC MOTOR MTR002 MTR021 MTR040 GFI POWER CORD ELCB013 ELCB013 ELCB013 INTAKE/DISCHARGE GUARD SVB-GRD SVB-GRD SVB-GRD RUBBER FOOT HDWR025 HDWR025 HDWR025 WHEEL HOUSING SVB-WH SVB-WH SVB-WH... -
Page 7: Model: Svb-E8Exp
General Setup & operation Model: SVB-E8EXP StEP 1) Place blower in a clean fresh air environment. Set blower a minimum of 5 ft. from the man- hole opening. Note: inspect blower for damaged or worn parts. inspect all ducting and couplings for possible air leaks prior to blower operation. Note: Air quality of the confined space should be tested prior to ventilation. -
Page 8: Ground Lug
System Components - Model: SVB-E8EXP ® ITEM # DESCRIPTION SVB-E8EXP EXPLOSION PROOF MOTOR MTR003 EXPLOSION PROOF ON/OFF SWITCH ELSW028 INTAKE/DISCHARGE GUARD SVB-GRDCND RUBBER FOOT HDWR025 WHEEL HOUSING SVB-WH-CND POWER CORD (SOLD BY THE FOOT) ELCB011 BLOWER WHEEL (SET SCREWS - FS5/16X038) METL039 GROUND LUG ELA051... -
Page 9: Model: Svb-A8
General Setup & operation Model: SVB-A8 StEP 1) Operate blower in shown position only. Place in a clean fresh air environment away from toxic gases and dust. Set blower a minimum of 5 ft. from the manhole opening. Note: inspect blower for damaged or worn parts. inspect all ducting and couplings for possible air leaks prior to blower operation. -
Page 10: Sight Glass
General Setup & operation Model: SVB-A8 StEP 5) Adjust pressure regulator clockwise to increase, counterclockwise to decrease motor speed. This adjustment will increase or decrease the air flow. Note: Available air pressure (psi) and volume (cfm) will determine blower performance. StEP 6) OIL FILL CAP The proper amount of oil mist has already been factory preset. - Page 11 troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Check pressure gauge on compressed air source to ensure proper supply pressure. Turn regulator knob Blower will not start Insufficient Pressure clockwise to increase air pressure to air motor and note the gauge pressure on the regulator Turn blower off and inspect fan blades, shaft, and housing for debris, damage, and loose screws.
- Page 12 System Components - Model: SVB-A8 ITEM # DESCRIPTION PART # MAINTENANCE PORT ST8PLA EXHAUST FILTER WL008A MUFFLER ASSEMBLY (INCL. ITEMS 26, 27, AND 28)) SVB-A8MFLR INLET FITTING QDH5PL8M RUBBER FOOT HDWR025 FILTER / REGULATOR ASSEMBLY WL040 PRESSURE GAUGE GA20160S LUBRICATOR WL020 GROUND LUG ELA051...
- Page 13 General Setup & operation CAUtioN! Gasoline engines produce carbon monoxide. the exhaust snorkel MUSt be used while operating these blowers. Do not operate gas blowers in explosive or potentially hazardous environments. All new gasoline blowers must be run for 30 minues to burn off residual oils and paint residue before putting them in service. StEP 1) Place blower in a clean fresh air environment.
- Page 14 General Setup & operation StEP 6) Check engine intake filter periodically and replace if necessary. StEP 7) Review and follow ALL safety precautions and run procedures found in the enclosed Briggs and Stratton/Honda manual prior to starting. (Some gasoline units are supplied with Honda engines as an option, Model SVB-G8H.) StEP 8) Start engine by placing the throttle adjustment to idle and choke adjustment to “START”...
- Page 15 System Components Model: SVB-G8 ITEM # DESCRIPTION SVB-G8 MUFFLER ASSEMBLY SVB-G8MNS MUFFLER HOSE SVB-G8MHNS INTAKE FILTER MTRA002 INTAKE PRE-FILTER MTRA001 MOTOR MTR011 INTAKE / DISCHARGE GUARD SVB-GRD RUBBER FOOT HDWR025 WHEEL HOUSING SVB-WH BLOWER WHEEL (SET SCREWS - FS5/16X038) METL039A Specifications - Models: SVB-G8 Model # SVB-G8...
-
Page 16: Warranty
The purchaser shall be solely responsible for compliance with all applicable Federal, State and Local OSHA and/or MSHA requirements. Although Air Systems International believes that its products, if operated and maintained as shipped from the factory and in accordance with our “operations manual”, conform to OSHA and/or MSHA requirements, there are no implied or expressed warranties of such compliance extending beyond the limited warranty described herein.
