SERVICE MANUAL
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's

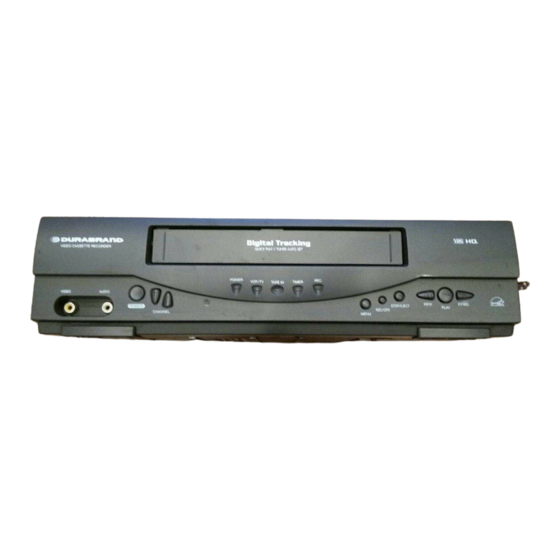

VIDEO CASSETTE RECORDER
VIDEO
VIDEO
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
DCV203
POWER
AUDIO
POWER
CHANNEL
DCV603
POWER
CHANNEL
L-AUDIO-R
POWER
REC
VCR/TV
TIMER
TAPE IN
STOP/EJECT
REC/OTR
MENU
MENU
REC/OTR
VCR/TV
TAPE IN
TIMER
REC
Sec. 3: Exploded views
and Parts List Section
I Exploded views
I Parts List
REW
F.FWD
PLAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCV203 and is the answer not in the manual?

Questions and answers

Related Manuals for Durabrand DCV203

Summary of Contents for Durabrand DCV203

  • Page 1 I Preparation for Servicing I Exploded views I Disassembly/Assembly of Mechanism I Parts List I Adjustment Procedures I Alignment Procedures of Mechanism I Schematic Diagrams I CBA’s VIDEO CASSETTE RECORDER DCV203 POWER VCR/TV TIMER TAPE IN VIDEO AUDIO STOP/EJECT F.FWD...
  • Page 2 IMPORTANT SAFETY NOTICE Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

  • Page 3: Table Of Contents
