SilverStone SST-ES02-USB Quick Start Manual

2.4ghz wireless computer power and reset remote switch

Table of Contents

Download this manual

Product Model No. SST-ES02-USB

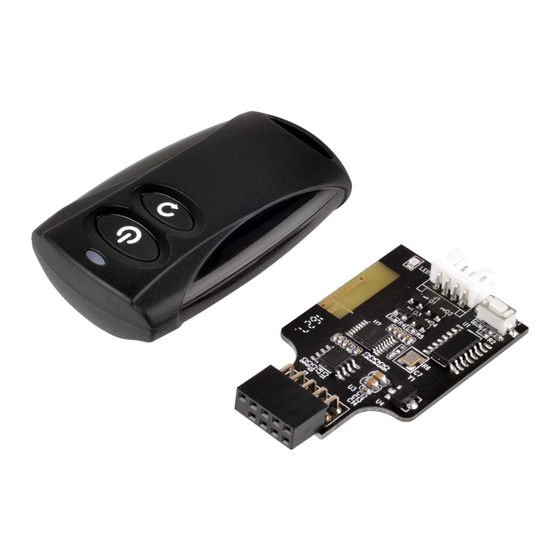

Product Description : 2.4GHz wireless computer power and reset remote switch

Package Content

1 x ES02 adapter

1 x 250mm cable

1 x Remote

To install ES02 properly, please follow the steps listed below:

￭ Turn off your computer and unplug the power cord and all cables

￭ Remove your computer's case cover

￭ Unplug the power cable and reset cable from motherboard

Carefully install ES02 into the USB 9 pin connector on the motherboard (Figure 1.1), then

connect the "POWER SW" and "RESET SW" to the corresponding pin headers on the

motherboard. (Figure 1.2)

Figure 1.1

USB 9 pin Connector

Figure 1.2

Power / Rest pin photo

Table of Contents

Do you have a question about the SST-ES02-USB and is the answer not in the manual?

Page 1 Product Model No. SST-ES02-USB Product Description : 2.4GHz wireless computer power and reset remote switch Package Content 1 x ES02 adapter 1 x 250mm cable 1 x Remote To install ES02 properly, please follow the steps listed below: ￭ Turn off your computer and unplug the power cord and all cables ￭...
Page 2 STEP 2: Press any button on the remote until the indicator light turns off on the ES02 adapter Warranty Information: This product has a limited 1 year warranty in North America, Europe, and Australia. For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.
Page 3 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.
