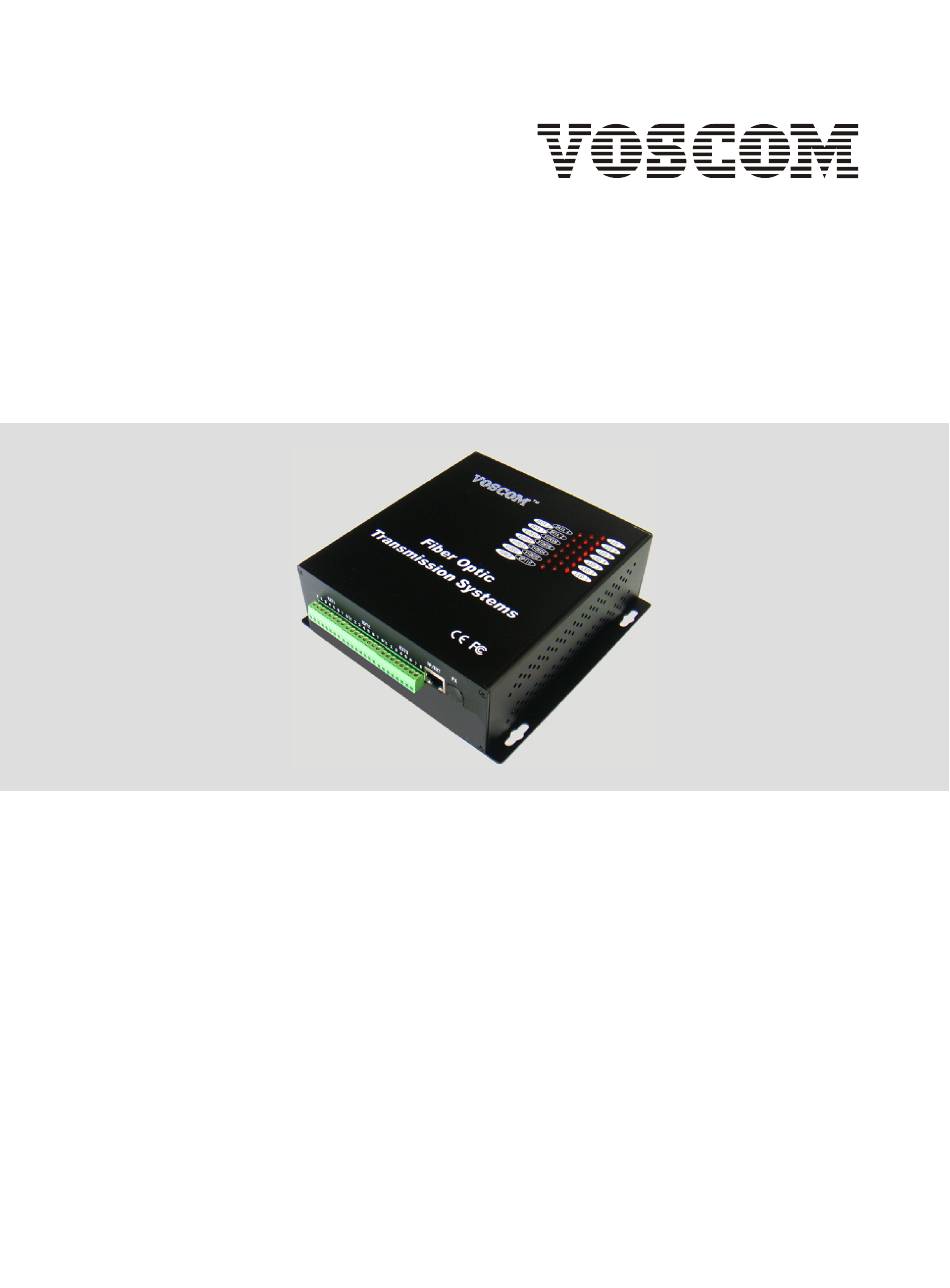

- Page 1 Installation Manual Fiber Optic Transmission Systems VOS-0800FT/R series 8-Channel Simplex Audio Transmission VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com... -
Page 3: Product Overview
Please feel free to consult factory for any special requirement and customization System Diagram: 8 x Audio 8 x Audio 1 Fiber optic Cable VOS-0800FT VOS-0800FR Transmitter Receiver Microphone Speaker Note: More detail specification please find in the datasheet or our website: www.voscom.com... - Page 4 En_3 Panel & Cable Connection Installation Instructions: NOTE1: Digital video optic transmitter and receiver should be used in pairs, one is Transmitter (LED is red), the other is Receiver (LED is green). FRONT PANEL EXT1 EXT2 EXT3 IP/EXT 3 4 5 6 7 8 3 4 5 6 7 8 3 4 5 6 7 8 None...
- Page 5 Terminal Block: 5ch~8ch audio input EXT2 Input Connect Audio5 3 4 5 6 7 8 Input Connect GND5 Input Connect Audio6 Input Connect GND6 Input Connect Audio7 Input Connect GND7 Input Connect Audio8 Input 8 Pin Terminal Block Connect GND8 Website:www.voscom.com...
- Page 6 Terminal Block: 5ch~8ch audio output EXT2 Output Connect Audio5 3 4 5 6 7 8 Output Connect GND5 Output Connect Audio6 Output Connect GND6 Output Connect Audio7 Output Connect GND7 Output Connect Audio8 Output 8 Pin Terminal Block Connect GND8 Website:www.voscom.com...
-
Page 7: Stand-Alone Installation
NOTE: Before mounting the VOS-0800FT transmitter/VOS-0800FR receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Stand-alone Mounting Size: 176.5mm x 158mm x 59mm Website:www.voscom.com... -
Page 8: Rack Mount Installation
19 inch 4U,14 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards. Support one slide-in power supply AC100V~AC240V VOS-CH06: 19 inch 6U,16 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards. Support two slide-in power supply AC100V~AC240V, one for redundancy. Typical Configurations: Website:www.voscom.com... -
Page 9: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 10 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 11: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 12 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 13 User Manmual Network Cable with RJ-45 connector (If the product with RJ-45 port) Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact...
- Page 14 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
