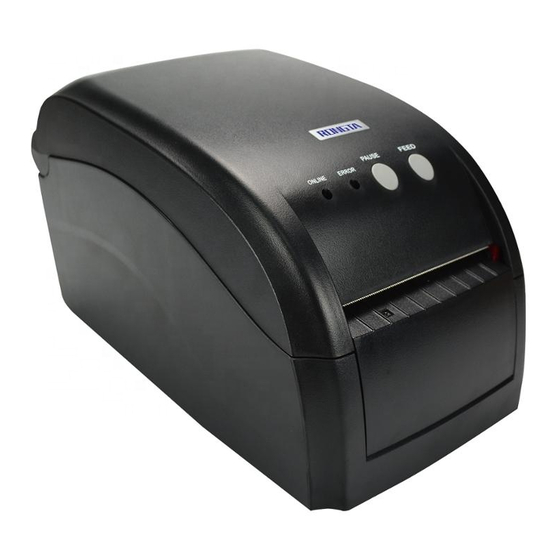

Thermal label printer

Advertisement

Xiamen Rongta Technology Co., Ltd.
Thermal Label Printer
RP80VI
User Manual
V1.0
1
www.rongtatech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP80VI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xiamen Rongta Technology RP80VI

  • Page 1 Xiamen Rongta Technology Co., Ltd. Thermal Label Printer RP80VI User Manual V1.0 www.rongtatech.com...
  • Page 2: Table Of Contents

    Xiamen Rongta Technology Co., Ltd. Content Content..............................2 1. Instructions............................3 1.1safety warnings..........................3 1.2 Notices............................. 3 2. SUMMARISATION..........................4 2.1Main Features........................... 4 3. Technical parameters...........................4 4. Printer installation and operation...................... 6 4.1 The dismantle of the printer......................6 4.2 The connection of the printer......................6 4.3 The loading of the paper roll......................7...
  • Page 3: Instructions

    Xiamen Rongta Technology Co., Ltd. 1. Instructions RP80VI series is thermal barcode printer with high performance and reliability. It is with high quality and competitive price and easy to use, so it is widely used in the factory, logistics, restaurant, tea shop, etc.
  • Page 4: Summarisation

    Xiamen Rongta Technology Co., Ltd. (11) Please keep this manual for reference. 2. SUMMARISATION 2.1Main Features ● Support thermal paper roll/thermal sticker/thermal label ● 2-6inch/s high printing speed ● Support 2D printing (QRCODE) ● Paper width from16mm-82mm and easy to use ●...
  • Page 5 Xiamen Rongta Technology Co., Ltd. 25PIN Parallel (male) bi-directional parallel interface, Parallel 8-bit parallel interface, support the BUSY/nAck interface handshake protocol. Standard RJ45-8P interface, 10M / 100M adaptive Ethernet transmission speed, 100M LED indicates network, data interface communication LED indicator.
  • Page 6: Printer Installation And Operation

    Xiamen Rongta Technology Co., Ltd. 4. Printer installation and operation 4.1 The dismantle of the printer Check the spare parts Please check the spare parts when opening the box, please contract the supplier or factory if anything missed. printer power adapter...
  • Page 7: The Loading Of The Paper Roll

    Xiamen Rongta Technology Co., Ltd. Attention: (1) First plug the DC24V power cord of the printer, and then plug the AC220V power, at last turns the power switch. Do not do that opposite way, or it will do harm to the printer.
  • Page 8: Function Of Starting Up

    Xiamen Rongta Technology Co., Ltd. 4.4 Function of Starting Up 4.4.1 Interval Sensor Adjusting It is necessary to adjust sensitivity of interval sensor under the situation below: 1. new printer 2. change label 3. Printer initialization This function is for testing sensitivity of interval sensor. When users change paper of different specification or initialize printer, it needs to set up the interval sensor adjusting.
  • Page 9: Indicator Light And Button

    Xiamen Rongta Technology Co., Ltd. 5. Indicator Light and Button There is tow indicator lights: blue light for power and red light for error. Tow button: PAUSE and FEED. Showed as follows: 5.1 Indicator Status Function Declaration Power light normally on, error light off...
  • Page 10: Printer Serial Interface

    Finally, loosen PAUSE button. 6. Printer Serial interface RP80VI Printer Serial interface is RS-232 standard, communication baud rate is 4800bps、 9600bps、 19200bps or 38400bps optional (you can adjust it by DIP switch),8 data bits, without odd and even number validation, one stop bit, support RTS/CTS and XON/XOFF Handshake Protocol.
  • Page 11: Printer Parallel Interface

    Printer serial interface DB9 POS host serial interface DB9 7. Printer parallel interface RP80VI printer parallel interface socket is 25PIN Parallel socket, 8 bits parallel transmission, support BUSY/nAck handshake protocol. Each PIN function of Printer parallel interface socket is as follows:...
  • Page 12 Xiamen Rongta Technology Co., Ltd. The Ethernet interface socket of RP80VI is RJ45-8P, supporting 10M/100M network, and the transmission speed is adaptive. Description Instruction Send differential line+ Send differential line - Receive differential line+ No function No function Receive differential line -...
  • Page 13: Printer Cash Drawer Port

    Cash box 2# cathode Power ground 10. Printer driver Two types of drive for RP80VI Series: one is to install driver program directly under Windows9x/7/8/10/ME/2000/XP/Linux/Mac, the other is to install drive through Serial, Parallel, USB or Ethernet. (1) Install driver under Windows Add printer in the Windows, and appoint the driver documents in the driver disk to Windows.
