Related Manuals for Steam Australia SV8W
Summary of Contents for Steam Australia SV8W

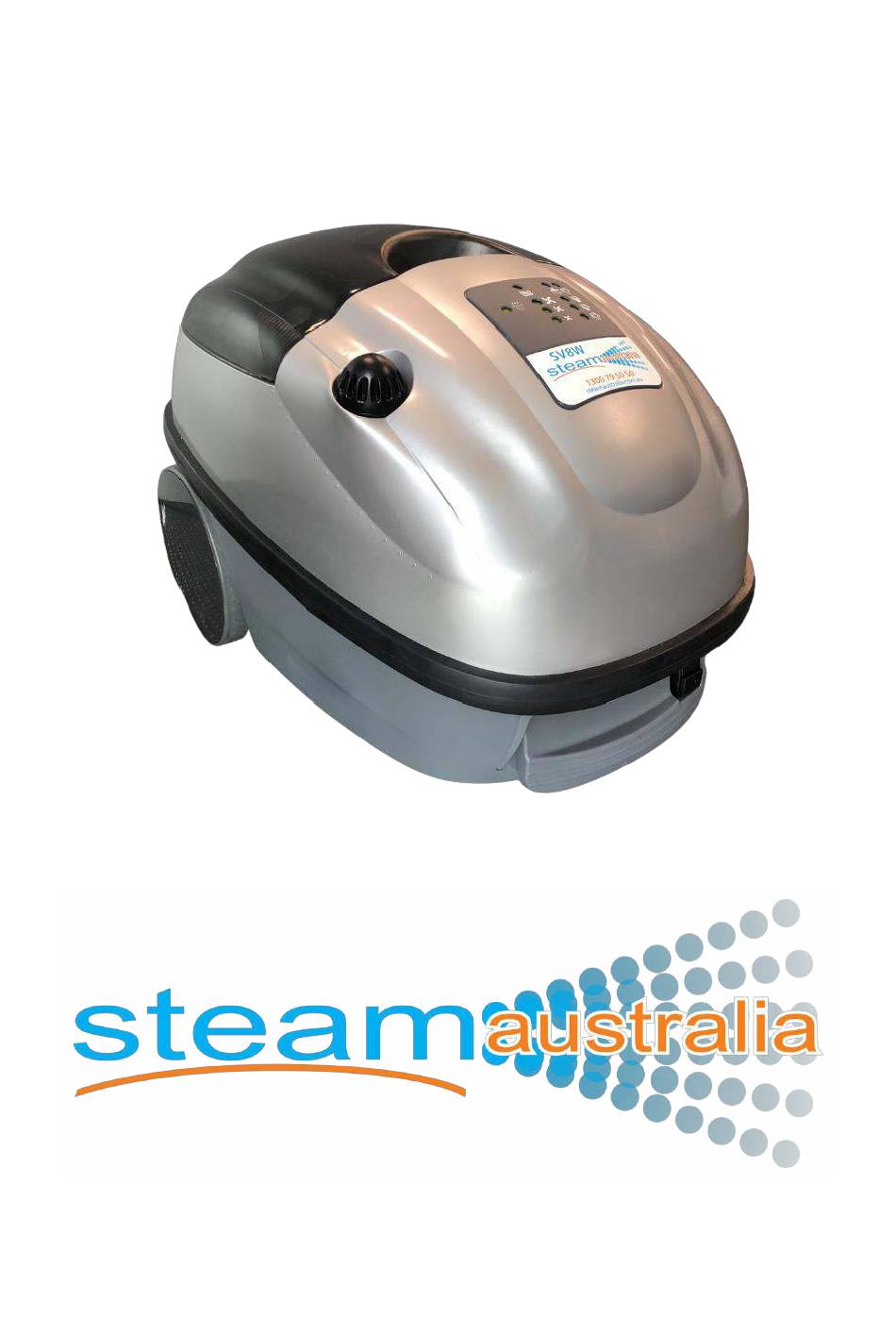

- Page 1 SV8W User Manual www.steamaustralia.com.au – info@steamaustralia.com.au – 1300 79 50 50...
-
Page 2: Table Of Contents
Water Quality ................................7 Filling with Water ................................7 Attaching/Removing the Hose ............................7 Using Your Appliance ................................ 7 Turning on the SV8W ..............................7 Steam Operation ................................7 Vacuum Operation ................................ 8 Water Injection Operation ............................9 Accessories Guide ................................10 Maintenance ................................... -
Page 3: Safety Precautions
Safety Precautions • Carefully read all the safety warnings and precautions in these instructions as they provide important information for the safe assembly, use and maintenance of the steam generator. • After removing the packaging, check that the steam generator is undamaged. If in any doubt, do not use the appliance and instead contact an authorised service agent. -
Page 4: Steam Cleaner Description
Steam Cleaner Description The SV8W permits cleaning and sanitising without the need to use chemicals. Steam cleaning is hygienic and helps us reduce our water and chemical consumption making us more environmentally responsible. High temperature steam removes dirt, kills bacteria and dust mites. -
Page 5: Components
Components 1. Transparent Cover 2. Carry Handle 3. Water Tank Cap 4. Wheels 5. Display Lights 6. Mains ON/OFF Switch 7. Steam Hose Socket Accessories Standard Accessories 1. AC8000135: Hose SVD 2.5m 2. AE0000011: Extension Tube S/V 500mm 3. AC8000047: Extension Tube S/V Short 250mm 4. -
Page 6: Optional Accessories
Optional Accessories AC8000412 SV8D/W Trolley w/ 5L Water Bottle……………………………………………………………………… AC8000094: Trolley SV8D/W Skywalker Infinite Grey……………………………………………………………… AC0010023 Brush Round Stainless Steel 30mm……………………………………………………………………… AC0010020 Brush Round Brass 30mm…………………………………………………………………………………… AC8000040 Mop Head Wall 250mm + AC0020001 Microfibre Mop Pad Wall 250mm…………………………………. AC8000016 Mop Head Floor 390mm + AC0020002 Microfibre Mop Pad Floor 390mm…………………………. -
Page 7: Before Switching On
Multi-outlet power boards typically do not have the capacity to accommodate equipment rated at high- wattage, therefore making it not suitable for use with the SV8W. If you need to use an extension cable with the SV8W, make sure that a “heavy duty” extension cable is used. -
Page 8: Vacuum Operation
The vacuum uses a tank that filters dirt using a water-filtered system. To operate the vacuum, the SV8W uses a magnetic-float sensor that senses if water is present in the vacuum tank. If there is no water, not enough water or too much water the vacuum will not turn on and the “Check Vacuum Tank”... -
Page 9: Water Injection Operation
Once the vacuum turns on, the vacuum levels can be toggled using the same white switch by holding on it: Vacuum Level Display Lights Medium High Water Injection Operation The Water Injection function only works when the steam function is active. Water gets injected down the steam line together with steam when trigger is active. -
Page 10: Accessories Guide
Accessories Guide Floor Steam + Vacuum Tool For hard floor surfaces such as: - Tiles - Marble AC8000034 Floor Tool S/V 300mm - Most sealed hardwood - Linoleum & Vinyl AC8000025 Insert Dual - Carpets Squeegee 300mm - Non-slip surfaces AC8000012 Insert S/V First, use high steam pressure to lift Carpet Glider 300mm... - Page 11 Detailing Extension For cleaning and sanitizing areas such as: - Sinks AC8000024 Nozzle Detail - Toilets w/Extension - Car interior & exterior - Hard to reach nooks & crannies 150mm S/V Head As window squeegee function: Attach the AC8000029 squeegee insert.
- Page 12 S/V Detailing Nozzle + Small Nylon Brush For detail cleaning in kitchens, bathrooms and other areas: - Tile grouts (walls and floors) - Drains - Cooktops - Bathtubs AC8000023 Nozzle S/V Detail For best results, hold brush on angle 2 x AE0000011 to clean sides of the grout line, and Extension Tube S/V then tilt in other direction to clean...
- Page 13 Wall Mop Head + Microfibre Mop Pad (Optional Accessory) AC8000040 Mop Head Wall 250mm For hard wall surfaces and ceilings. AC0020001 Microfibre Used for cleaning dirt, dust and food Mop Pad Wall 250mm stains off walls. Can also be used to AC8000041 Adapter S/V to sanitise walls in kitchens and other 2 x AE0000011 Extension...
-
Page 14: Maintenance
(Fig. 3). This will expose the brass boiler plug (Fig. 4). Prepare the pan or container by placing it underneath the SV8W to catch any water that will drain later. NOTE: To avoid damaging the SV8W by losing balance off the platform, hold the top handle with your free hand or strap the machine onto the platform. -
Page 15: Servicing
Follow the steps in “Boiler Maintenance” to drain the boiler. If problem persists, contact your local authorised service agents. If you are unsure about any symptoms you should stop use of the steam cleaner and contact Steam Australia or your local authorised repair agent.
