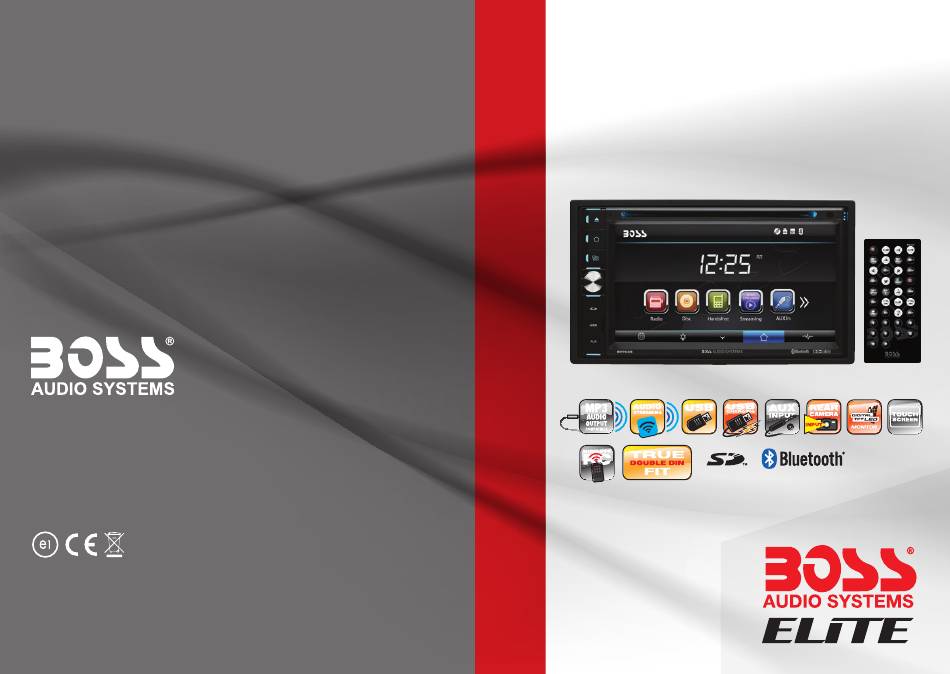

USER'S MANUAL
BV765B
BLUETOOTH® | DVD/MP3/CD Y AM/FM RECEPTOR
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
www.bossaudio.com
800-999-1236 US Toll-free
805-751-4853 Customer Service
tech support: www.bossaudio.com/support/technical-support
0817
Pod® / iPhone® son marcas comerciales de Apple, Inc., registradas en los EE.UU. y otros países.
BOSS Audio Systems no está afiliado con Apple, Inc.
Las marcas registradas marca Bluetooth® y sus logotipos son marcas registradas propiedad de Bluetooth SIG, Inc. y cualquier uso de dichas marcas por parte de
BOSS Audio Systems es bajo licencia. Otras marcas y nombres comerciales pertenecen a sus respectivos propietarios.
USER'S MANUAL
BV765B
BLUETOOTH®
DVD/MP3/CD Y AM/FM RECEPTOR
CON PANTALLA DIGITAL TFT LED DE 6.5" (165 mm)
Advertisement
Table of Contents
Related Manuals for Boss Audio Systems Elite BV765B
Summary of Contents for Boss Audio Systems Elite BV765B
- Page 1 Las marcas registradas marca Bluetooth® y sus logotipos son marcas registradas propiedad de Bluetooth SIG, Inc. y cualquier uso de dichas marcas por parte de BOSS Audio Systems es bajo licencia. Otras marcas y nombres comerciales pertenecen a sus respectivos propietarios.
- Page 2 To ensure safety while driving and to comply with laws, drivers should not watch video or operate the video device while driving.
-
Page 3: Table Of Contents
Congratulations on your purchase of a Boss Audio Systems Multimedia Receiver. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will offer you years of entertainment pleasure. Content Accessories ………………………………………………………………………………………………………………………………………... Unit Installation ……………………………………………………………………………………………………………………………….. -
Page 4: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring (5) Rubber (2) Washer, Cushion M5 Nut (3) Screw (6) Screw Left (7)installation (4) Bolt bracket Right (5) Mounting Strap Remote Control User Manual Power Cable Trim Ring... -
Page 5: Unit Installation
Unit Installation Bracket Screw 1. Put the 2 brackets to the left and right side of the unit; 2. Use screws to fix the brackets to the unit. Wire Connection The Description of the Input/output Interface of the Rear Chassis... -
Page 6: Parking Brake Connection
Parking Brake Connection In order to view videos, the parking brake wire must be connected, and the vehicle is parked. Connecting the reversing line to tail light on the car... -
Page 7: Speaker Connection
Speaker Connection Connect the speakers according to the following diagram, incorrect connections may damage the unit or your speakers. Do not chassis ground the speakers. Always observe correct polarity. Correct connection Left front - Right front | Left rear - Right rear Incorrect connections... -
Page 8: Button Description
Button Description 1. MIC 2. EJECT Button Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted automatically. 3. HOME BUTTON Press home button to return back to main menu. 4. -
Page 9: Remote Control
Remote Control 1: MODE 2: POWER 3: UP 4: BAND/RANDOM/CLEAR 5: ENTER 6: LEFT 7: DOWN 8: EJECT 9: STEREO/MONO/* 10:P.SCAN/REPEAT/# 11: SEEK-/BACKWARD 12: LOUD 13: STOP/PBC 14: OSD 15: PLAY/PAUSE 16: MUTE/BLUETOOTH 17: MENU/ROOT 18: SUB TITLE 19: RIGHT 20: SETUP 21: DIAL/ANGLE 22: HANG UP... - Page 10 Remote Control 10. P.SCN/ RPT /# button In DVD mode, press to repeat REP 1 => REP Title => REP ALL. In SD /USB mode ，press to repeat REP 1 => REP Dir => REP ALL. In Radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
- Page 11 Remote Control / SEEK + buttons In DVD/CD mode, press button to skip to the next track, press and hold button for two seconds to activate fast forward (FF) search in a track. In Radio mode, press and hold button to select station forward automatically, touch again will stop select station.
-
Page 12: Main Menu
Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. -
Page 13: Dvd Operation
DVD Operation DVD Player To start DVD player, tap on DVD button from main menu screen. Touch Screen Menu You will not see any buttons while DVD is played, buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons, slide the subtitle part of bottom screen to switch the following 2 pages. -
Page 14: Usb/Sd Operation
USB/SD Operation When a file of USB or SD card is played (music, video, photo), the screen will show following interface: Press it to repeat REP 1 => REP DIR => REP ALL Press it to skip to the previous track. Play/pause button. - Page 15 Settings Operation Tap Wallpaper button to setup wallpaper Tap Panel Adjust button to setup panel touch Tap center of the and hold at least 2S, after five point, then it will show OK in the picture. and press OK exit calibration mode. Tap time setting button to setup time Tap SWC item to program SWC 1) First check whether the car has steering wheel button.
- Page 16 Settings Operation [1].Subtitle Lang setting: With this option you can select the preferred language for the subtitles. When the selected language is recorded on the disc then this language will automatically be shown. If not, the first language recorded on the disc is displayed. [2].Audio Lang setting: With this option you can select the preferred language for the audio output.
-
Page 17: Bluetooth Operation
Settings Operation Bluetooth section Auto connect: select on/off Auto answer : select on/off Subwoofer Connect the subwoofer to the unit using SUB output (see electrical diagram), tap menu on screen enter into main menu setting choose setting menu, choose sound and set subwoofer on to enable subwoofer. Parking When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image. - Page 18 Bluetooth Operation Calling Button Tap on calling button to enter call mode. In call mode, the unit can be used as your phone, making and receiving calls are possible with bluetooth, simply tap phone number and tap button to make a call, and tap button to hang up.
-
Page 19: Aux-In Operation
Aux-In Aux-In MODE To start Aux-In Mode, tap Aux-In icon from main menu screen. connect the external audio signal source to this unit will display “NOW PLAYING”. Note: Aux-In does not support a video display function. So, there is “NO SIGNAL DETECTED” displayed if no audio signal input. -
Page 20: Notes Of Disc
Notes of Disc... -
Page 21: Troubleshooting
Troubleshooting Symptom Cause Remedy Replace with fuse of the same amperage. If Power does not turn Fuse is blown the fuse blows again, consult your store of purchase (No sound is produced) Incorrect wiring Consult your local retailer 1. Turn off the unit 2. - Page 22 Troubleshooting symptom Cause Solution If the power supply is properly connected The car ignition is not on to the car accessory switch the ignition key to “ACC” No power The fuse is blown Replace the fuse Presence of disc inside the Remove the disc in the player then put a Disc cannot be loaded player...
-
Page 23: General Specification
General Specification General Power supply 11~16V DC Current consumption Max. 10 A Maximum power output 80W x 4 channels (max) Compatible formats DVD ±R/RW Video, CD ±R/RW Audio & Video Dimensions (W x D x H) / weight 6.5” x 7.0” x 3.9” /4.6 lbs Working temperature range -4°F -- +140°F ESP function...
