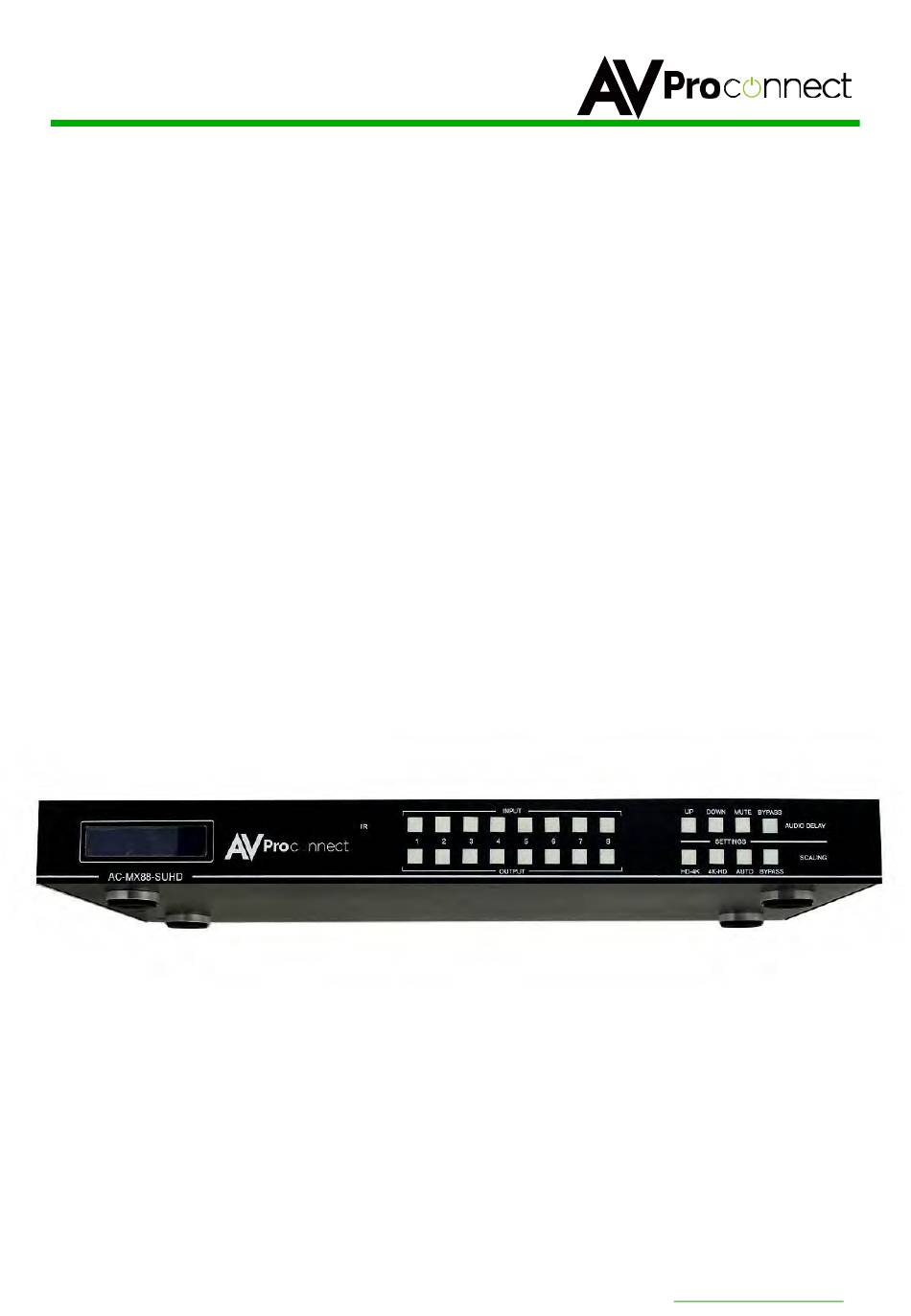

- Page 1 AC-MX88-SUHD User Manual AC-MX88-SUHD 18 GBPS True 4K60 4:4:4 8 x8 HDMI Matrix w/ Dual Audio De-Embedding, Scaling & Delay. pg. 1 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 2: Easy To Use

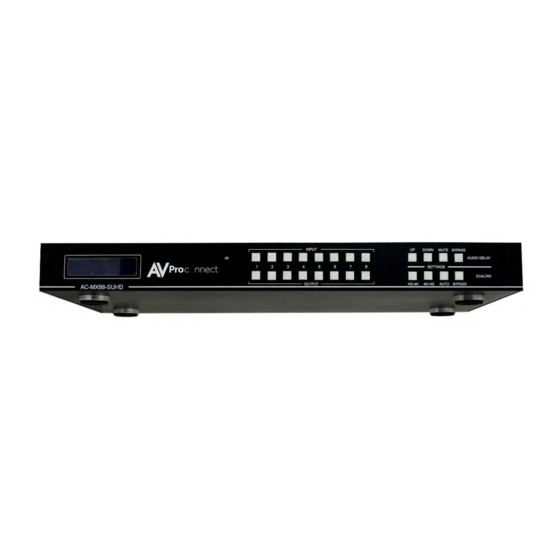

AC-MX88-SUHD The AC-MX88-SUHD is a true 4K60 4:4:4 8x8 HDMI matrix switch. Supporting HDMI 2.0, HDCP 2.2, HDR and up to 18 GBPS bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc...) to be shown on any of the connected displays. -
Page 3: Device Overview
AC-MX88-SUHD Device Overview: Definition - Matrix switchers provide the ability to route any input to any output or to multiple outputs at any time. Depending on the model, a matrix switcher can route HD, UHD or SUHD content in this manner. Additionally, since most venues have audio zones and video zones the requirement to breakout or strip off the audio in often necessary and has become almost a standard feature on matrix switches. - Page 4 AC-MX88-SUHD pg. 4 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 5: Quick Installation
Front Panel Control Switching: The AC-MX88-SUHD can be switched from the front panel by selecting the OUTPUT first then selecting the INPUT: Press the button (1 through 8) on the bottom row that corresponds with the OUTPUT (Display, or Sink Device) you would like to send a source. -
Page 6: Audio Delay Control
The current setting will be indicated on the LCD screen. Scaler Control: The AC-MX88-SUHD has scalers built into every output. The Scalers are set on the OUTPUT side of the switch and each can have separate settings. The Scaler Control has 4 controls: ... -
Page 7: Edid Management
AC-MX88-SUHD EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232. -
Page 8: Cascade Mode
The left arrow button decrements to the next lower input port, and the right arrow increments to the next input port. Figure 2 ~ AC-MX88-SUHD IR Remote pg. 8 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... - Page 9 Cable can provide a different receiver position. Just plug into the IR Extension Socket on the back of the matrix and place the receiver in a more convenient location. Figure 3 ~ AC-MX88-SUHD IR Controls Figure 4 ~ IR Extension Cable IR Setup Commands: pg.
-
Page 10: General Commands
AC-MX88-SUHD RS-232 Commands: The AC-MX88-SUHD can be controlled with RS-232 commands. Some configurations can only be done using these commands. We recommend using MyUART software (free) as it is very easy to use to send commands to the machine. The same commands can be sent to the matrix using Ethernet as IP commands... - Page 11 AC-MX88-SUHD Input & EDID Commands: NOTE: To see a connection diagram of how connect to the matrix using RS-232, see the connection diagram at the end of the manual. IP Set-Up Commands: IR Code Setup Commands: pg. 11 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
- Page 12 AC-MX88-SUHD Specifications: pg. 12 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 13: Safety Instructions
AC-MX88-SUHD Safety Instructions: To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. 1. Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. - Page 14 AC-MX88-SUHD RS-232 Wiring Diagram: pg. 14 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 15 AC-MX88-SUHD Audio Wiring Diagram: pg. 15 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 16 AC-MX88-SUHD Using the Free PC Software: General Matrix Control pg. 16 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 17 AC-MX88-SUHD Using the Free PC Software: EDID Management pg. 17 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5221 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 18 AC-MX88-SUHD Using the Free PC Software: IP Settings pg. 18 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 19 AC-MX88-SUHD NOTES________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ pg. 19 AVProConnect ~ 3518 N Casco Ave.
- Page 20 AC-MX88-SUHD Thank you for choosing AVProConnect! Please contact us with any questions, we are happily at your service! AVProConnect 3518 N Casco A ve nue ~ Sioux F a lls , SD 57104 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 605-274 -6 05 5 pg.
